Installation Procedure

  1. Remove all mounds or loose pieces of urethane adhesive from the pinch-weld area.
  2. If the original windshield is being reused, remove all but approximately 2 mm (3/64 in) of the existing bead of urethane adhesive from the pinch-weld flange surface and windshield by using a clean utility knife or razor blade scraper.
  3. Inspect for any of the following problems in order to help prevent future breakage of the windshield:
    • High weld
    • Solder spots
    • Hardened sealer
    • Any other obstruction or irregularity in the pinch-weld flange
    4. NOTE:

    If corrosion of the pinch-weld flange is present or if sheet metal repairs or replacements are required, the pinch-weld flange must be refinished in order to restore the bonding area strength. If paint repairs are required, mask the flange bonding area prior to applying the color coat in order to provide a clean primer only surface. Materials such as BASF DE15®, DuPont 2610®, Sherwin-Williams PSE 4600 and NP70® and Martin-Semour 5120 and 5130® PPG DP90LF SPIES/HECKER 3688/8590 - 3688/5150 - 4070/5090 STANDOX 11158/13320 - 14653/14980 products are approved for this application.

  4. After repairing the opening as indicated, perform the following steps:
    1. Remove all traces of broken glass from the outer cowl panel, seats, floor, and defroster ducts.
    2. Clean around the edge of the inside surface of the windshield with a 50/50 mixture of isopropyl alcohol and water by volume on a dampened lint free cloth.
  5. Verify all primers and urethane adhesive are within expiration dates.
    6. WARNING:

    Failure to prep the area prior to the application of primer may cause insufficient bonding of urethane adhesive. Insufficient bonding of urethane adhesive may allow unrestrained occupants to be ejected from the vehicle resulting in personal injury.

    NOTE:

    Do not apply the black primer to the existing bead of the urethane adhesive on the pinch-weld flange. Apply the primer only to nicks, scratches, or the primed surfaces.

  6. Shake the pinch-weld primer black for at least 1 minute.
  7. Use a new dauber in order to apply the primer to the surface of the pinch-weld flange.
  8. Allow the pinch-weld primer to dry for approximately 10 minutes.
  9. With an assistant, dry fit the windshield to the opening in order to determine the correct position.
  10. If equipped, ensure that the windshield locator pins are positioned into the locator slots on the upper pinch-weld flange.

    Ensure that the windshield spacers stay in place when removing the windshield.

  11. Use masking tape in order to mark the locations of the windshield in the opening.
  12. Cut the masking tape in the center and remove the windshield from the opening.
    13. NOTE:

    Use care when applying glass prep clear on the windshield. This primer dries almost instantly, and may stain the viewing area of the windshield if not applied evenly.

  13. Use a new dauber in order to apply glass prep clear to the area approximately 18 mm (0.71 in) around the entire perimeter of the windshield inner surface.

    Immediately wipe the glass primed area using a clean, lint-free cloth.

  14. Apply a second coat of the glass prep clear to the same area of the glass.
    15. NOTE:

    The glass primer black is effective up to 8 hours after applying it to the glass. The primed surface of the glass must be kept clean.

  15. Shake the glass primer black for at least 1 minute.
  16. Use a new dauber in order to apply the glass primer black to the same areas that glass prep clear was applied.
  17. Allow the glass primer to dry for approximately 10 minutes.
  18. Use a urethane adhesive systems which meet GM Specification GMW-3041
  19. Cut the applicator nozzle in order to provide a minimum urethane bead of 8mm wide and 10mm high.
  20. Use a cartridge-type caulking gun in order to apply a smooth, continuous bead of urethane adhesive.
  21. Use the edge of the windshield as a guide for the nozzle in order to apply the urethane adhesive to the inner surface of the windshield.

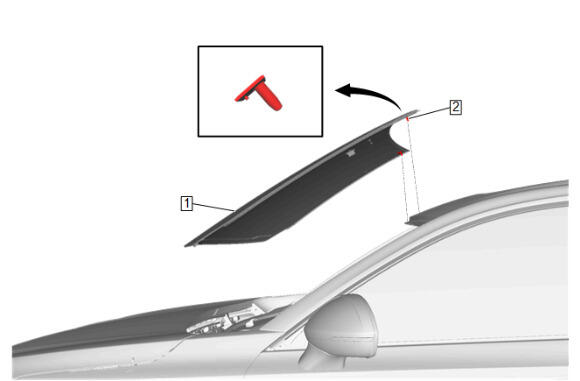

  22. GM6377935Courtesy of GENERAL MOTORS COMPANY

    With an assistant, install the locator pins (2) and the windshield (1) in the opening.

  23. Align the masking tape lines on the windshield and the body.
    24. NOTE:

    To prevent damage to the windshield due to objects impacting an exposed edge, upon installation, the windshield must rest 1 mm (0.04 in) below the surface of the sheet metal.

  24. Press firmly around the entire periphery of the windshield in order to wet-out the urethane bead.
  25. Tape the windshield to the body in order to minimize movement until the urethane adhesive cures.
  26. Clean any excess urethane adhesive from the body.
    27. NOTE:

    Do not direct a hard stream of high pressure water to the freshly applied urethane adhesive.

  27. Use a soft spray of warm water in order to immediately water test the windshield.
  28. Inspect the windshield for leaks.
  29. If any leaks are found, use a plastic paddle in order to apply extra urethane adhesive at the leak point.
  30. Retest the windshield for leaks.
    31. WARNING:

    Insufficient curing of urethane adhesive may allow unrestrained occupants to be ejected from the vehicle resulting in personal injury.

    • For the moisture-curing type of urethane adhesive, allow a minimum of 6 hours at 21°C (70°F) or greater and with at least 30 percent relative humidity. Allow at least 24 hours for the complete curing of the urethane adhesive.
    • For the chemical-curing type of urethane adhesive, allow a minimum of 1 hour.

    Do NOT physically disturb the repair area until after these minimum times have elapsed.

  31. Maintain the following conditions in order to properly cure the urethane adhesive:
    • Partially lower a door window in order to prevent pressure buildups when closing doors before the urethane adhesive cures.
    • Do not drive the vehicle until the urethane adhesive is cured. Refer to the above curing times.
    • Do not use compressed air in order to dry the urethane adhesive.
    32. NOTE:

    Note: If vehicle is equipped with a front camera sensor for Driver Assistance Systems, the system may not work properly or at all do to low windshield caused by missing locating pins.

  32. Excessive wind-noise may occur if the windshield is higher than the sheet metal due to the following conditions:
    • Old urethane adhesive bead not being cut low enough and is left excessively thick.
    • Windshield alignment/locating pin(s) are not fully in the alignment hole(s).
    • Windshield not being firmly pressed around the entire outside edge to wet-out the urethane adhesive bead during installation.
    • Urethane adhesive bead drying before windshield was installed.
  33. Complete the windshield installation.
  34. Front View Driver Information Camera Bracket - Install - Front View Driver Information Camera Bracket Replacement
  35. Windshield Garnish Molding - Install - Windshield Garnish Molding Replacement
  36. Air Inlet Grille Panel - Install - Air Inlet Grille Panel Replacement
  37. Enable the SIR System. SIR Disabling and Enabling
  38. Perform the camera calibration procedure. Front View Camera - Windshield Learn
