ROCHESTER Carburetors: Adjustment: Unloader

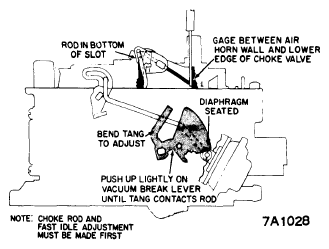

With choke valve held closed by a rubber band on vacuum break lever, open primary throttle to wide open position. With valves held open, dimension between lower edge of choke valve and air horn wall should be as specified in table. Bend tang on fast idle lever to adjust.
