Electrical Tests

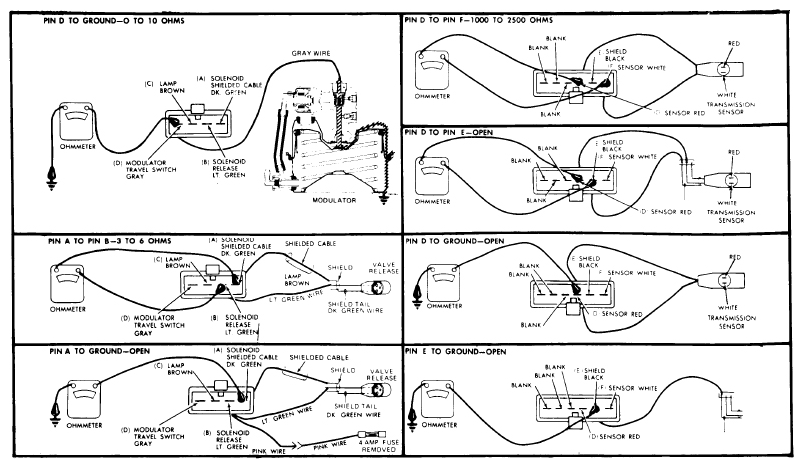

Resistance and continuity checks are made at harness connectors with controller disconnected, and power lead disconnected at in-line fuse. Ohmmeter must be calibrated to scale in each test and readings should be equivalent to those indicated in Figure .
