Home >> Cadillac >> 1982 >> Seville V6-252 4.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Ignition Controls

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

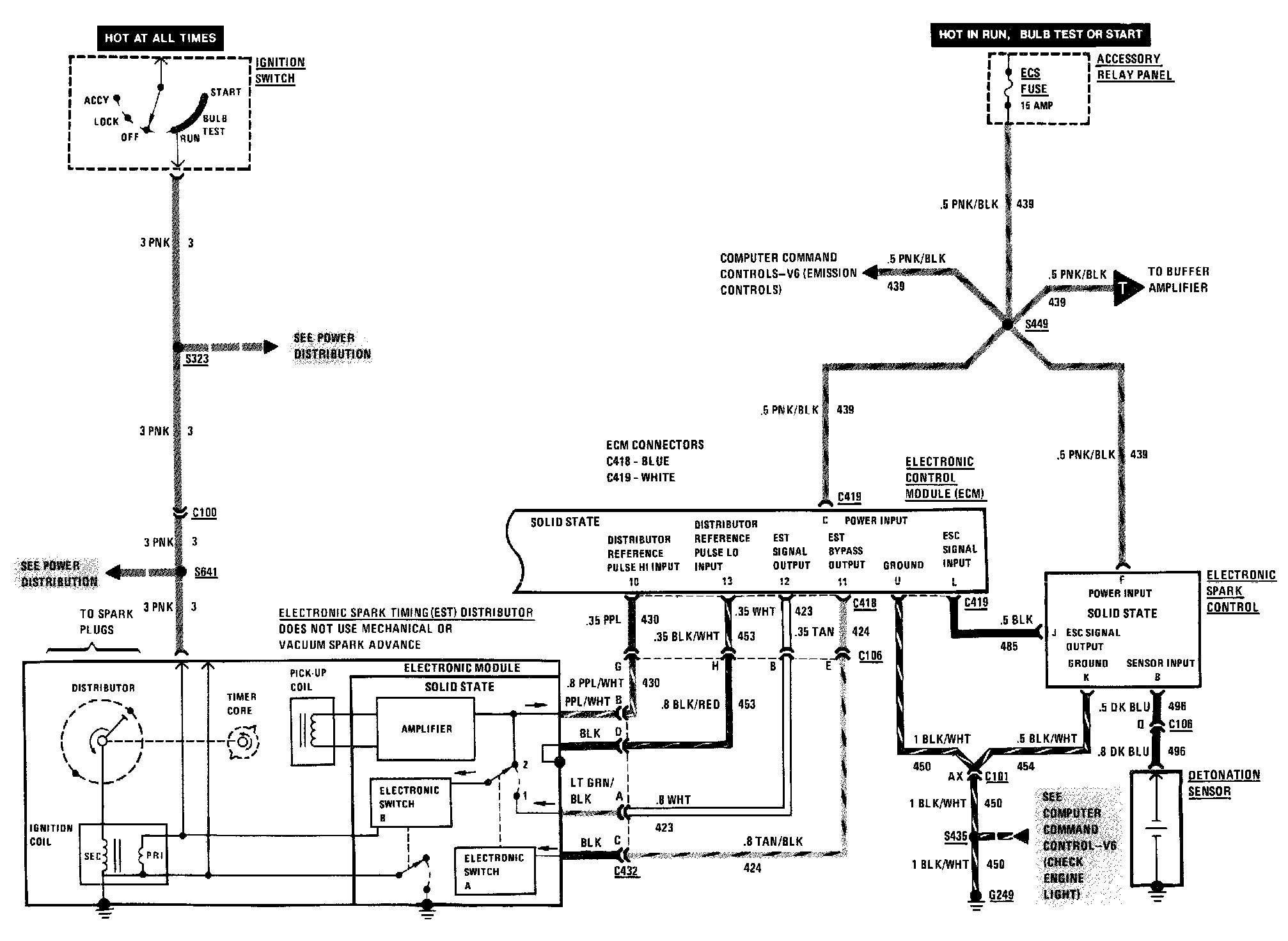

Ignition Controls
