Cold Start Switch

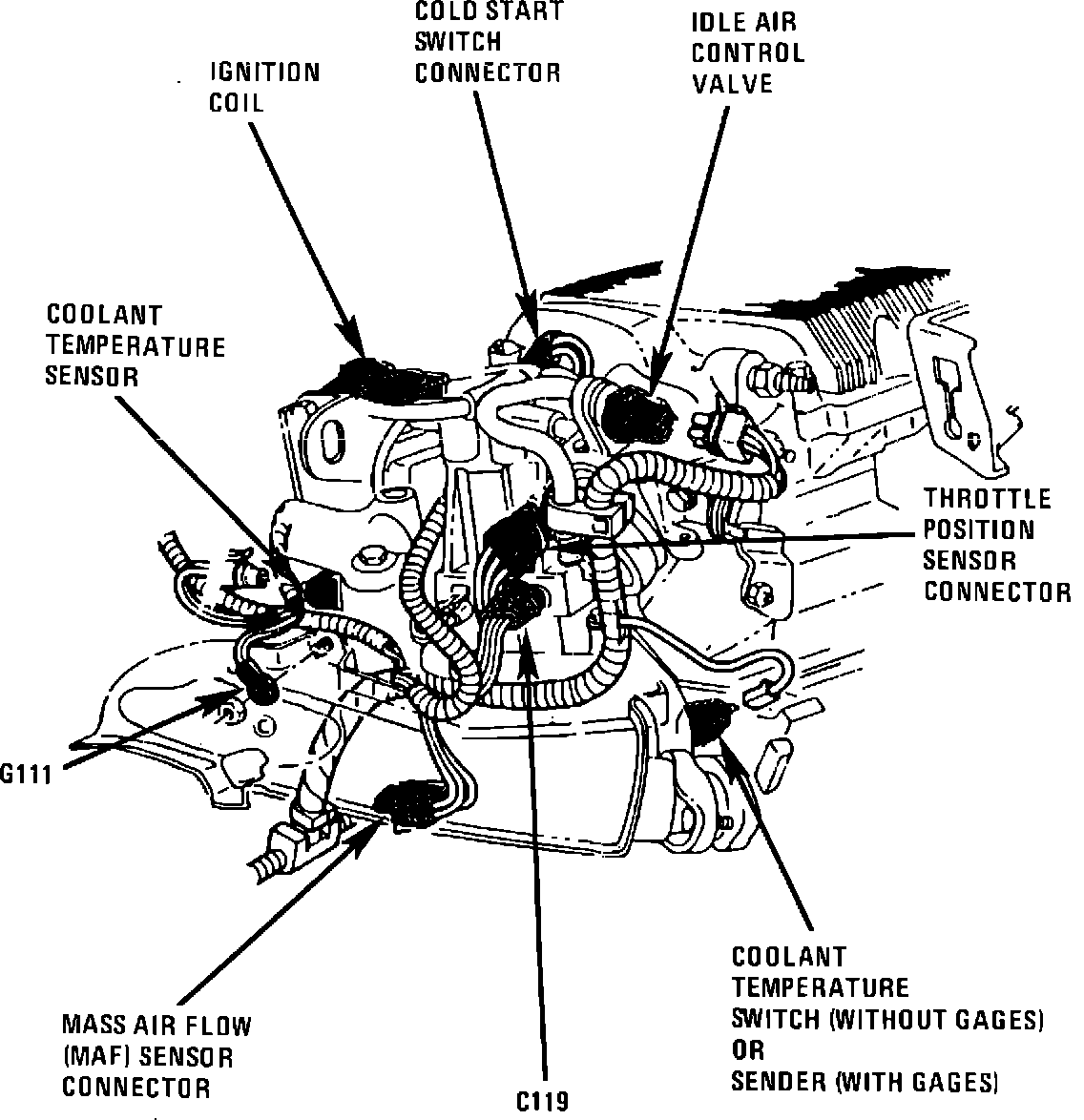

Top RH Rear Of Engine.:




Rear Of Engine

Applicable to: 1985 V6-173/2.8L Engine

Upper Rear Of Engine.:




Rear Of Engine

Applicable to: 1985 Cavalier, Cimarron & Firenza V6-173/2.8L Engine
