Computers and Control Systems: Locations

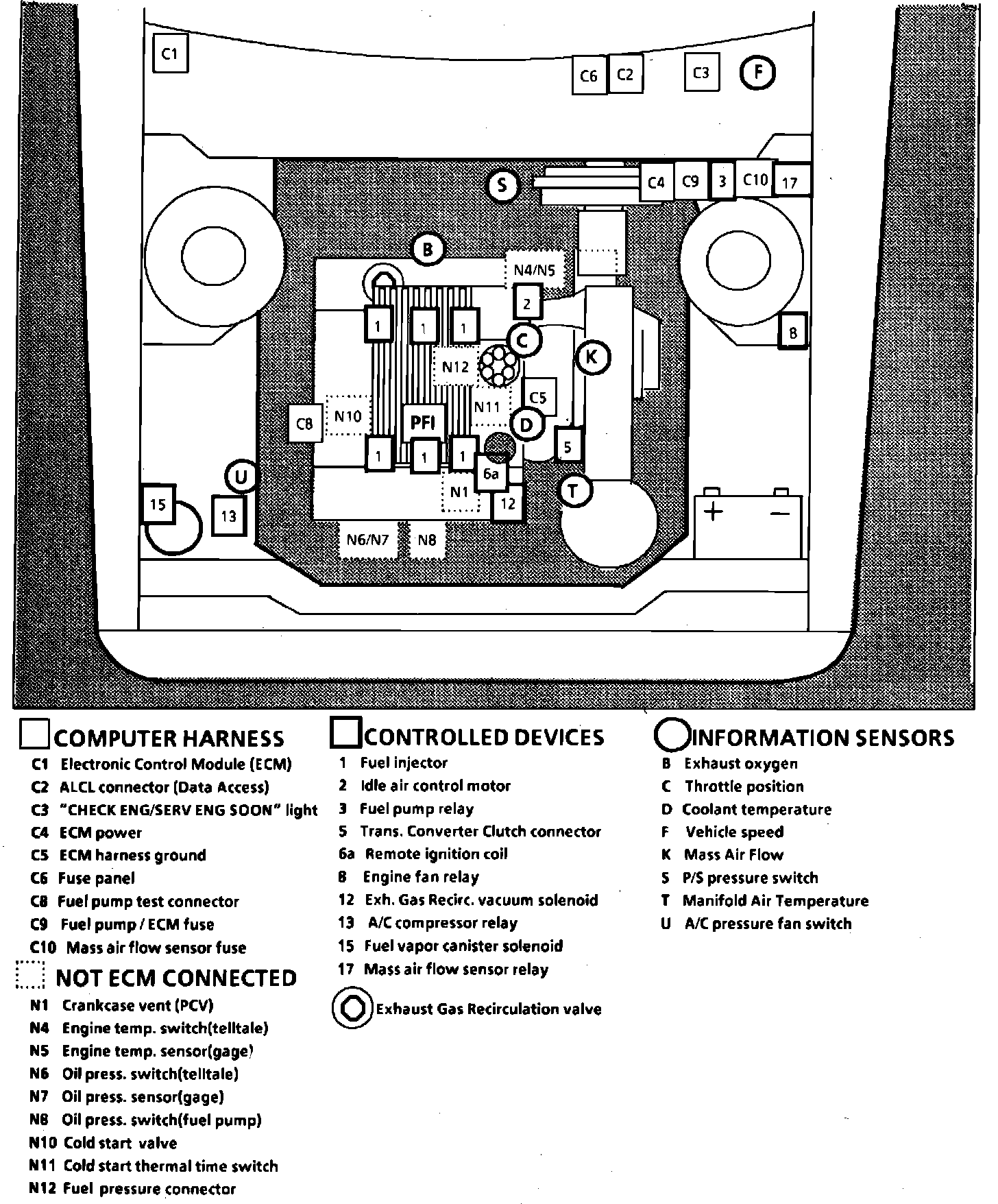

Fig. 19 Emission Component Location. 1985 Cimarron W/V6-173/2.8L, PFI:
