Emission Control Systems: Locations

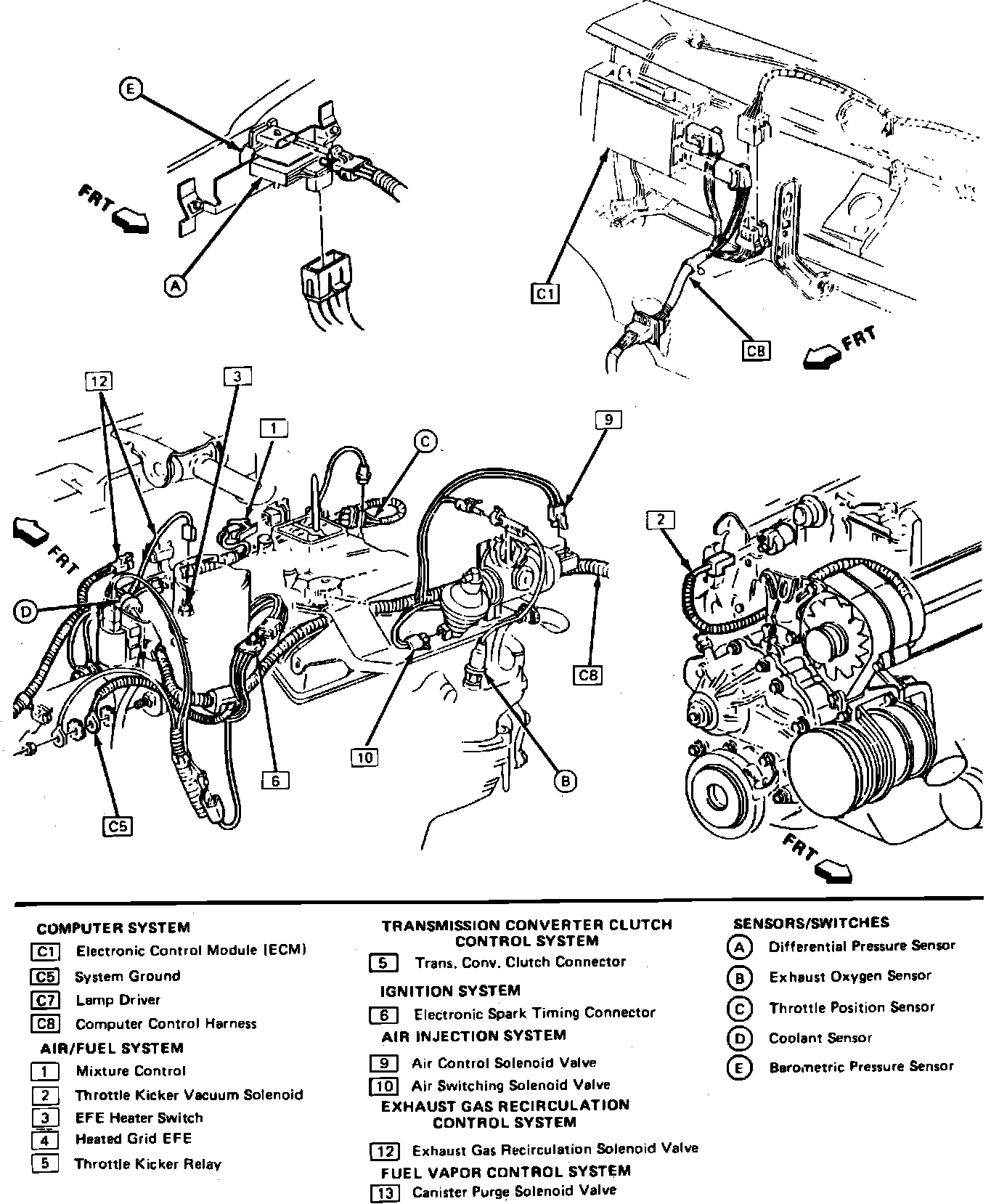

Fig. 38a Emission Component Location. 1985-86 Models W/V6-173/2.8L, 2 Bbl. (Part 1 of 2):

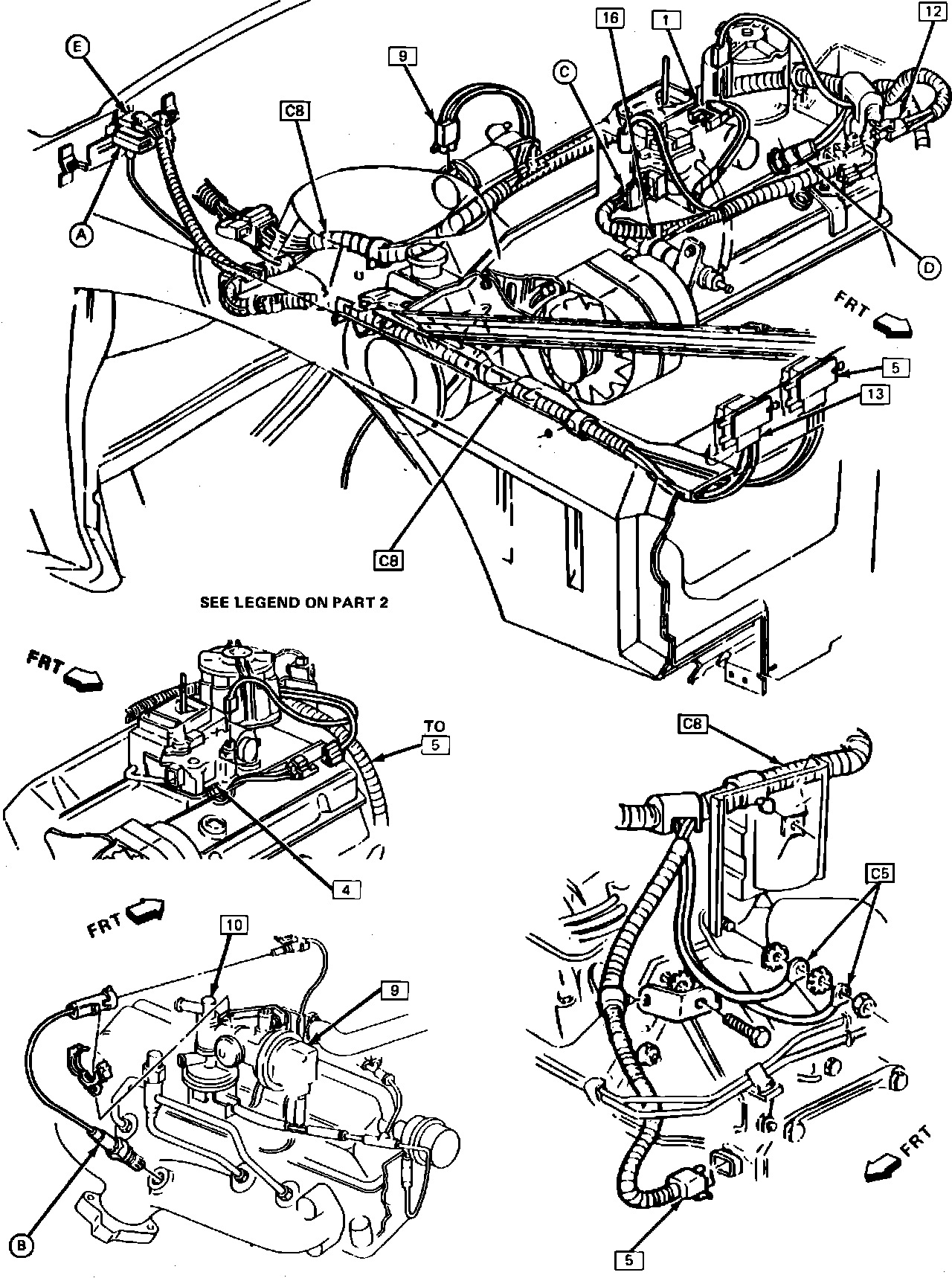

Fig. 38b Emission Component Location. 1985-86 Models W/V6-173/2.8L, 2 Bbl. (Part 2 of 2):
