System Specifications

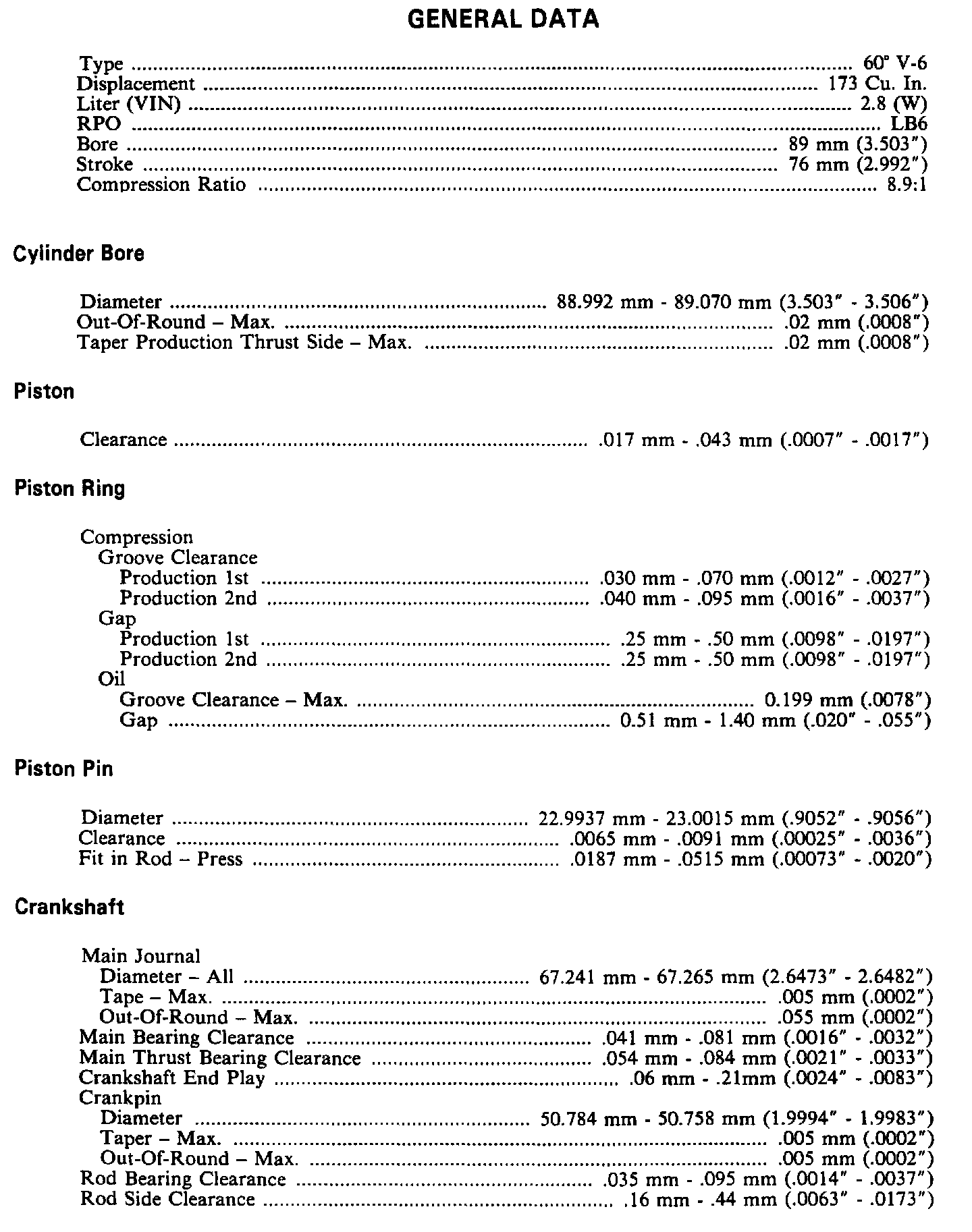

Engine Specifications:

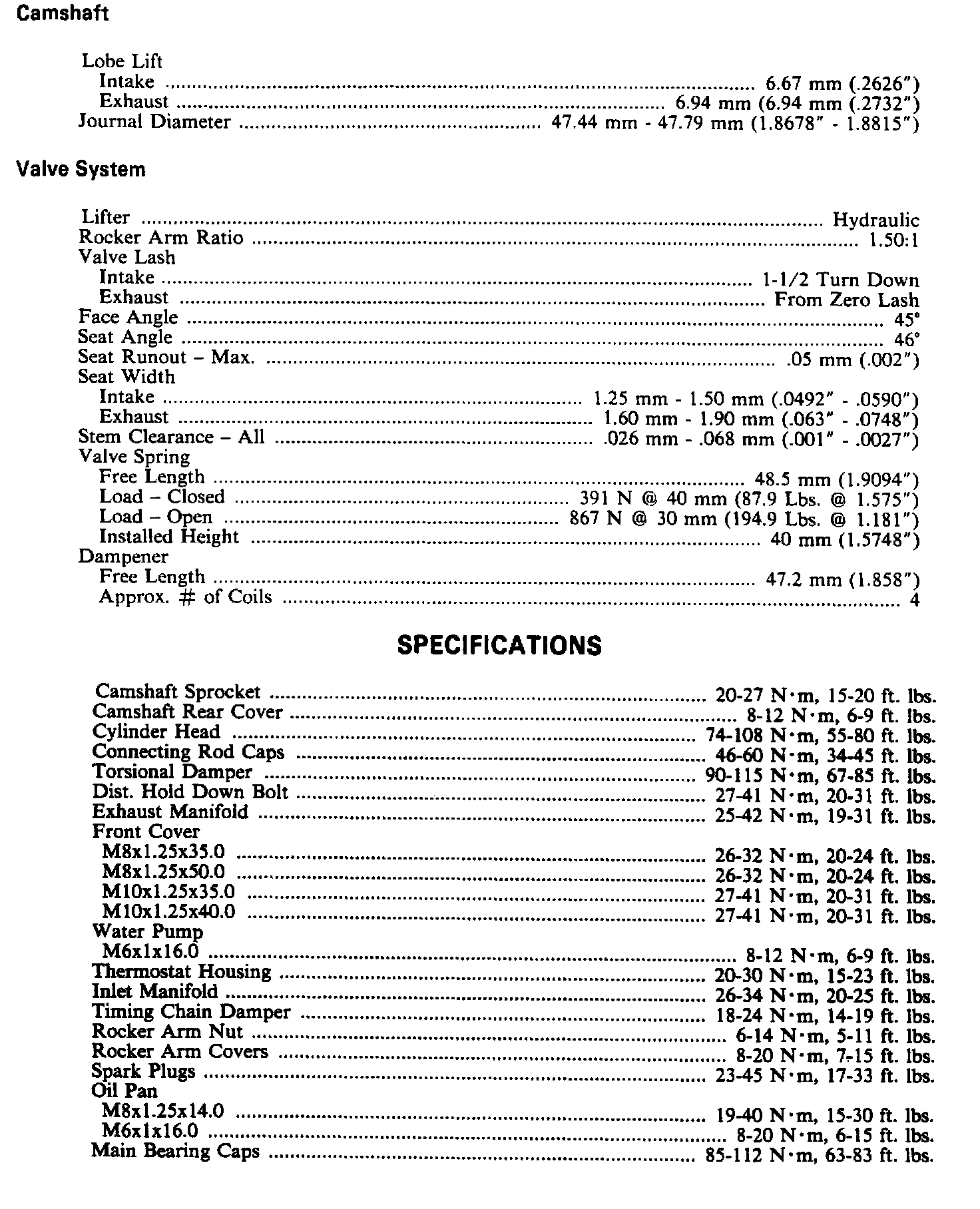

Continued Engine & Torque Specifications:

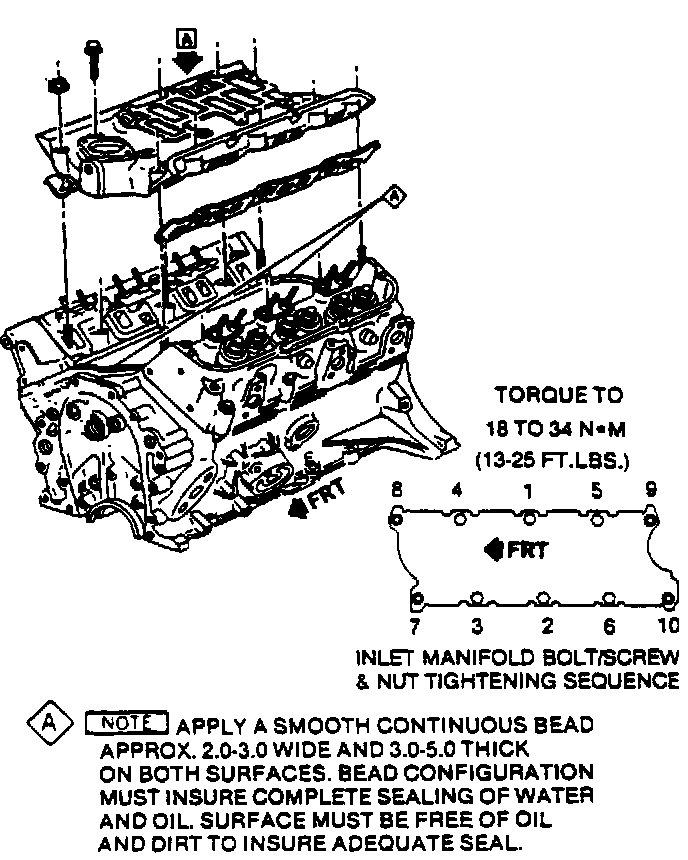

Intake Manifold Sequence:

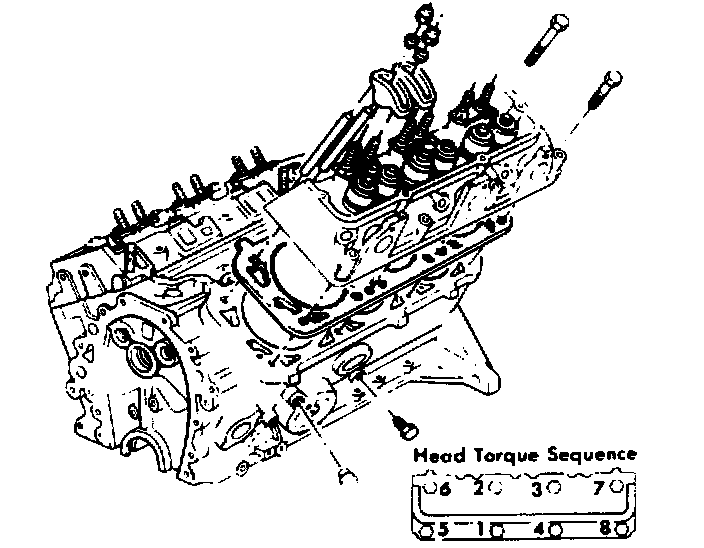

Cylinder Head Sequence:
