Fuse Block: Locations

PART 1

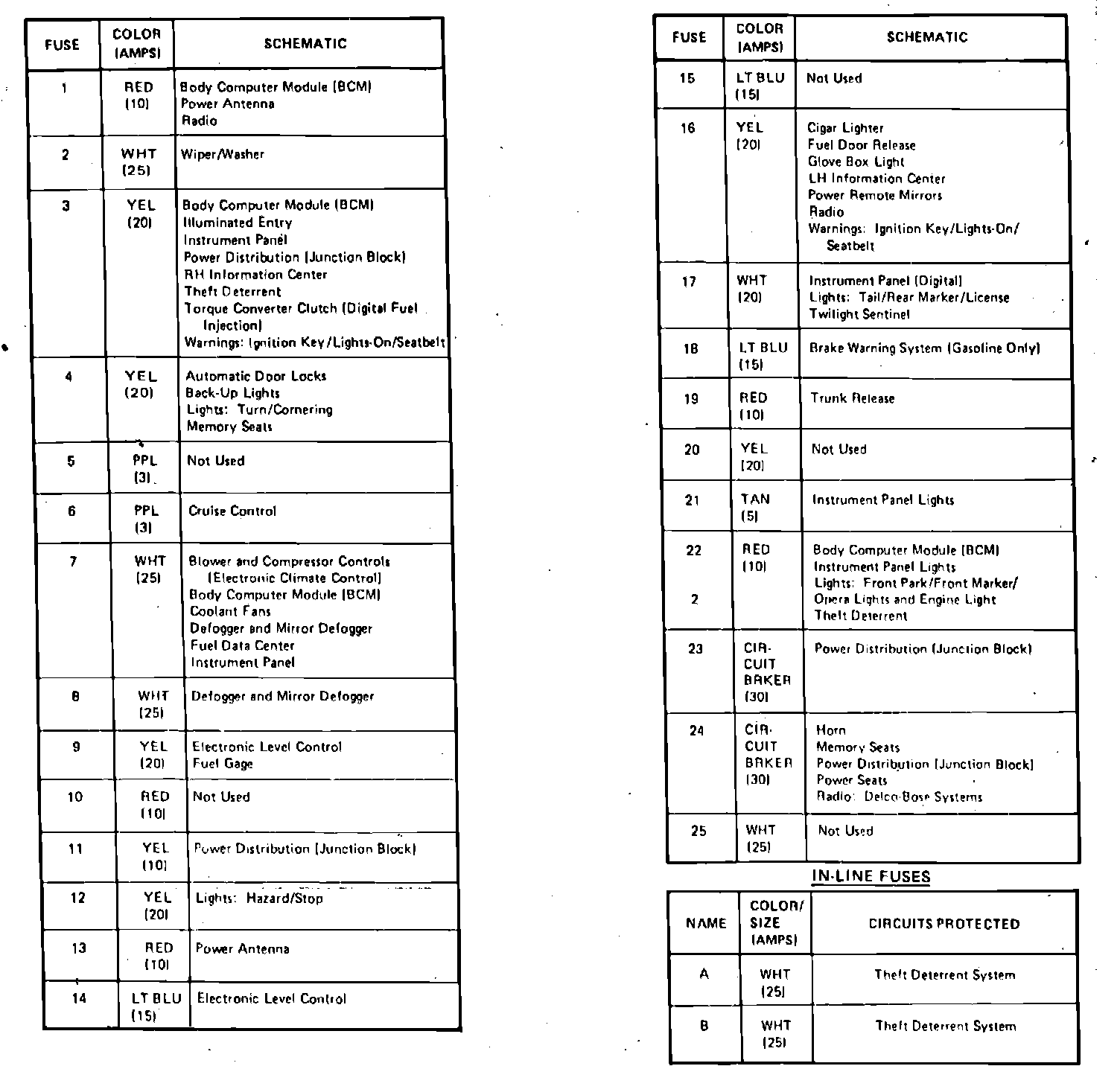

Fuse Panel:






PART 2

Fuse Panel:







The Fuse Panel is located beneath the instrument panel, left of the steering column.
