Note On INTERMITTENTS

If intermittent code is being set, manipulate related wiring while observing "REAR DEFOG" light on CCP panel for 4th gear circuitry or manipulate related wiring while observing "SERVICE SOON" light (out of diagnostic mode) to verify operation of 3rd gear circuitry. This will help to isolate location of malfunction.

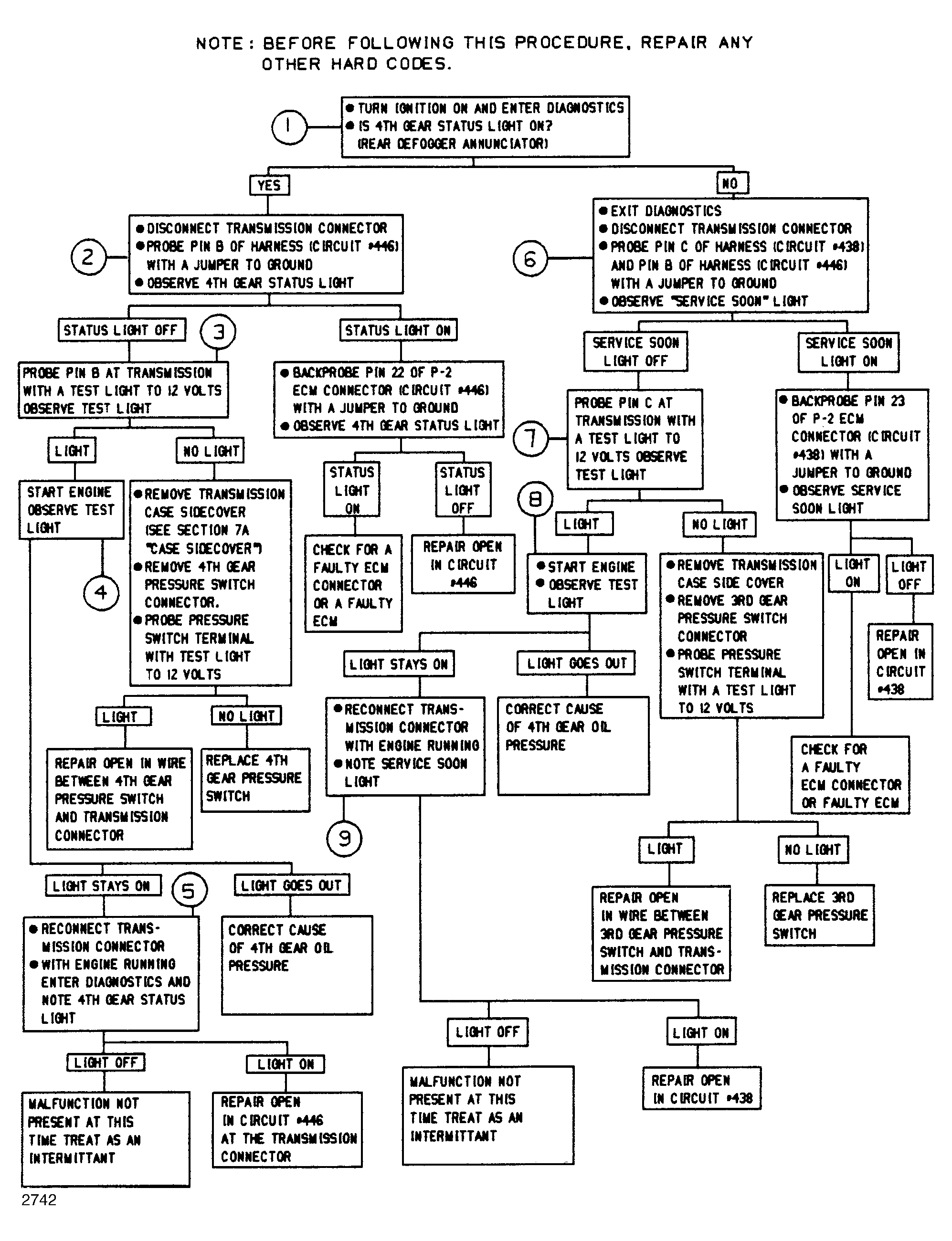

Fig 1: Hard Trouble Code E28

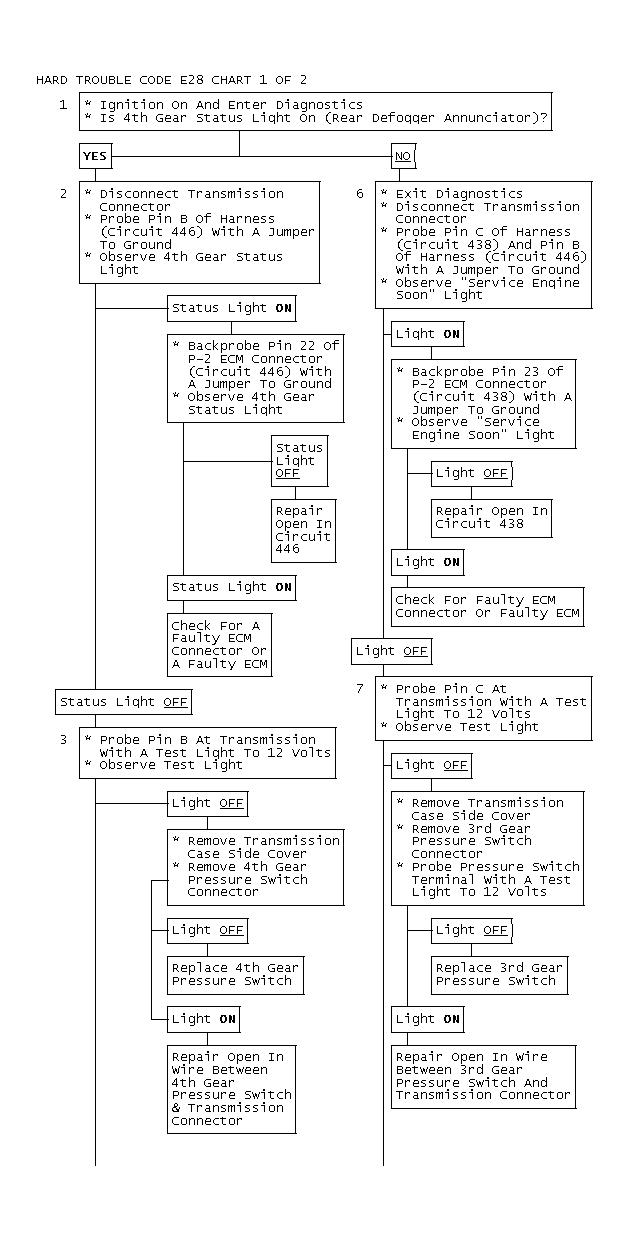

Fig 2: Hard Trouble Code E28 Chart 1 Of 2

Fig 3: Hard Trouble Code E28 Chart 2 Of 2
