Diode Array Module: Removal
- Remove driver's side sound insulator panel.

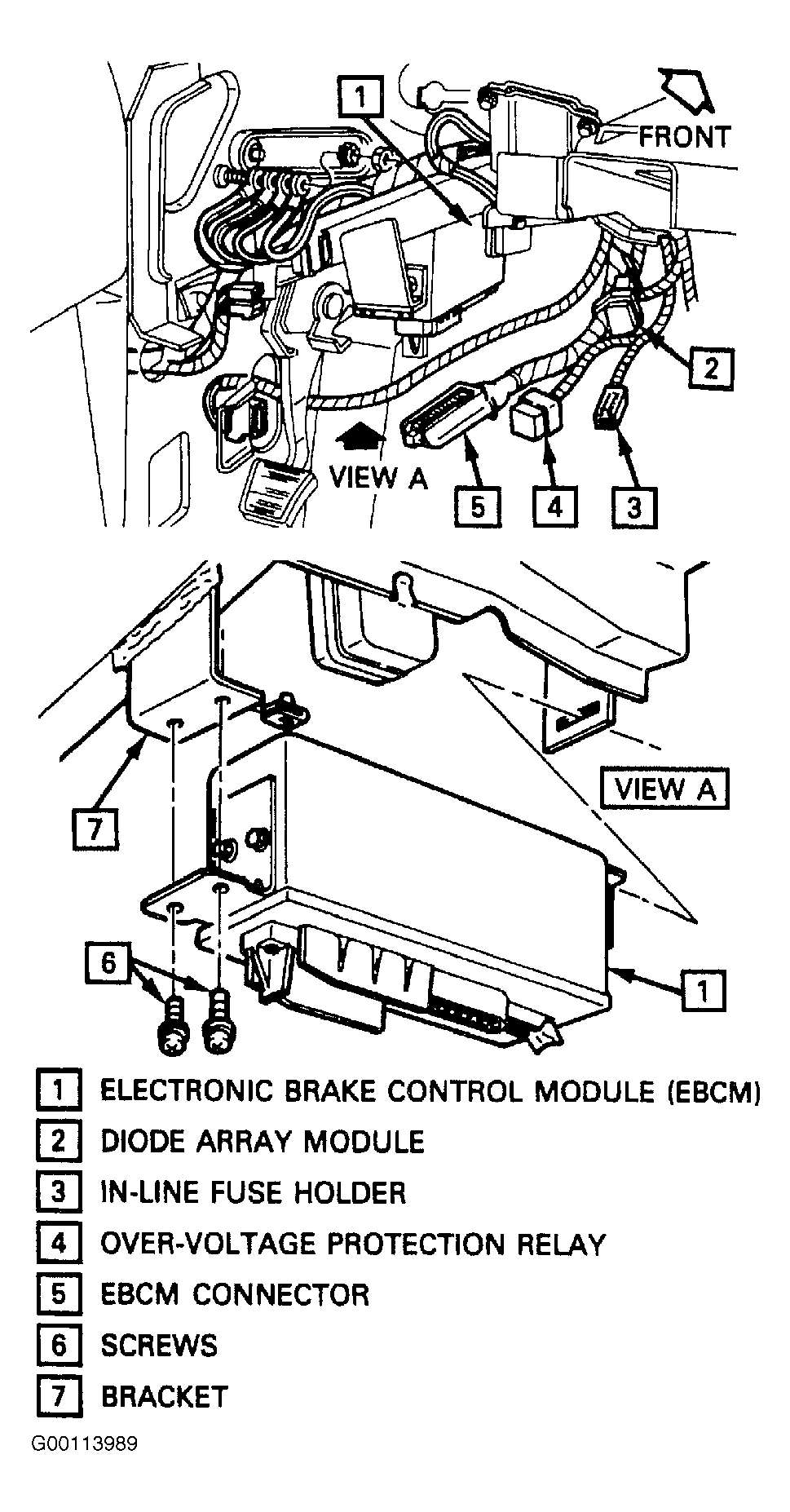

- Locate diode array module. See Figure .
- Using fingers or a small screwdriver to disengage locking tabs, open the hinged end of the plastic holder.
- Grasp the printed circuit board and remove from the holder by pulling it outward through the hinged opening.
