Generator Test & Reassembly

For generator component tests, refer to illustrations. See Fig 1 , Fig 2 and Fig 3 .

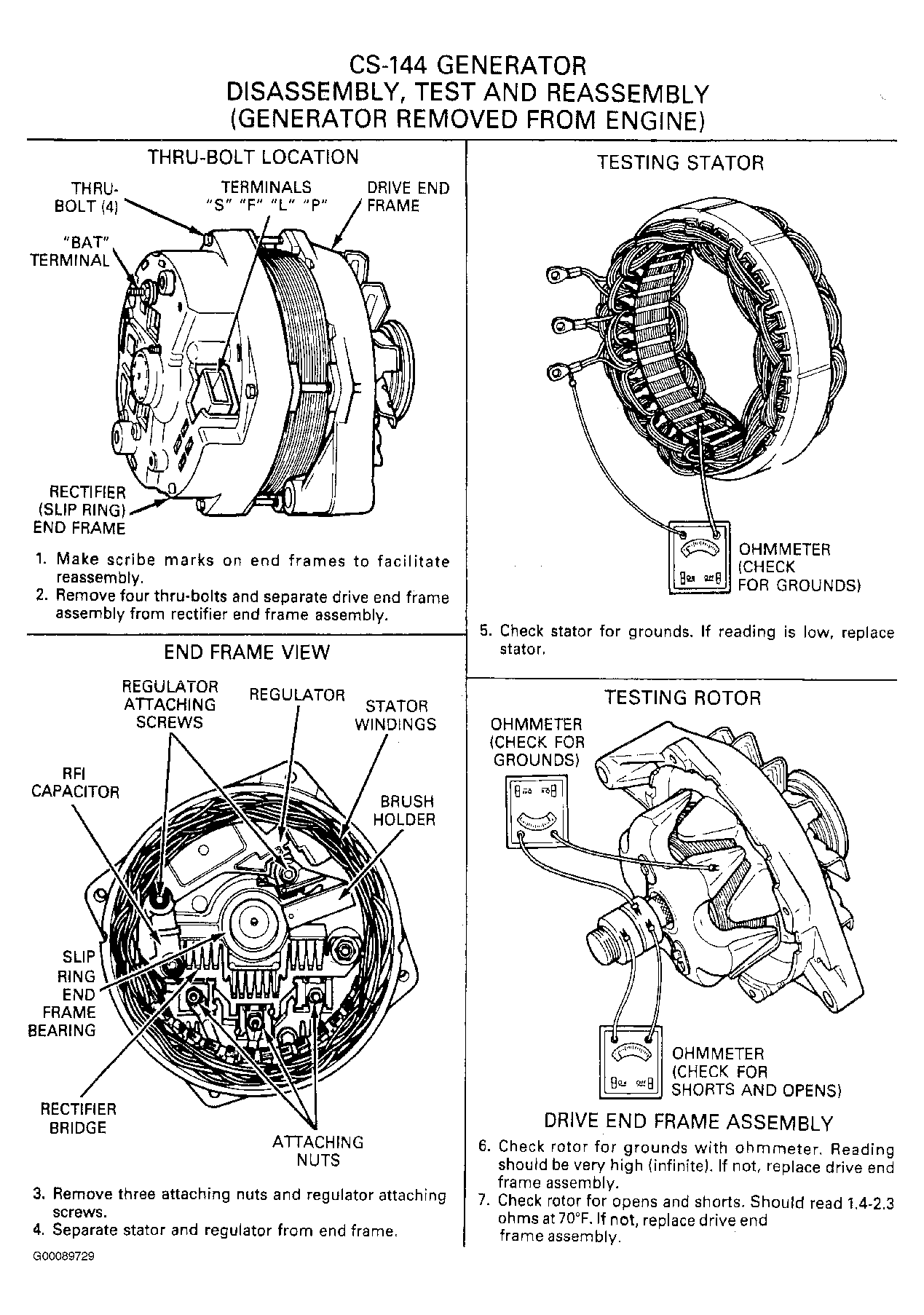

Fig 1: Testing Generator Components (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

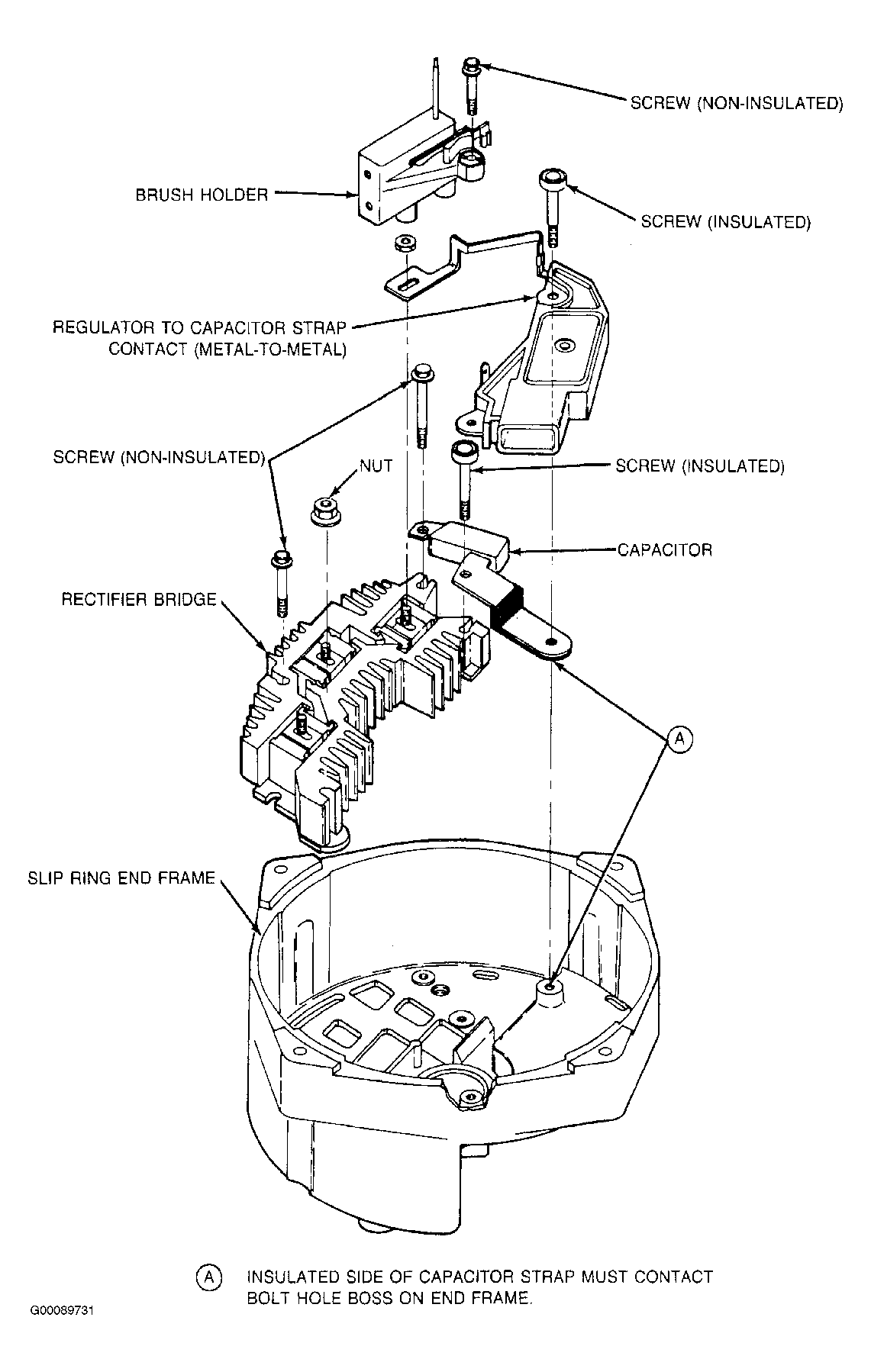

Fig 2: Testing Generator Components (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

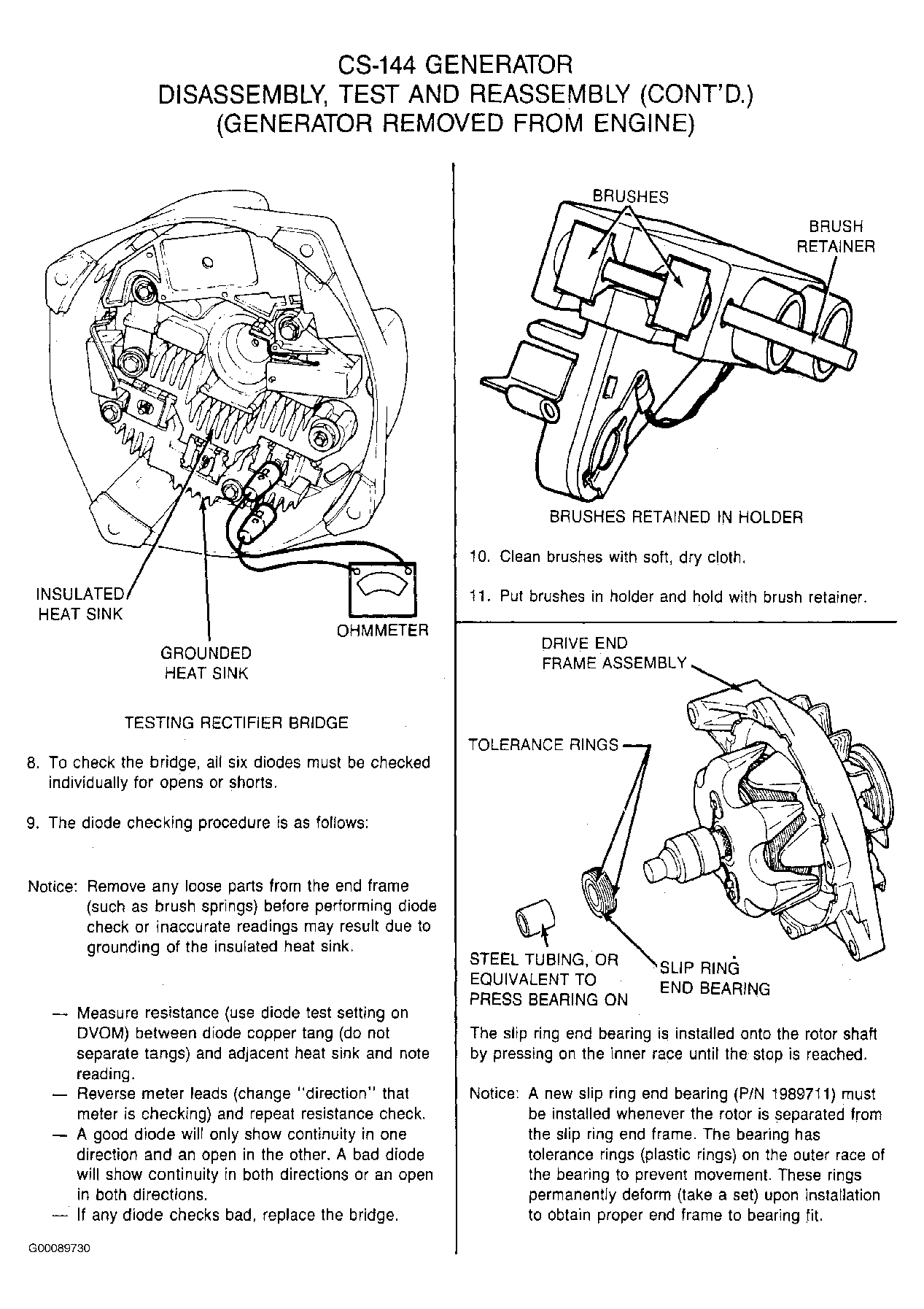

Fig 3: Testing Generator Components (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
