Lighting System Check

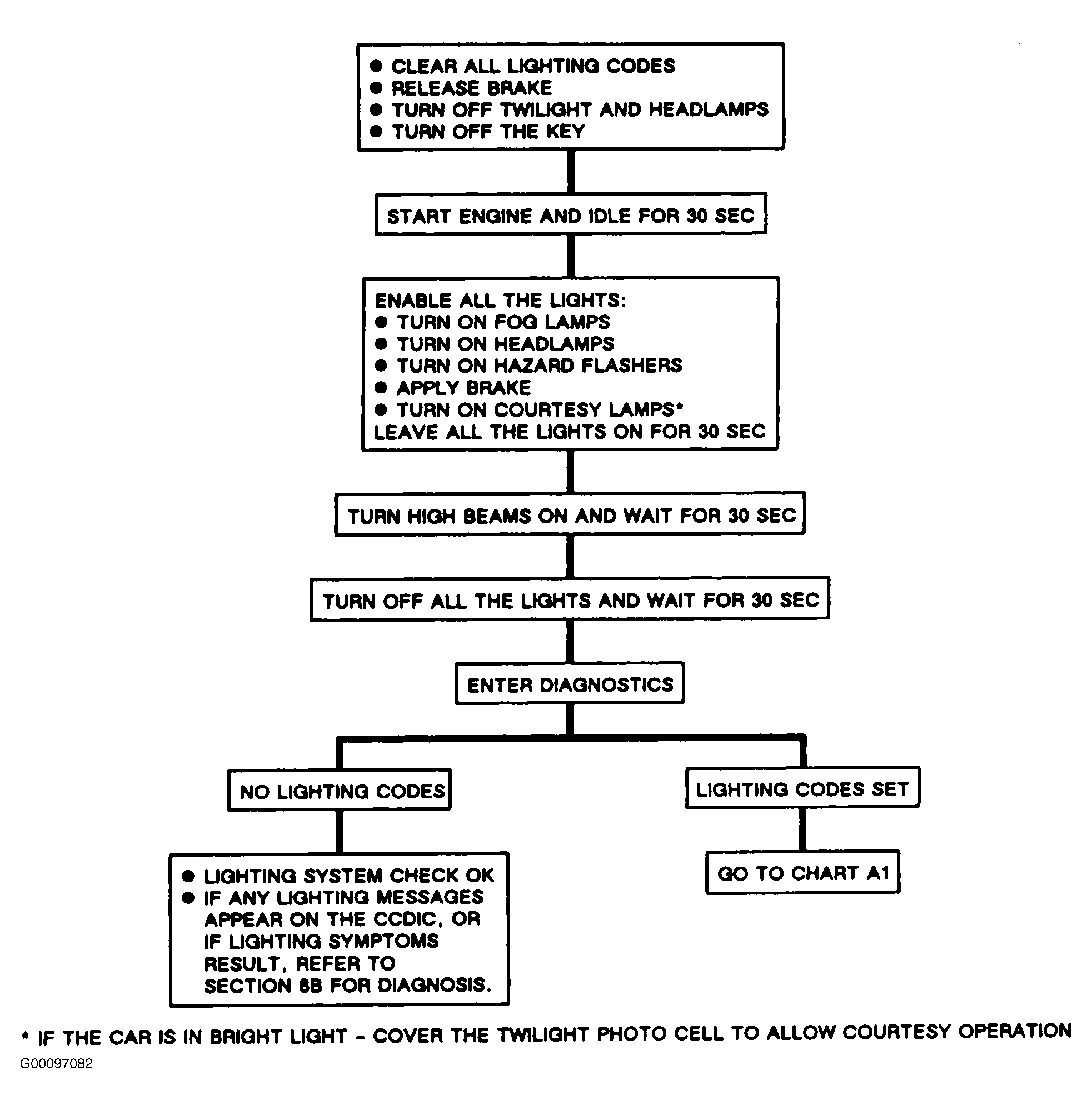

Fig 1: Lighting System Check Sequence Flow Chart
Courtesy of FREIGHTLINER CORP.
Courtesy of FREIGHTLINER CORP.
