Steering Columns: Overhaul

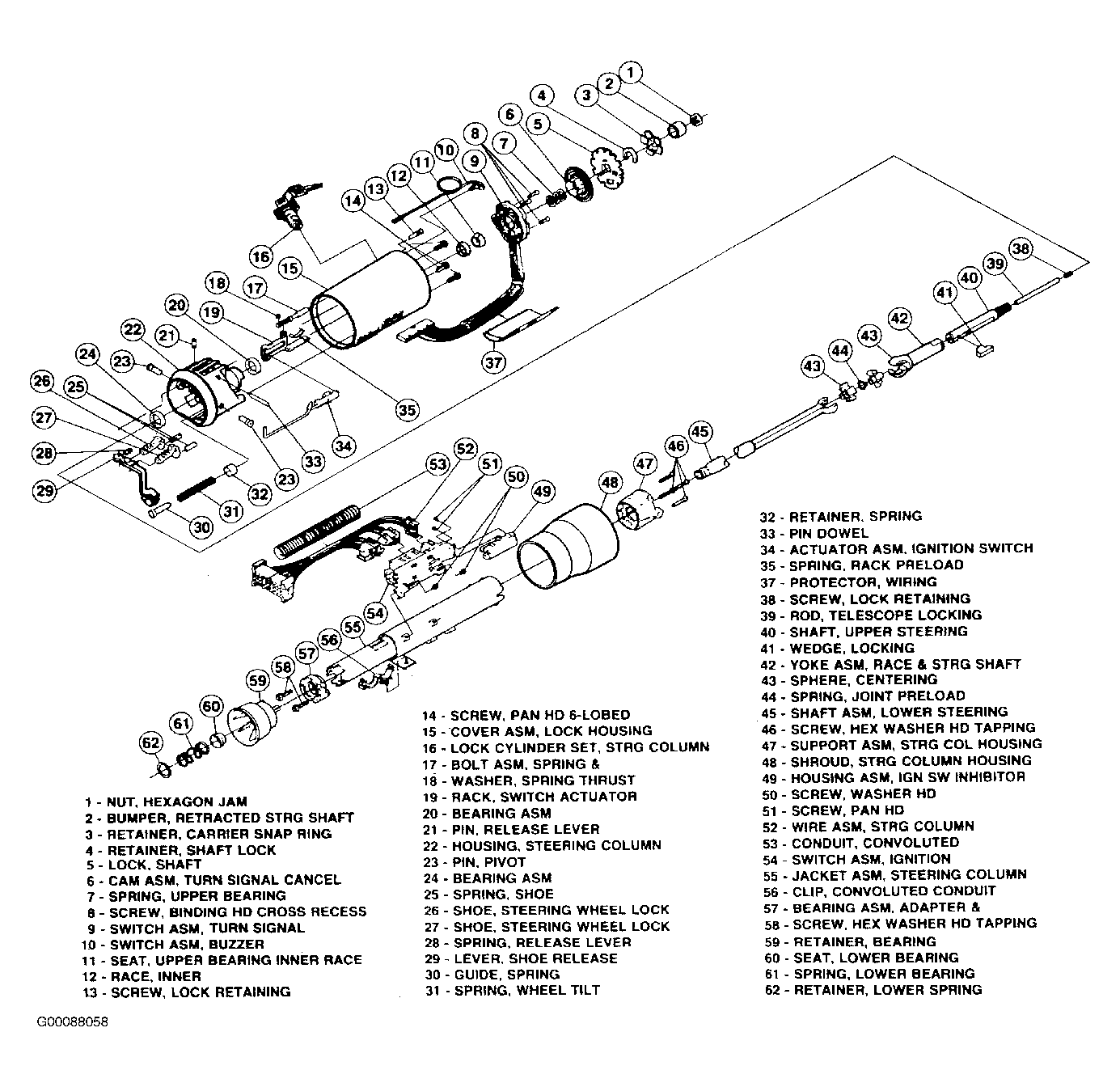

Fig 1: Exploded View Of Steering Column

G00088058

Courtesy of GENERAL MOTORS CORP.
