Interior Lighting Module
>>
Pinout By Cavity
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Pinout By Cavity

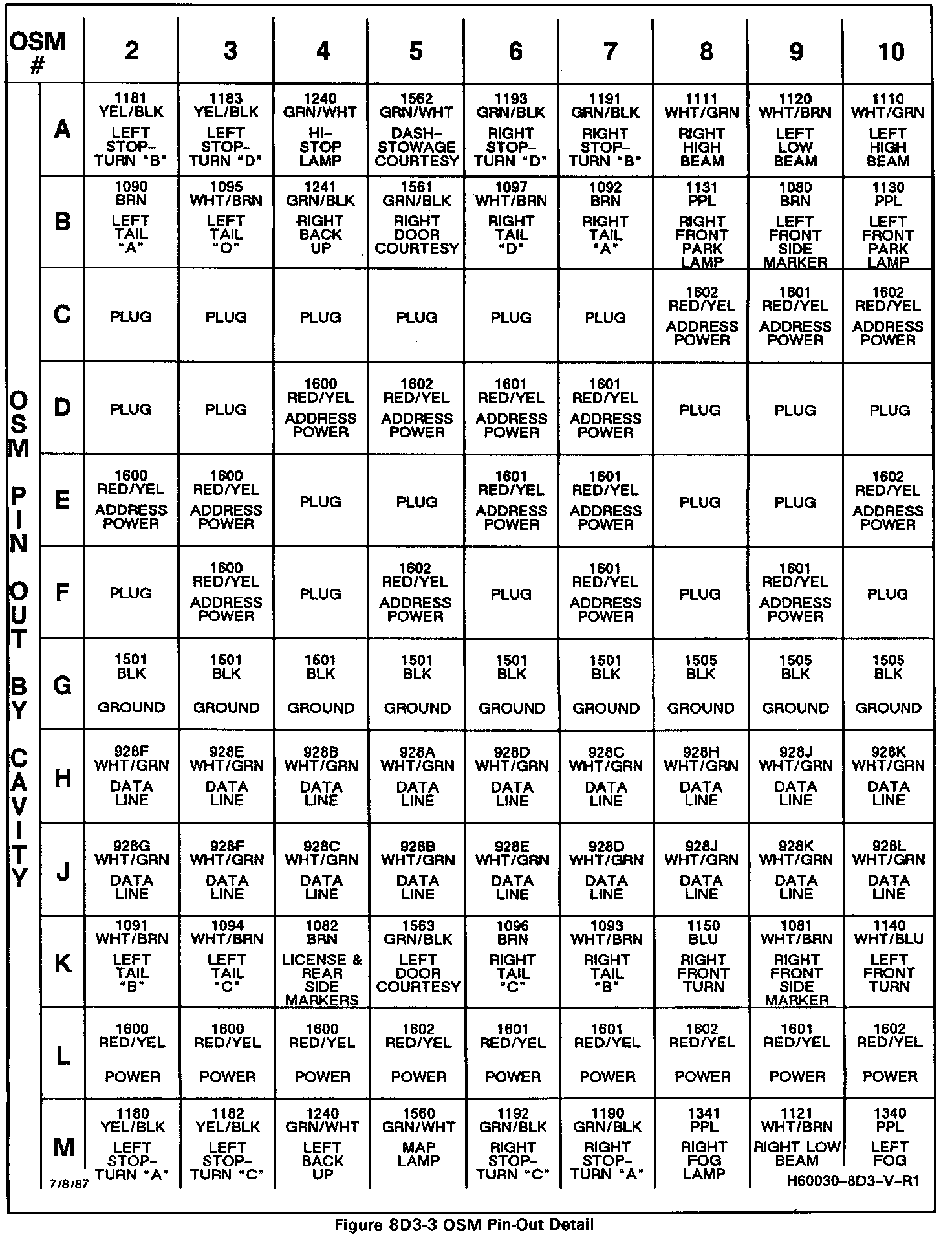

Figure 8D3-3 OSM Usage Table:
