Brake Switch (Cruise Control): Testing and Inspection

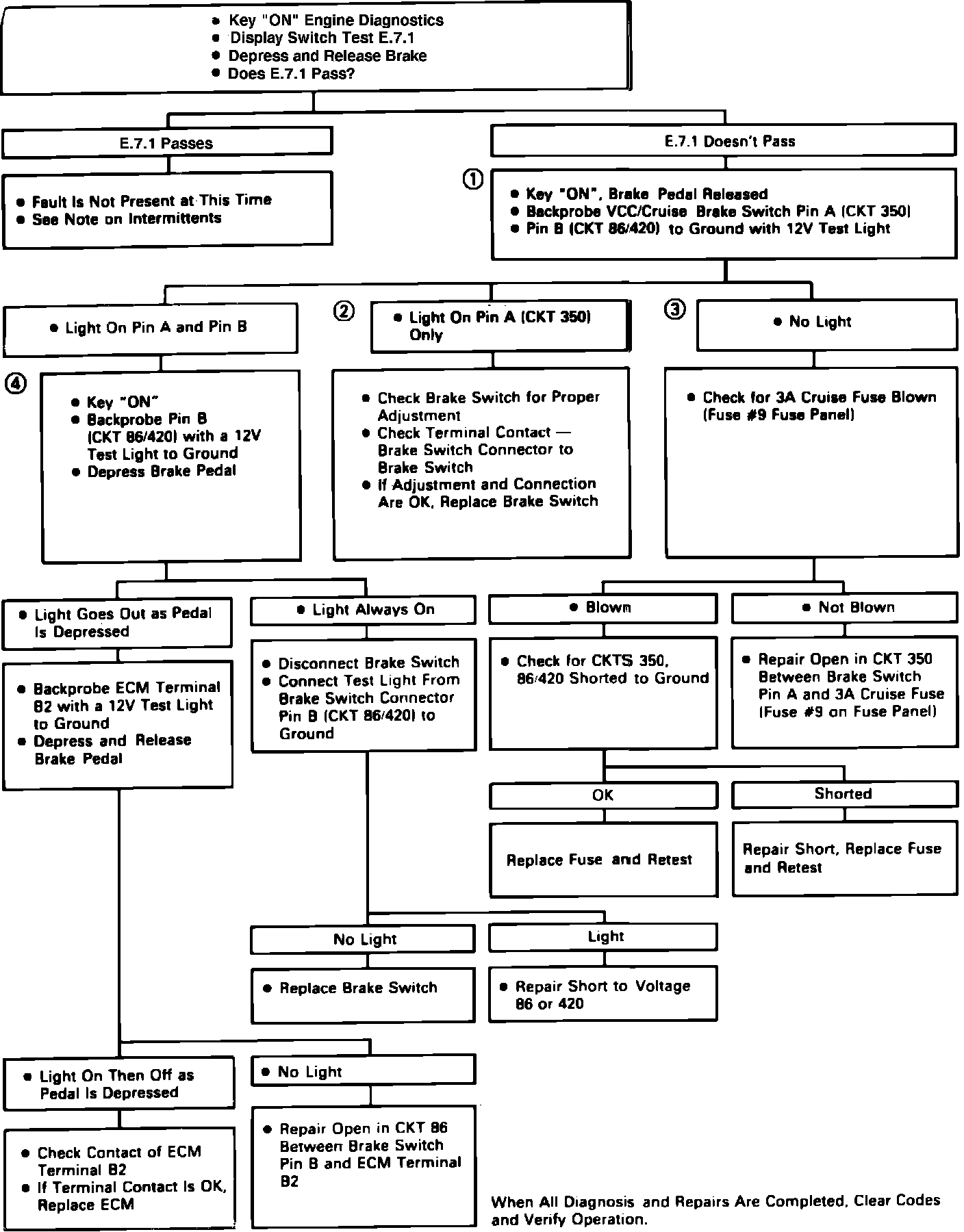

Fig. 77 ECM Input E.7.1 Diagnosis (VCC Brake Switch):
