Refrigerant Low Side Temperature Sensor

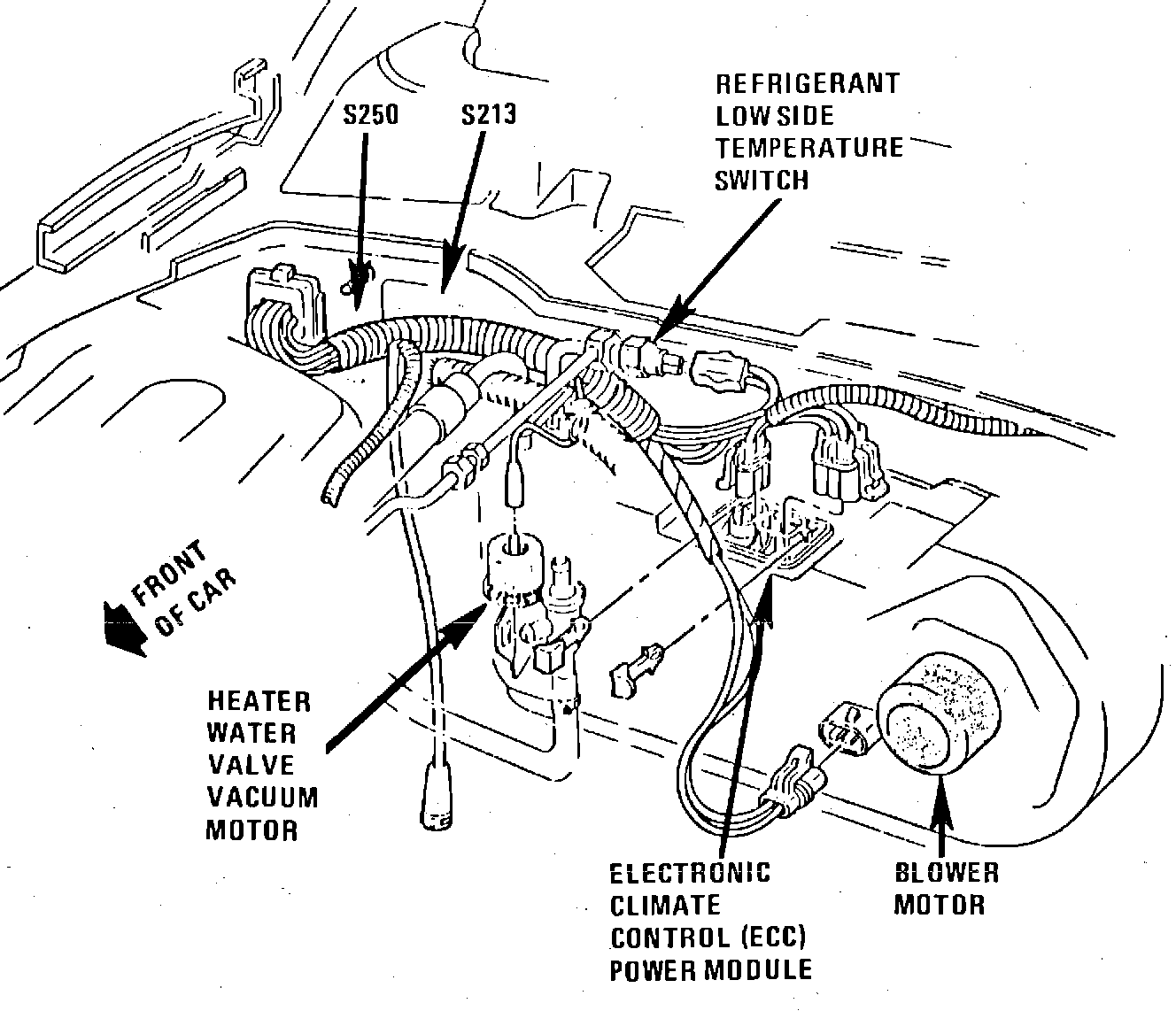

RH Front Of Dash:




Engine Compartment, RH Front Of Dash

Applicable to: 1987 DeVille & Fleetwood
