Body Control Module (BCM)

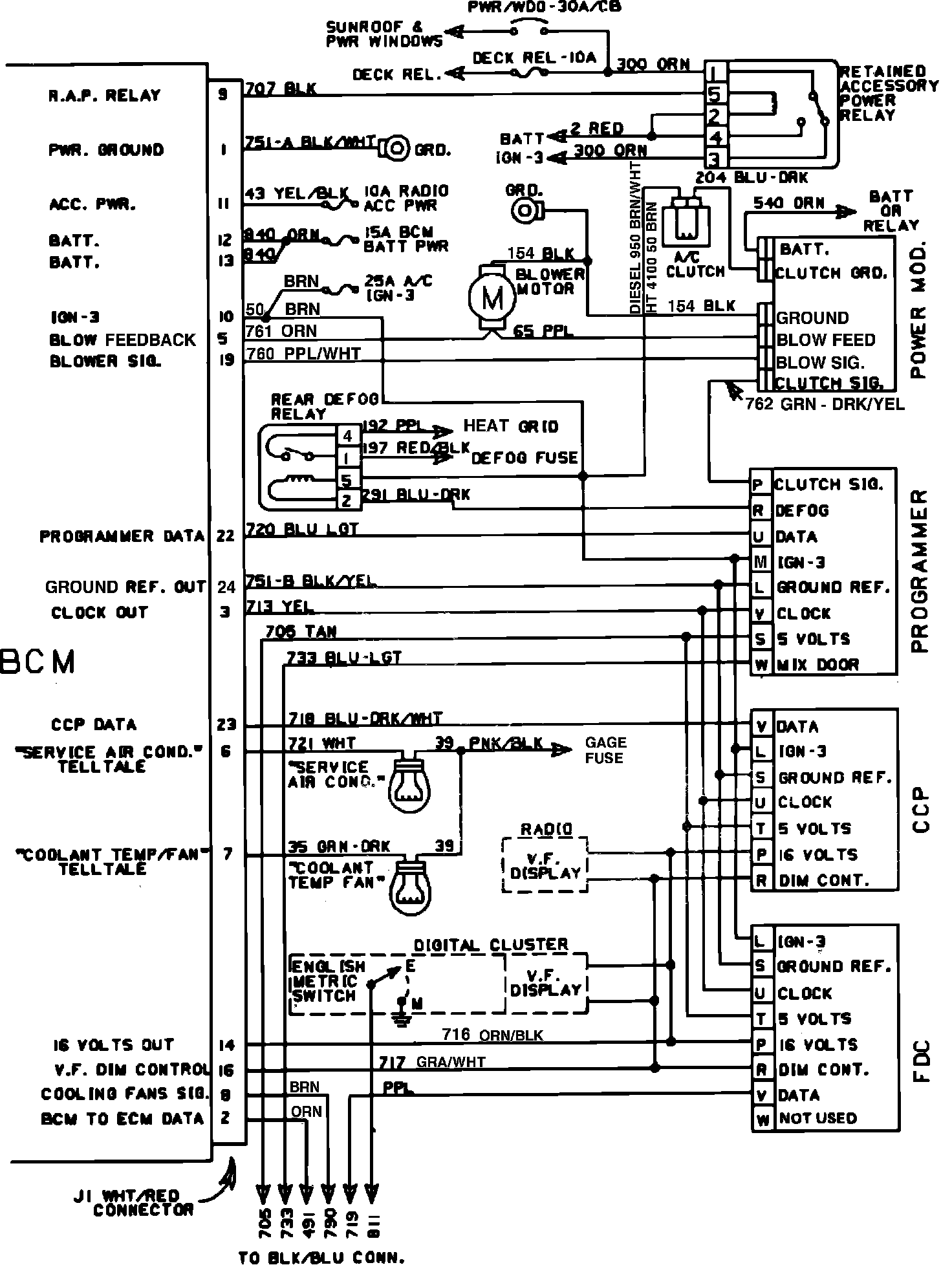

Fig. 84 BCM (J-1) Connector Wiring Diagram:

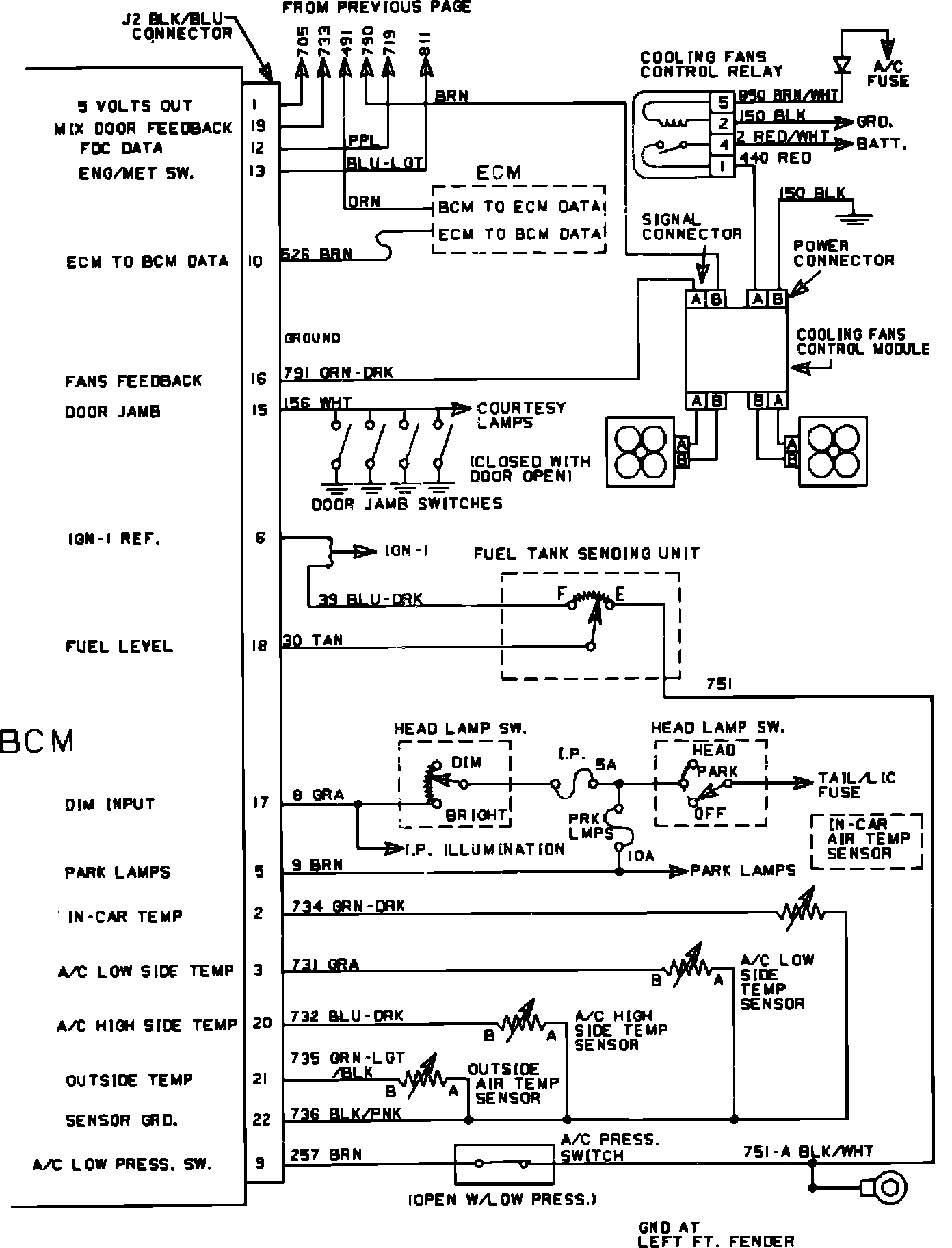

Fig. 86 BCM (J-2) Connector Wiring Diagram. Except 1985-86 Models:
