Air Injection: Testing and Inspection

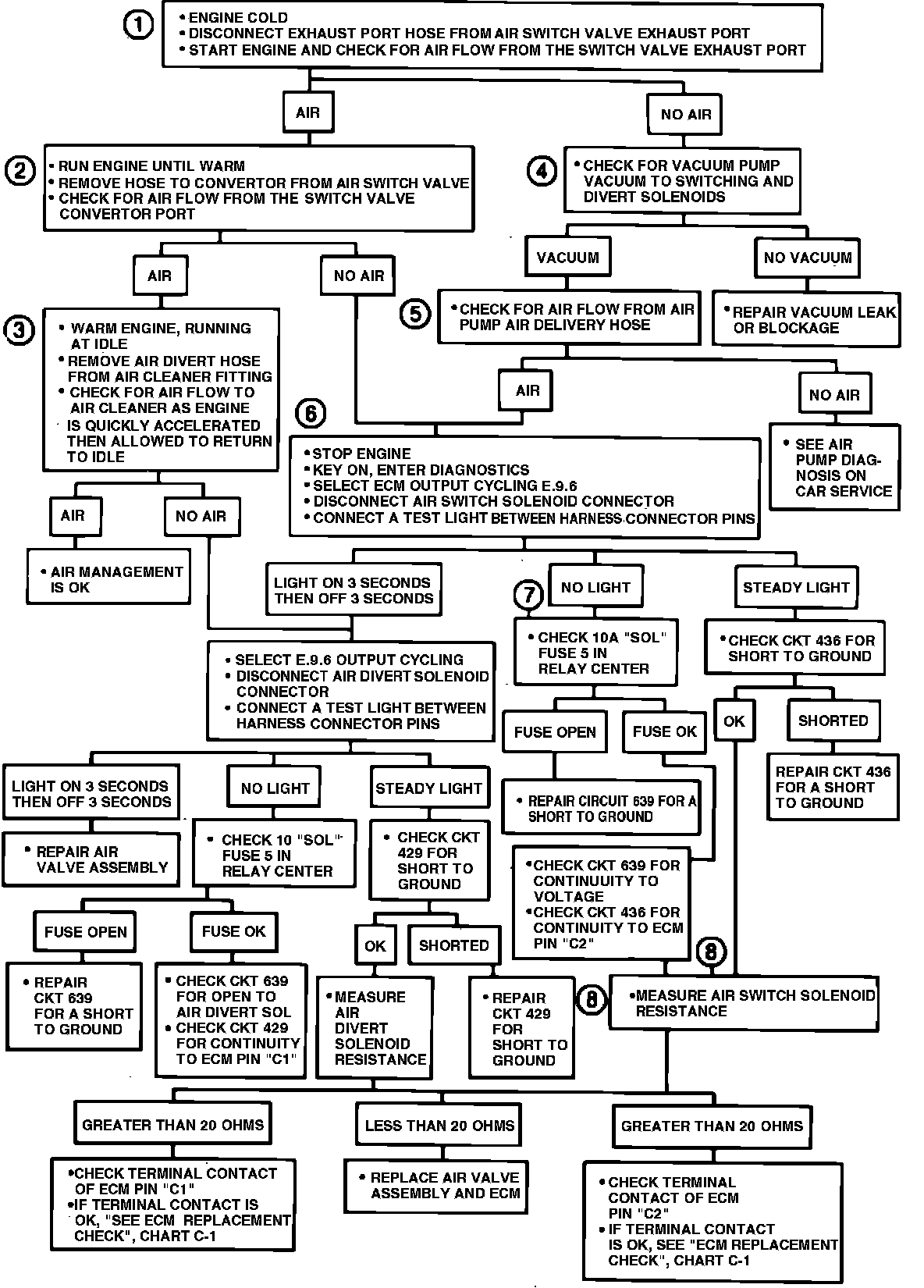

Fig. 25 DEFI System Diagnosis, Chart C-4 (Air Management Diagnosis):
