Home >> Cadillac >> 1987 >> Seville V8-252 4.1L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Compressor HVAC >> Compressor Controls

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Compressor Controls

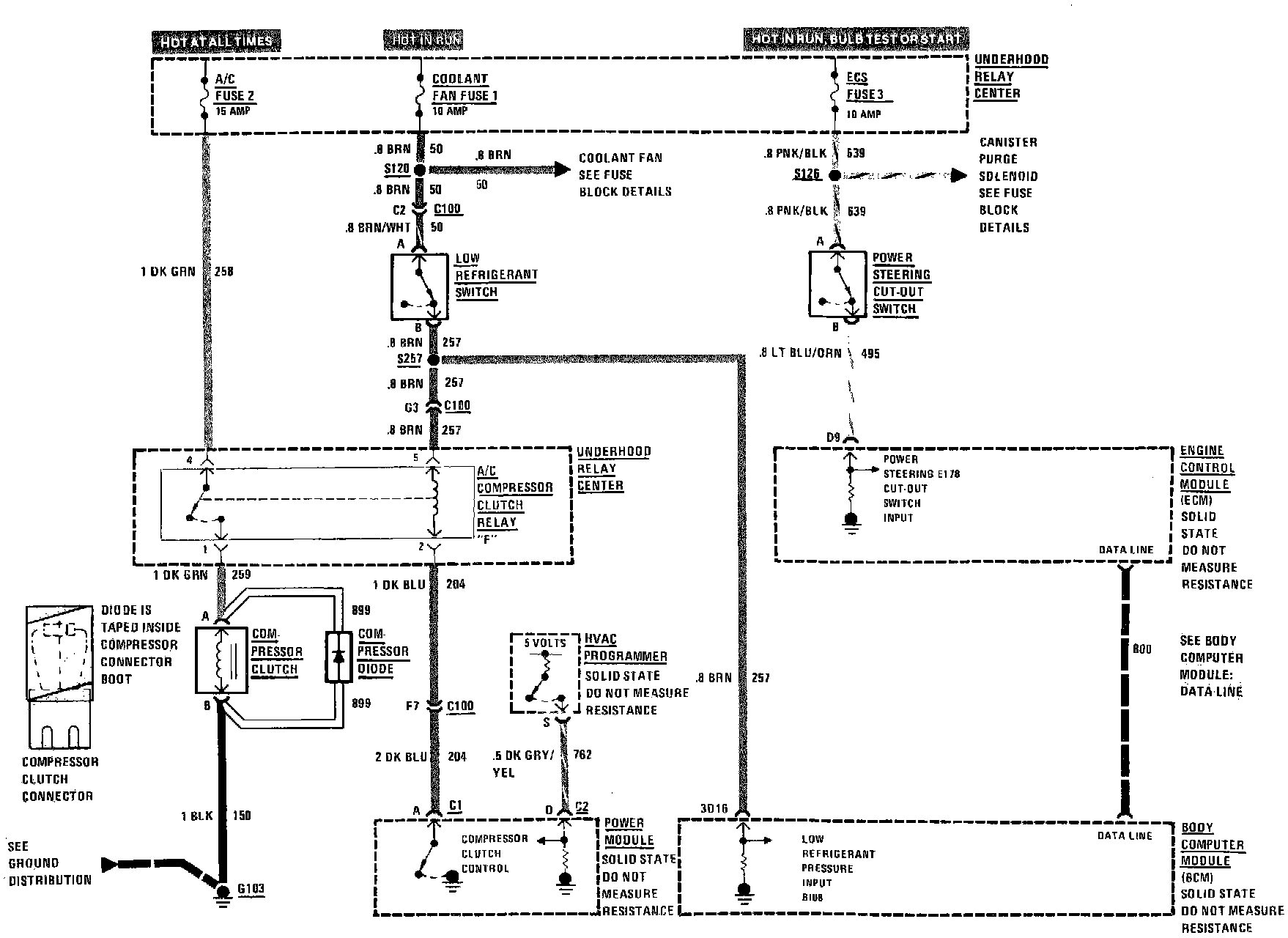

Schematic:
