Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Automatic Door Lock Module | Under right front seat. |

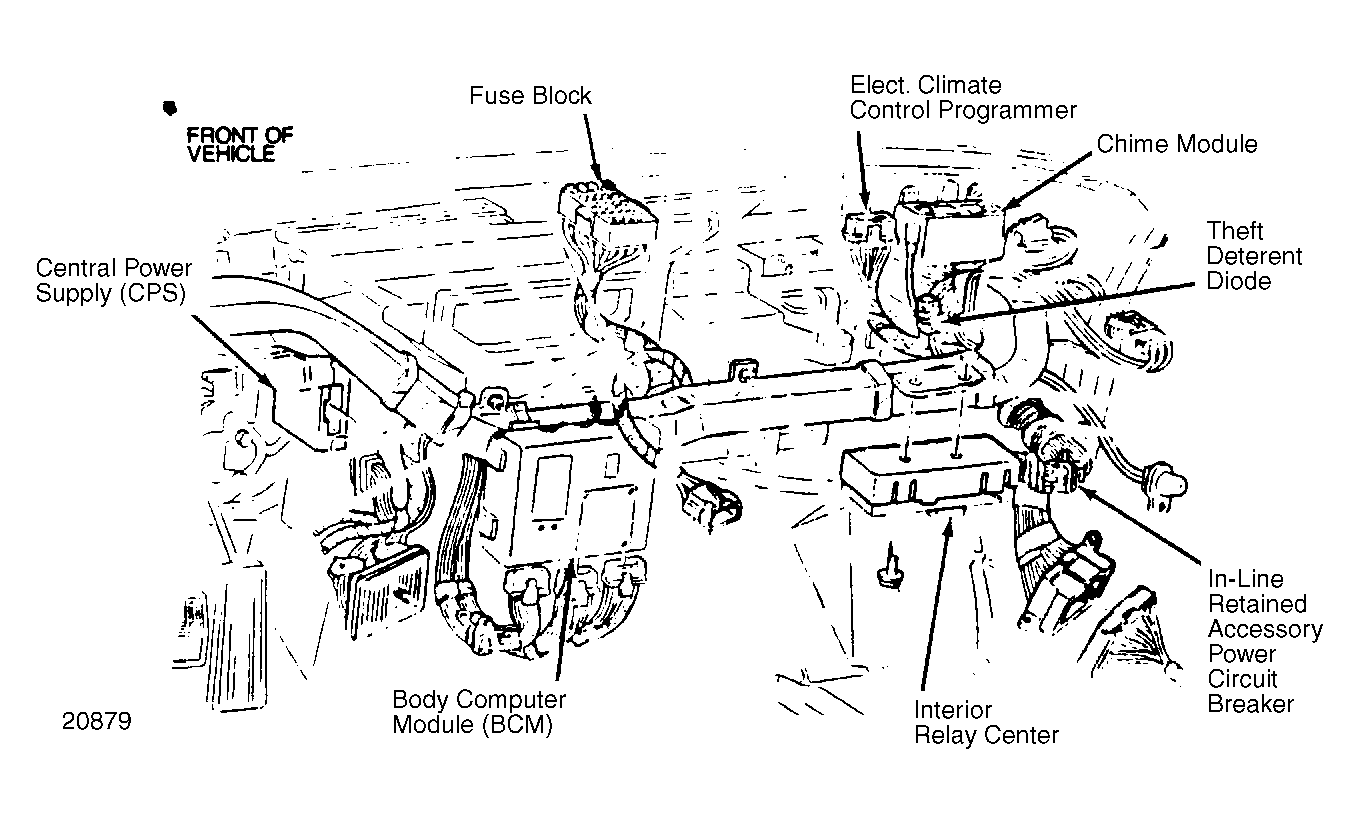

| Body Computer Module (BCM) | Behind glove box. See Figure. |
| Chime Module | Under right side of dash to right of glove box. See Figure. |
| Cooling Fan Control Module | On bottom of upper radiator support, to right of radiator. |
| Elect. Climate Control Power Module | In plenum on right side of firewall, in engine compartment. |
| Elect. Climate Control Programmer | Under right side of dash, on right side of plenum. See Figure. |
| Electronic Control Module (ECM) | Under right side of dash, near glove box. |
| Hazard/Turn Signal Module | On bracket under left side of dash, near steering column. |
| Sun Roof Timer Module | In right side of windshield header. |

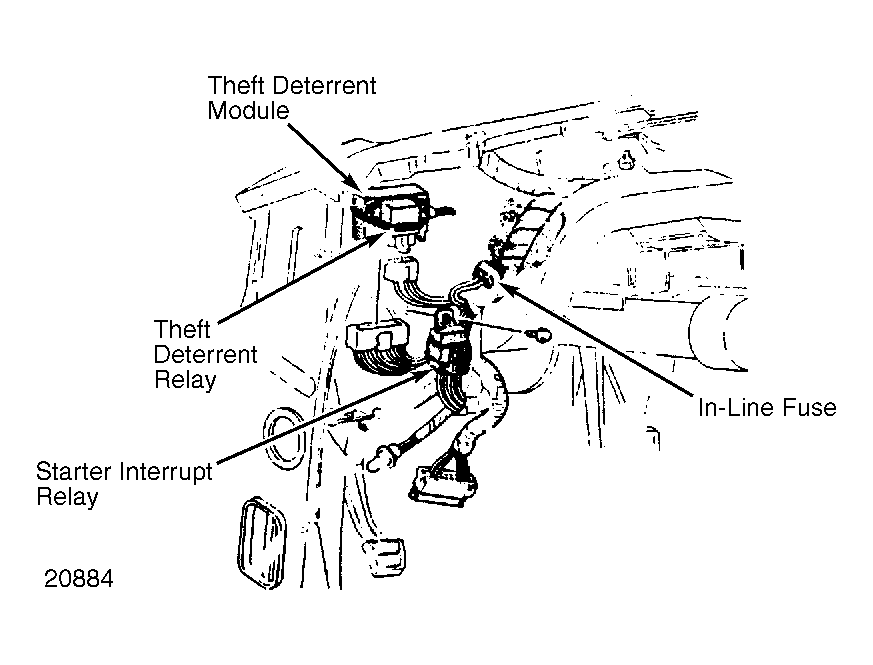

| Theft Deterrent Module | Under left side of dash, near kick panel. See Figure. |

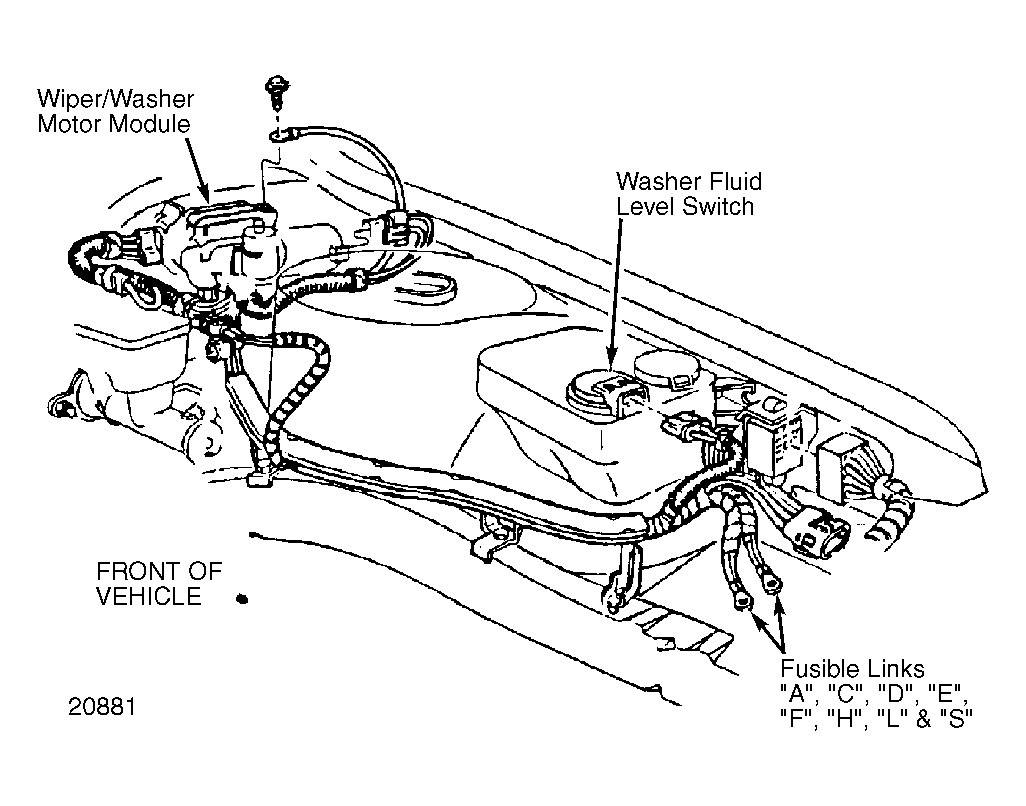

| Wiper/Washer Motor Module | On left side of firewall, in engine compartment. See Figure. |
