Notes On INTERMITTENTS

If intermittent code B124 is being set, manipulate related wiring while observing BCM data code BD60. If a failure is induced, reading will jump from normal value to zero MPH.

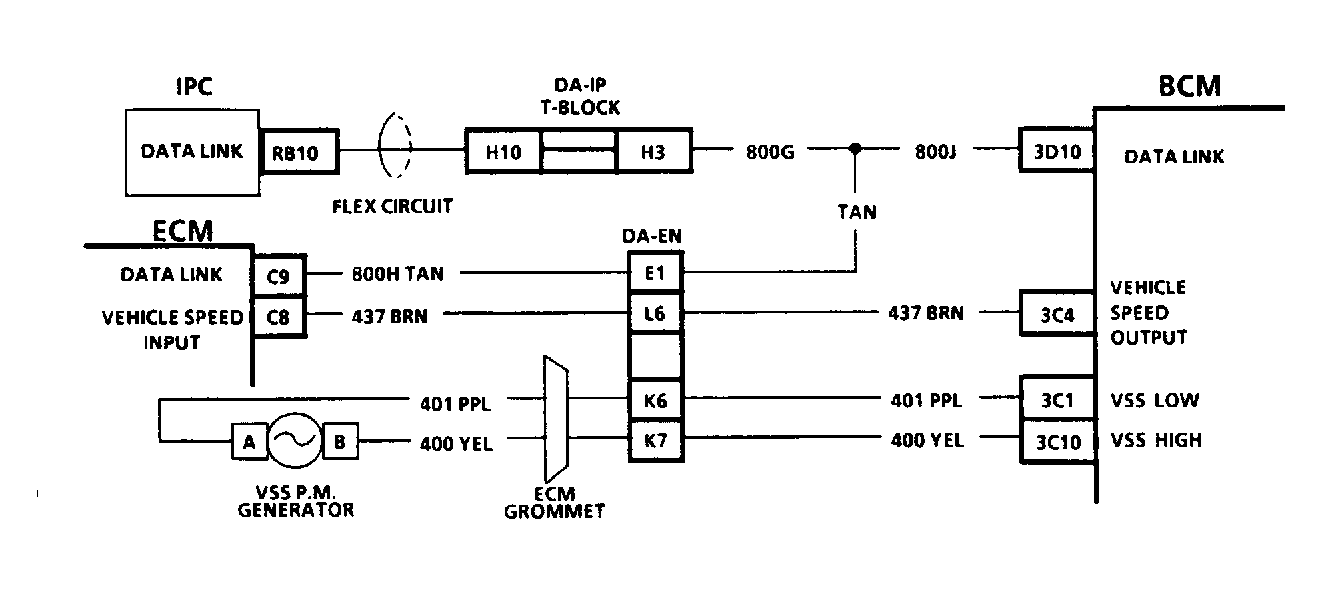

Fig 1: Code B124 Schematic, Vehicle Speed Sensor Circuit

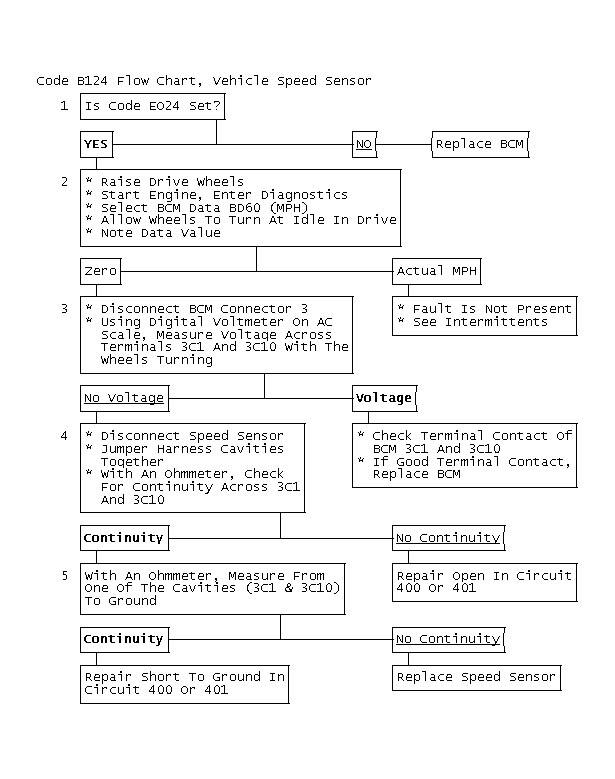

Fig 2: Code B124 Flow Chart, Vehicle Speed Sensor Circuit

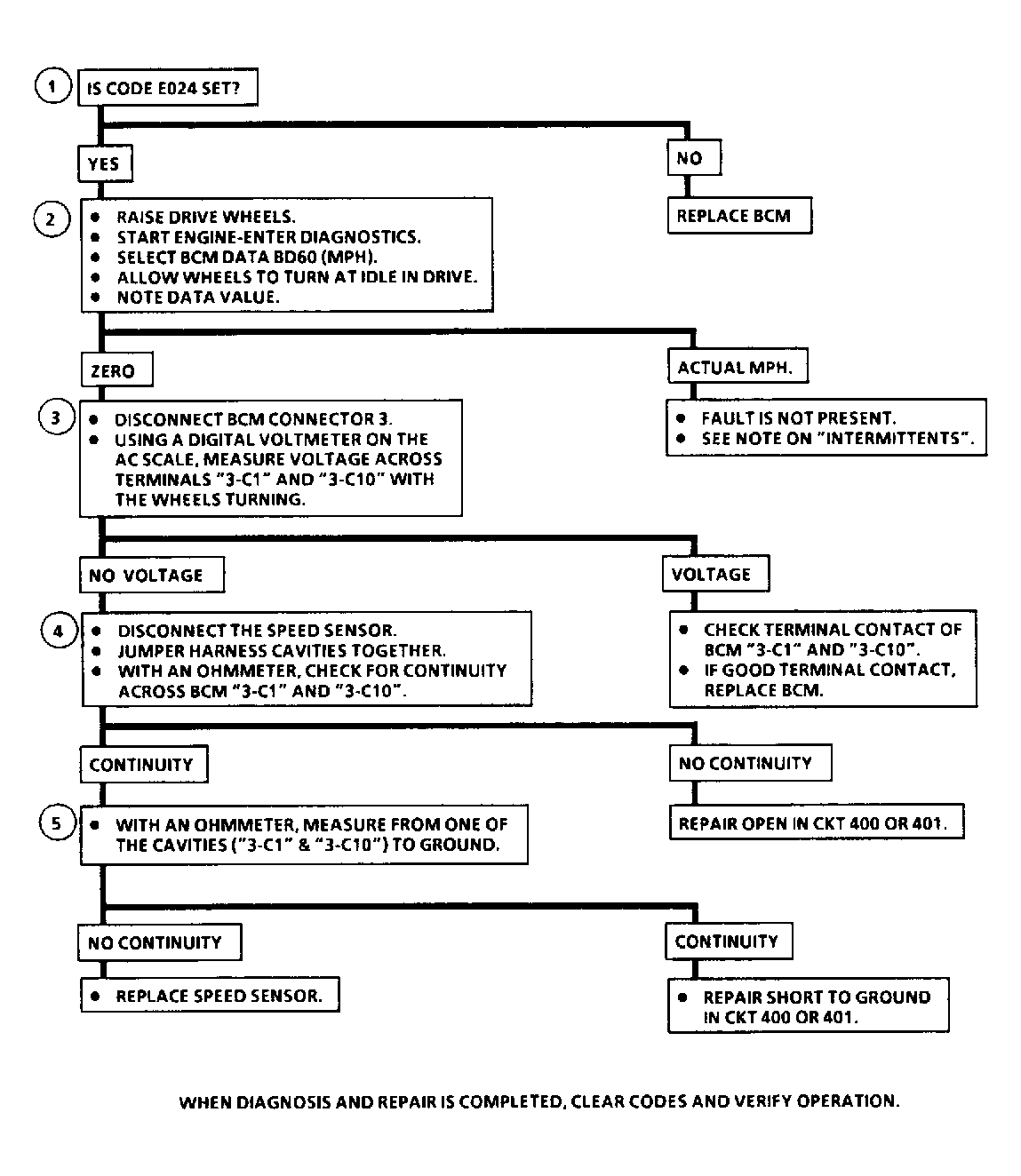

Fig 3: Code B124 Flow Chart, Vehicle Speed Sensor Circuit
