Lighting System Check

NOTE: For lighting "A-" charts, see A CHARTS (LIGHTING)  .

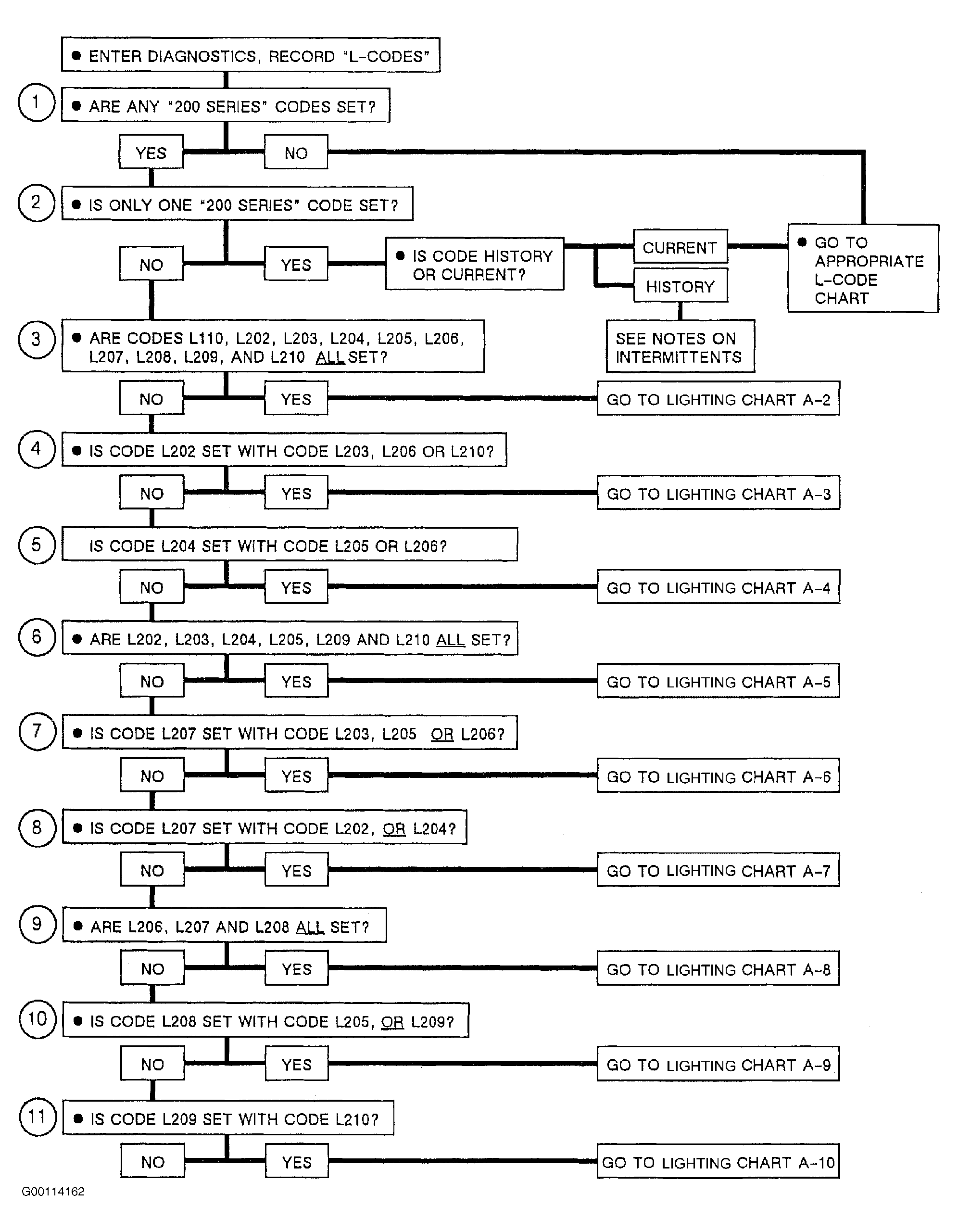

Fig 1: Identifying Lighting System Check Sequence
G00114162Courtesy of GENERAL MOTORS CORP.
