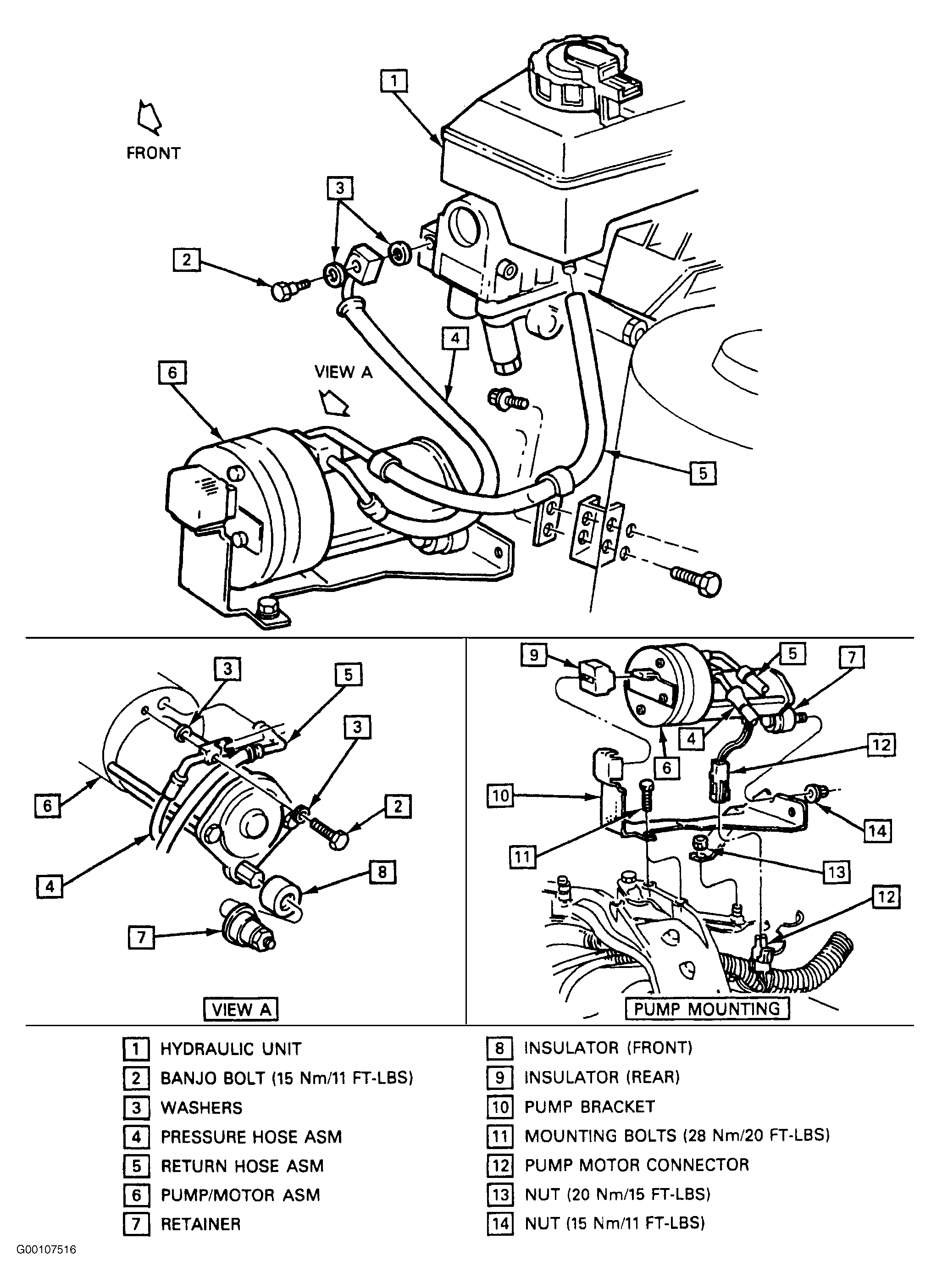

Pump/Motor Assembly Components: Installation
- Position mounting insulators on pump and bracket.
- Install pump in car an tighten mounting nut to specification. See TORQUE SPECIFICATIONS
.
- Install pressure and return hoses at pump. Tighten pressure hose fitting (banjo bolt) to 11 ft. lbs. (15 N.m).
- Connect pump motor connector.
- Install air intake duct in car and install clamps at the air cleaner and throttle body.
- Fill brake fluid reservoir to the FULL mark.
- Bleed pump and booster. See BLEEDING
.
Courtesy of GENERAL MOTORS CORP.
