Note On Intermittents

If intermittent Code B113 is being set, manipulate related wiring while observing BCM parameter BD25. If failure is induced, reading will jump from its normal value to a reading outside range of -34°C to 96°C. If value displayed by BD25 is not reasonably close to actual temperature of air at sensor, check for poor terminal connections or replace sensor.

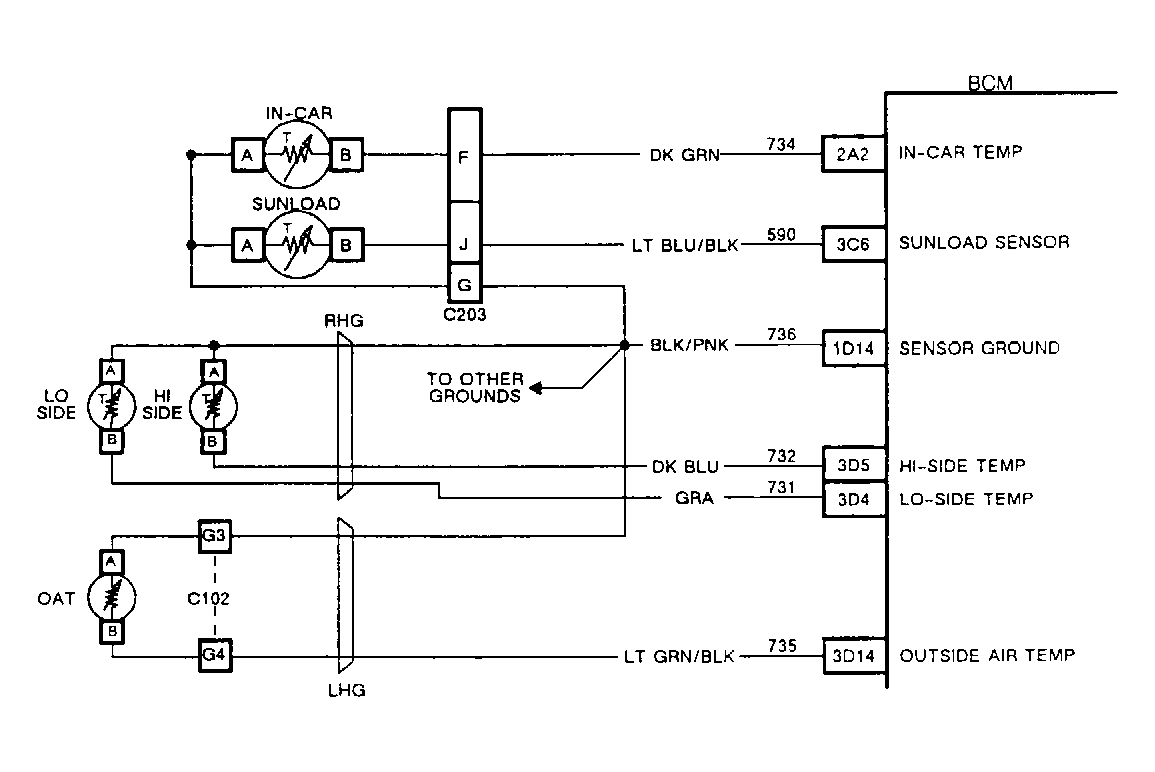

Fig 1: BCM Code B113 Circuit Diagram

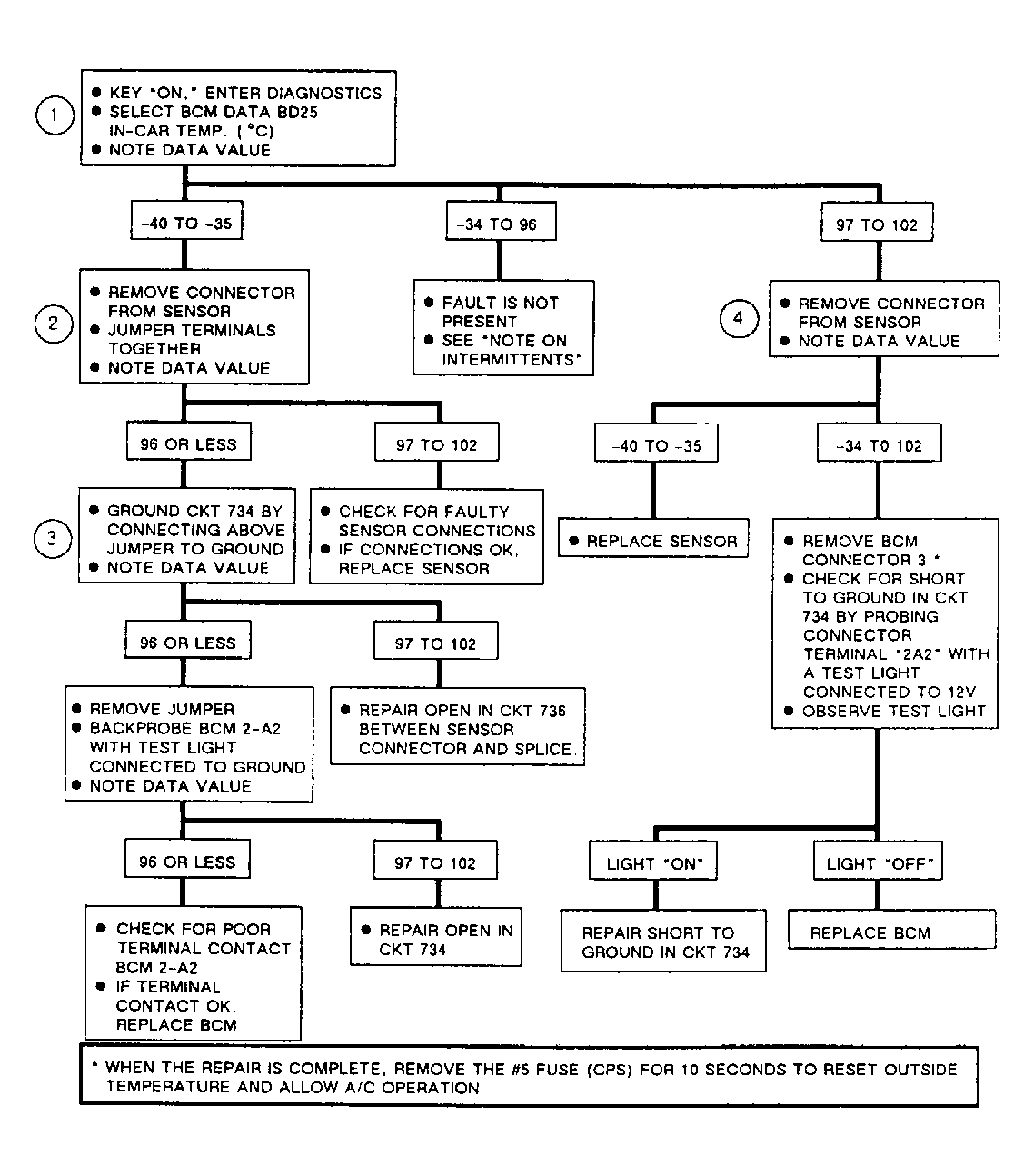

Fig 2: BCM Code B113 Flow Chart
