Note On Intermittents

When IPC II82 input change-of-state indicator displays an "X", check circuit for an intermittent open. Cycle twilight control between OFF and MAX delay. If BCM parameter BD43 does not read 6-94 percent, replace left switch assembly.

Fig 1: BCM Code B121 Circuit Diagram

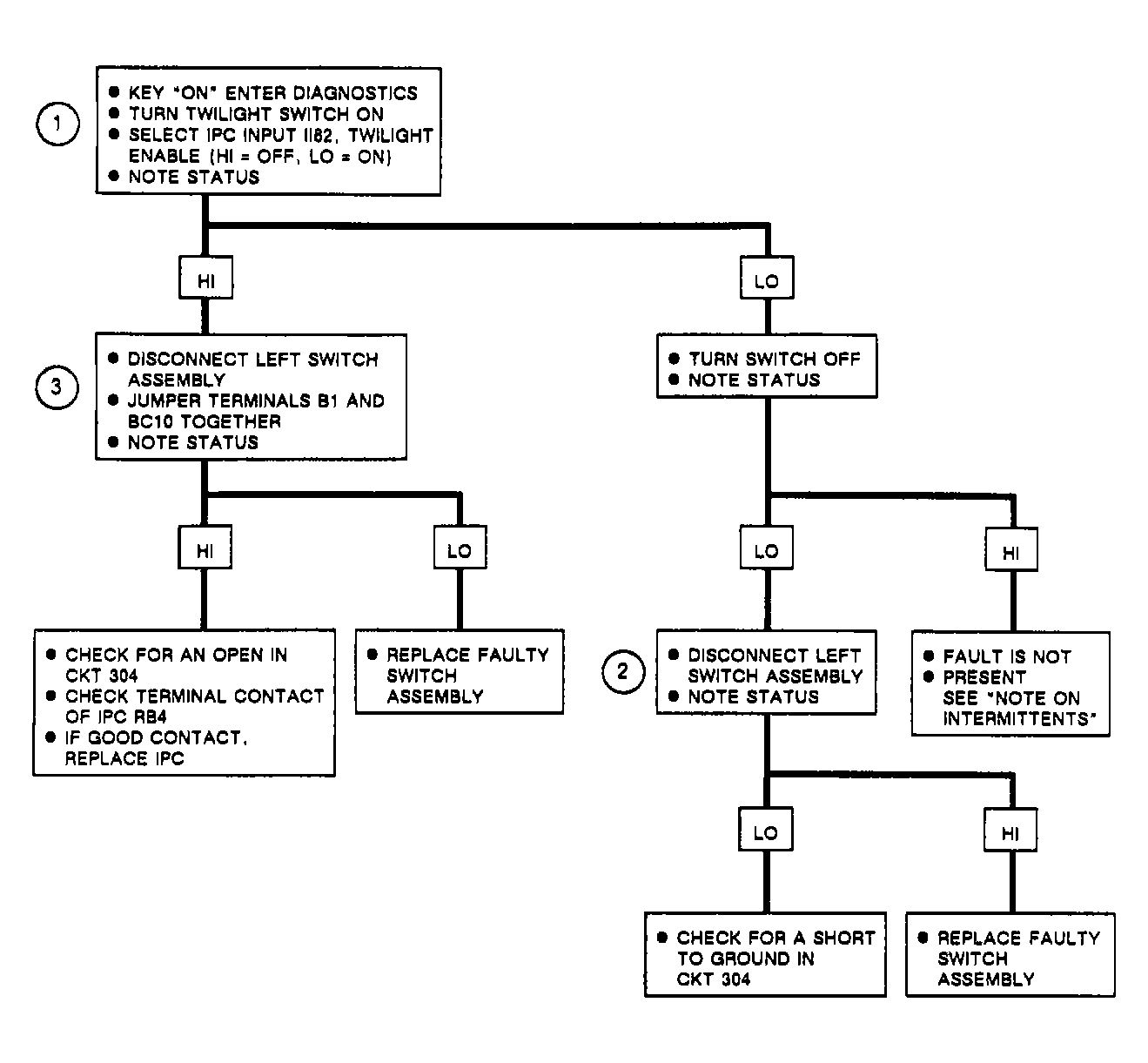

Fig 2: BCM Code B121 Flow Chart
