Note On Intermittents

Backprobe ECM terminal B9 with a voltmeter to ground. Lift both drive wheels off ground, start engine and allow it to idle in drive. Manipulate affected wiring and watch for sudden loss of voltage on ECM terminal B9.

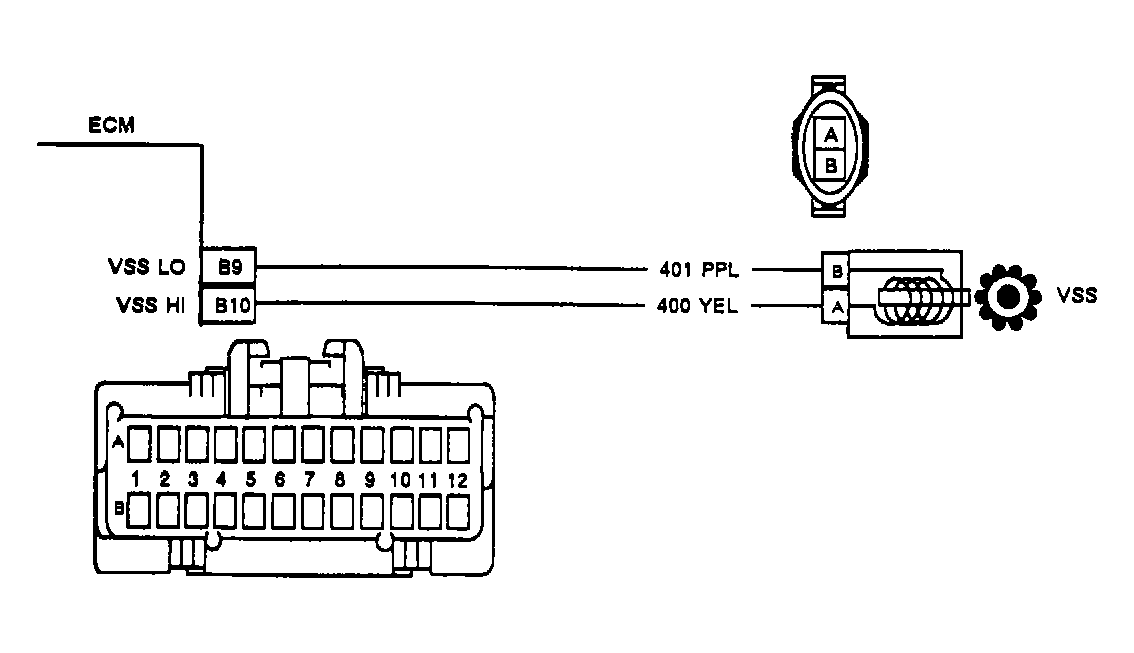

Fig 1: ECM Code EO24 Circuit Diagram

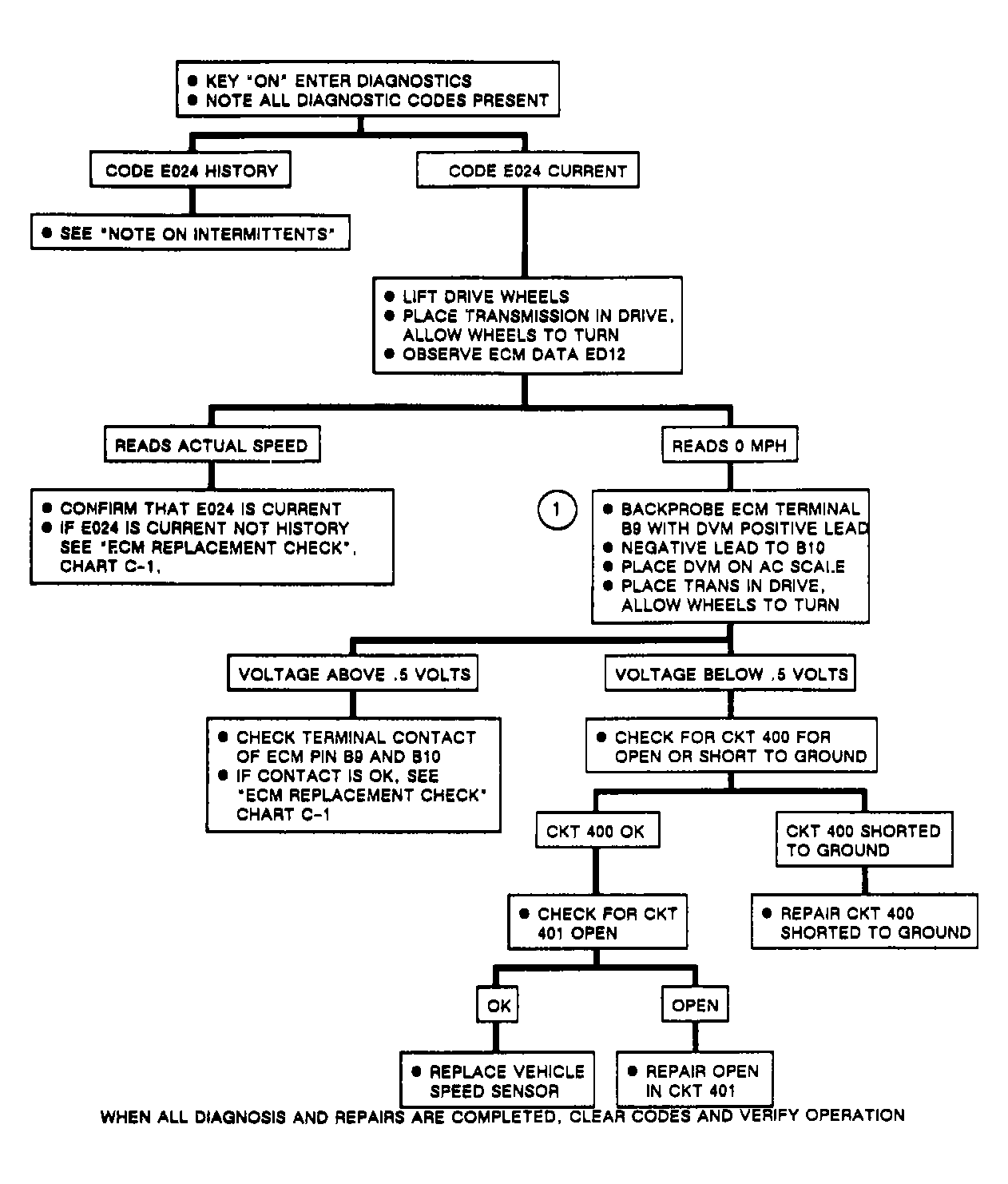

Fig 2: ECM Code EO24 Flow Chart
