Note On Intermittents

With engine running, manipulate oxygen sensor, ECM wiring, and connectors while observing ECM parameter ED33. If fault is induced, ED33 will jump to greater than .63 volt, and ECON status light will go on. Manipulate circuit No. 413 ground to engine, and look for a loose ground eyelet or ground eyelet installed at wrong location. If oxygen sensor circuit is okay or lean engine operation is suspected, perform DFI SYSTEM CHECK.

Fig 1: ECM Code EO45 Circuit Diagram
G90C21727

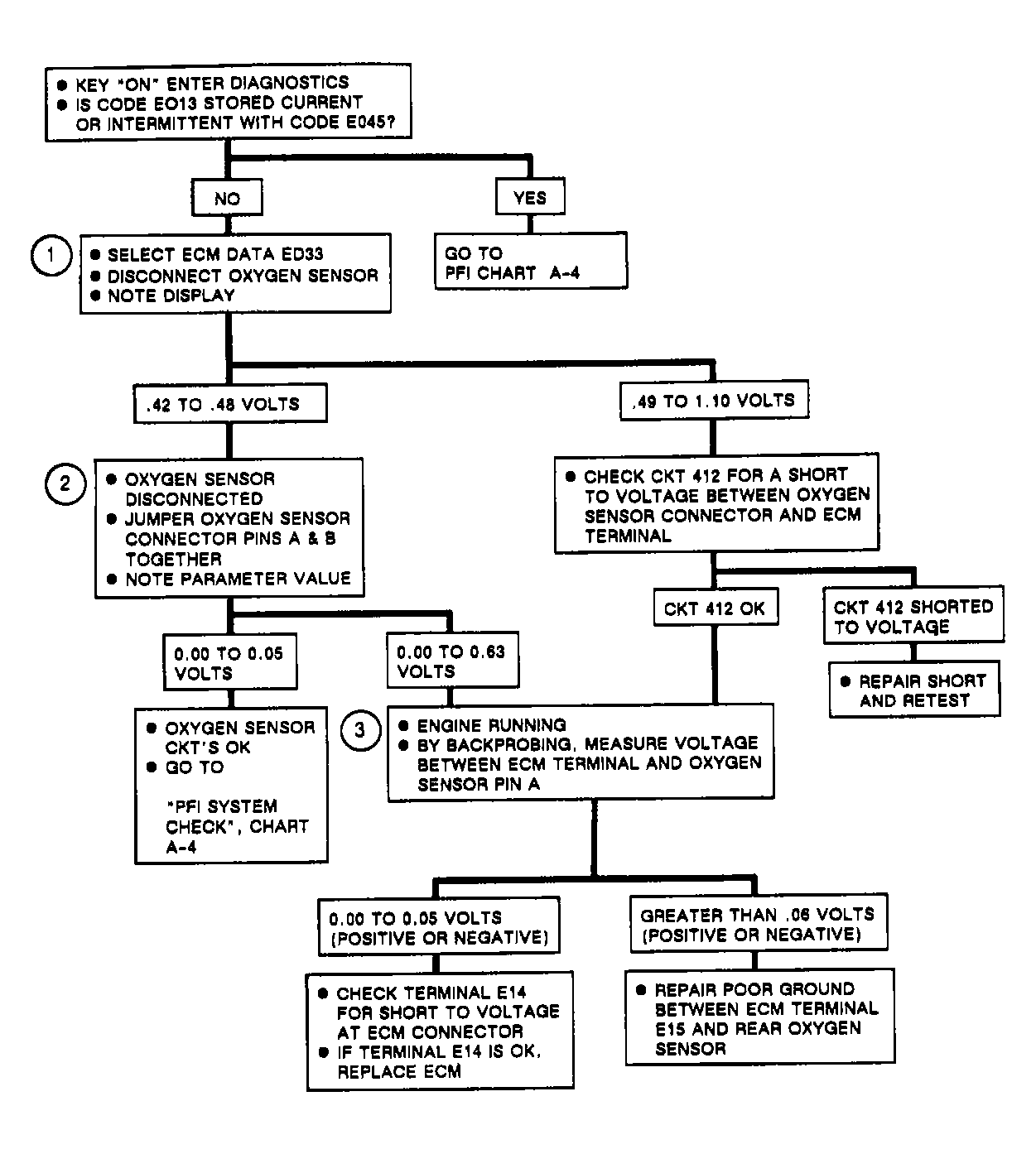

Fig 2: ECM Code EO45 Flow Chart
G90I13720
