Note On Intermittents

DO NOT attempt to diagnose Code EO53 unless there are complaints of stumble, stall, miss or other driveability conditions that could be caused by loss of spark or fuel. Code EO53 can be caused by: loss of ground on circuit No. 453, loss of distributor reference signal on circuit No. 430, loss of battery power to "B+" terminal of distributor, or ignition switch.

Fig 1: ECM Code EO53 Circuit Diagram
G90H21722

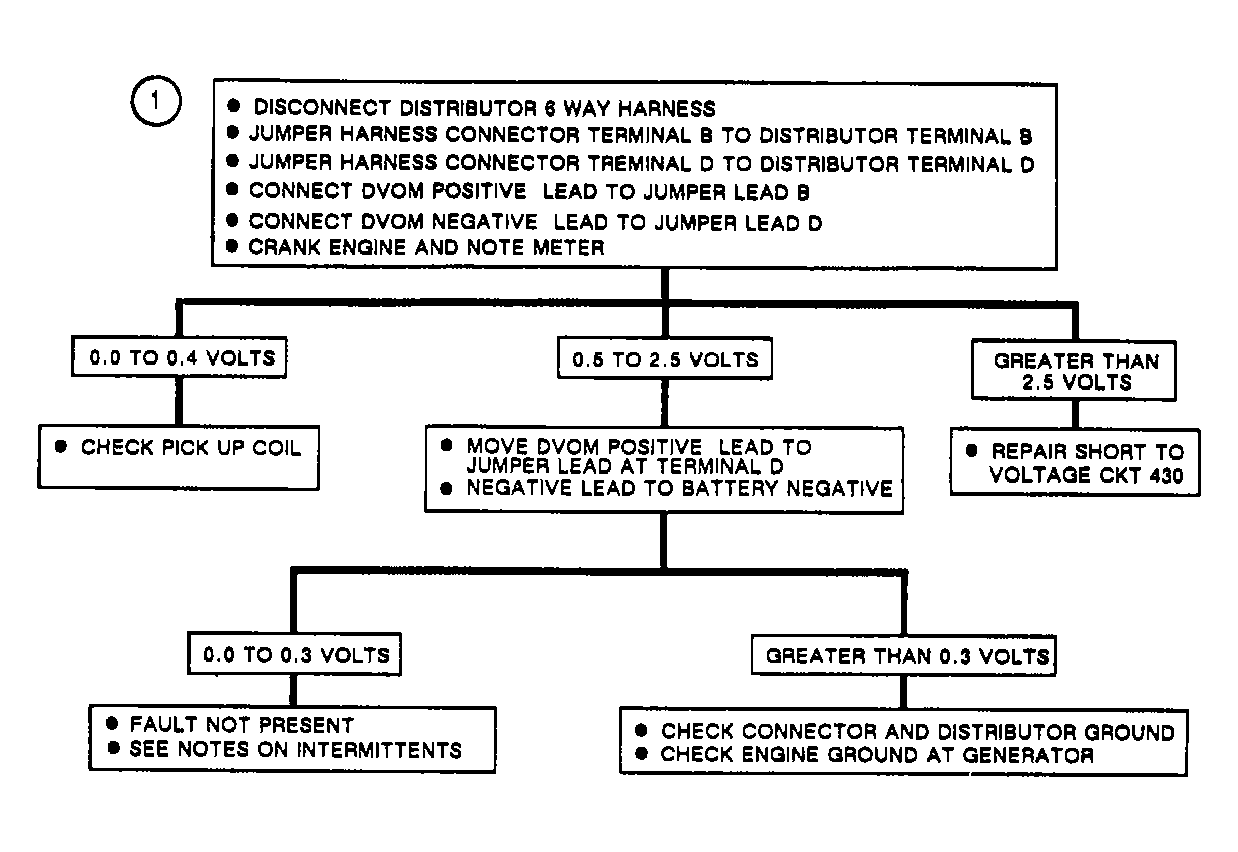

Fig 2: ECM Code EO53 Flow Chart
G90F13727
