Fuse Block: Locations

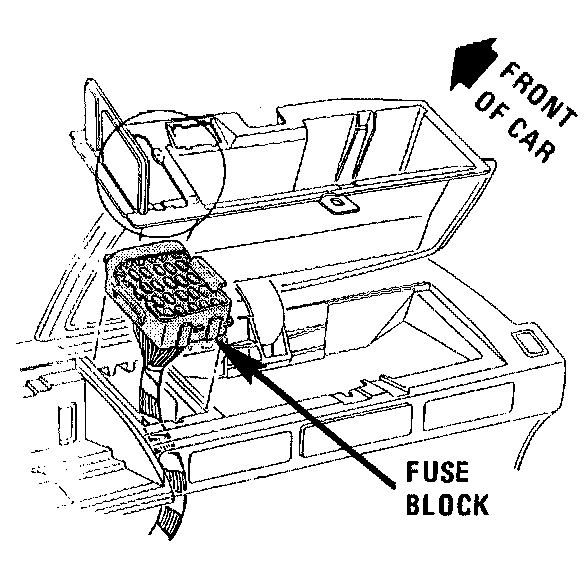

FUSE BLOCK

RH Side Of I/P:






The Fuse Block is located on the RH side of Instrument Panel (I/P), in glove box.
