| Express Down Window Module |

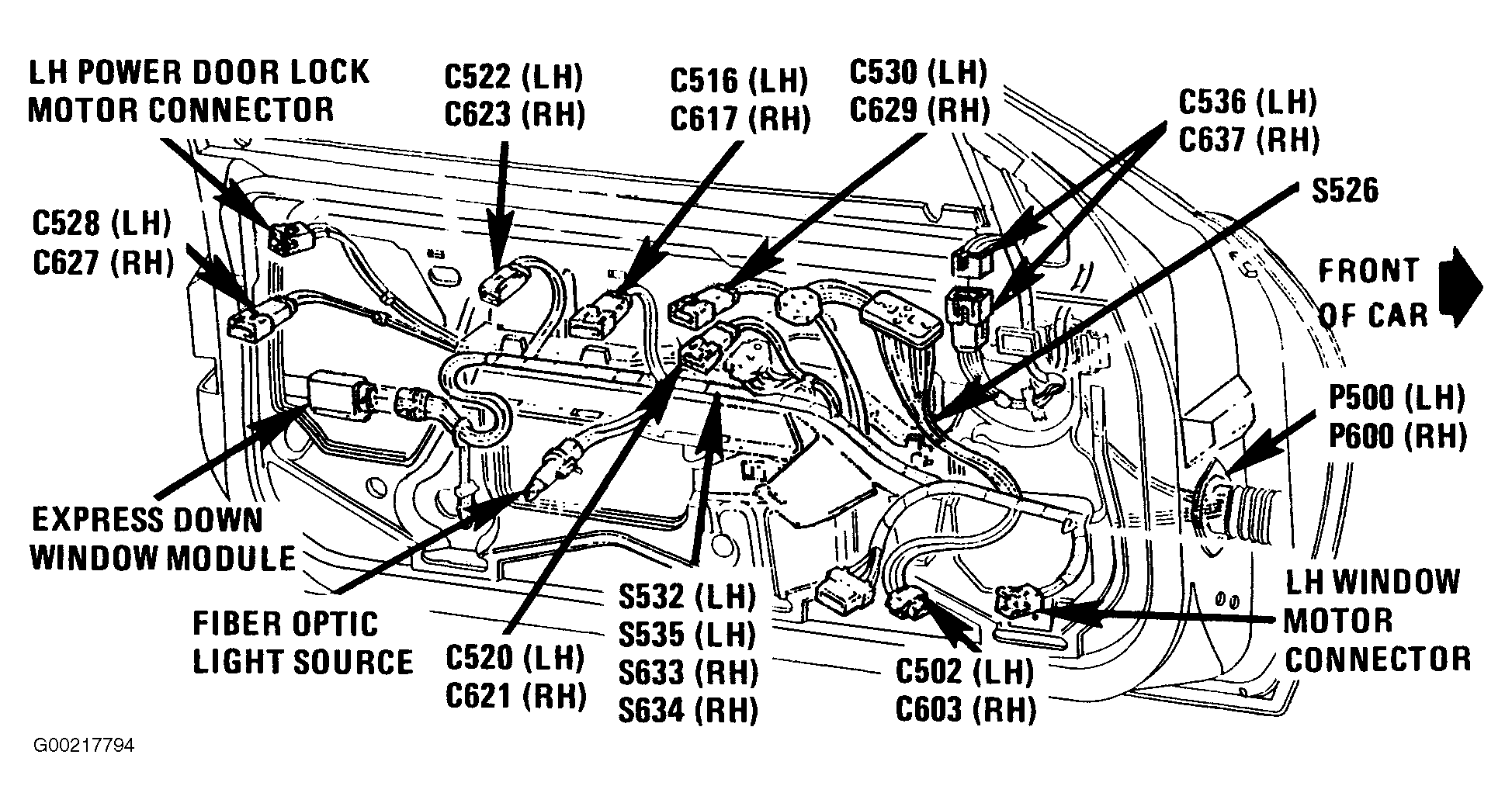

In center rear of LH front door, in front of door lock motor. See Fig 1 |
| Fuse Block |

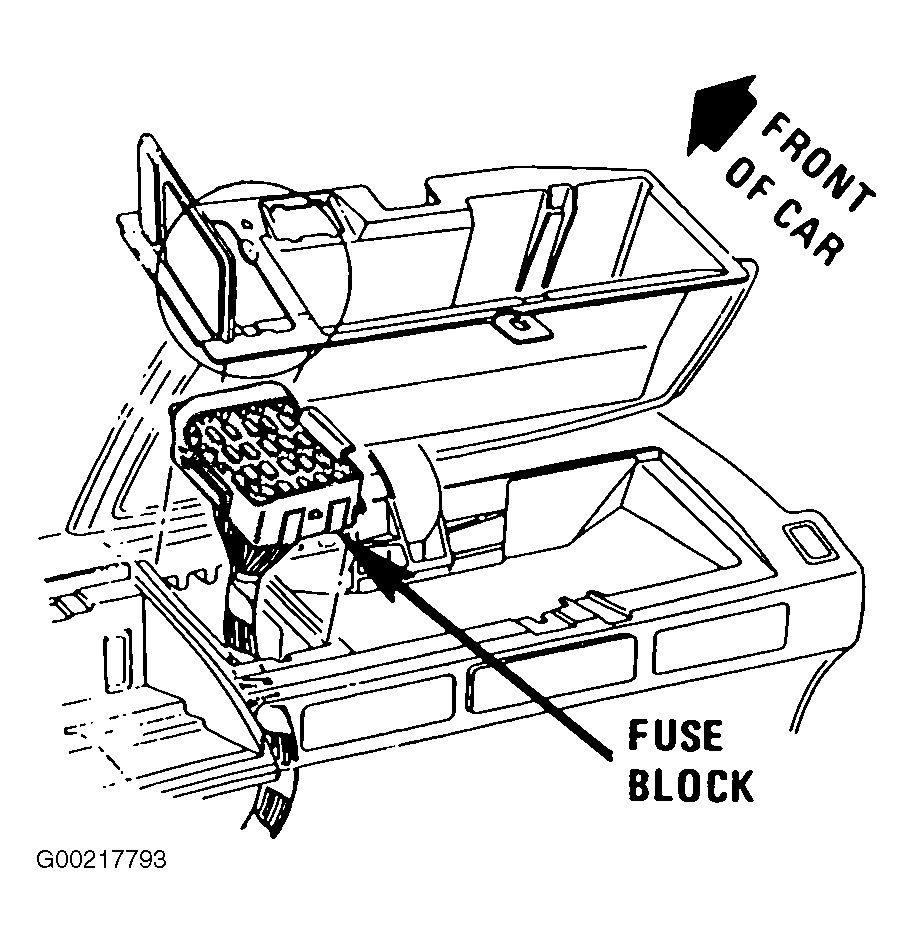

Behind RH side of I/P, in glove box. See Fig 2 |
| Interior Relay Center |

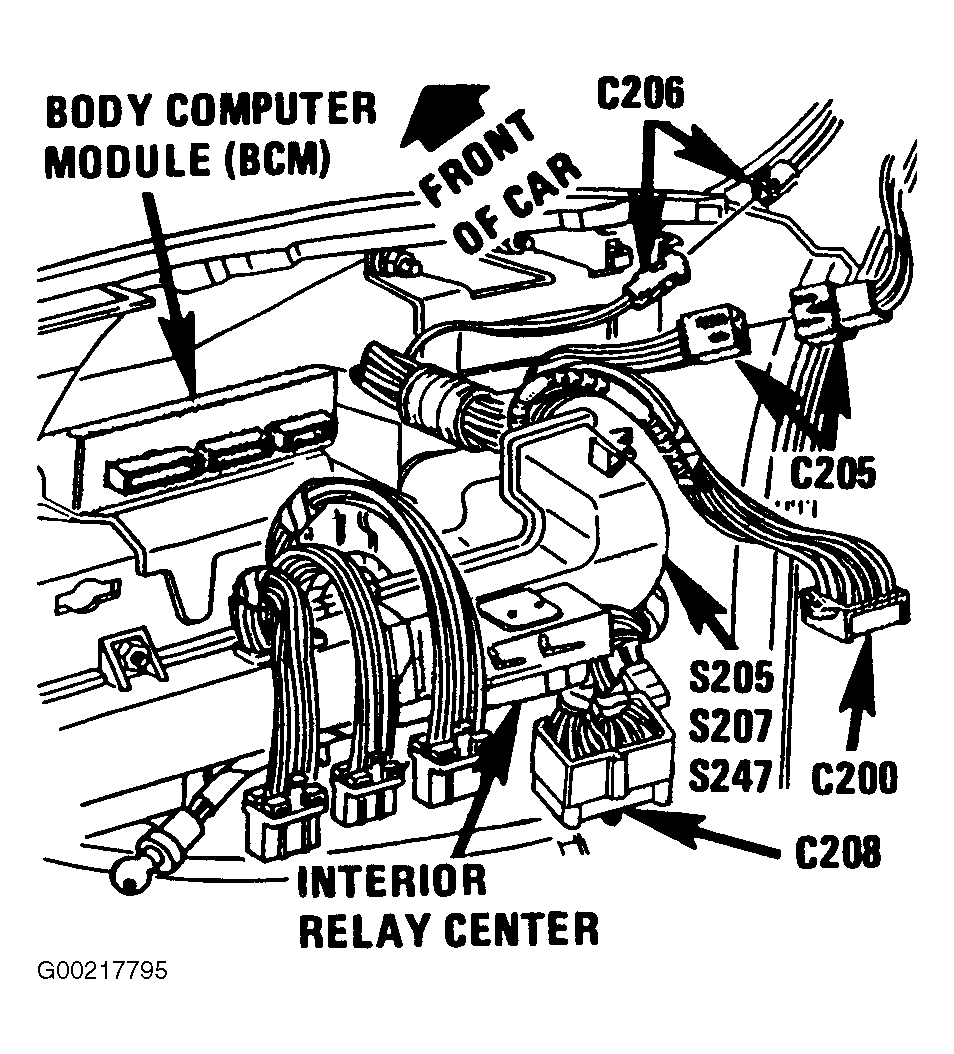

Behind RH side of Instrument panel, below glove box. See Fig 3 |
| Window Motors |

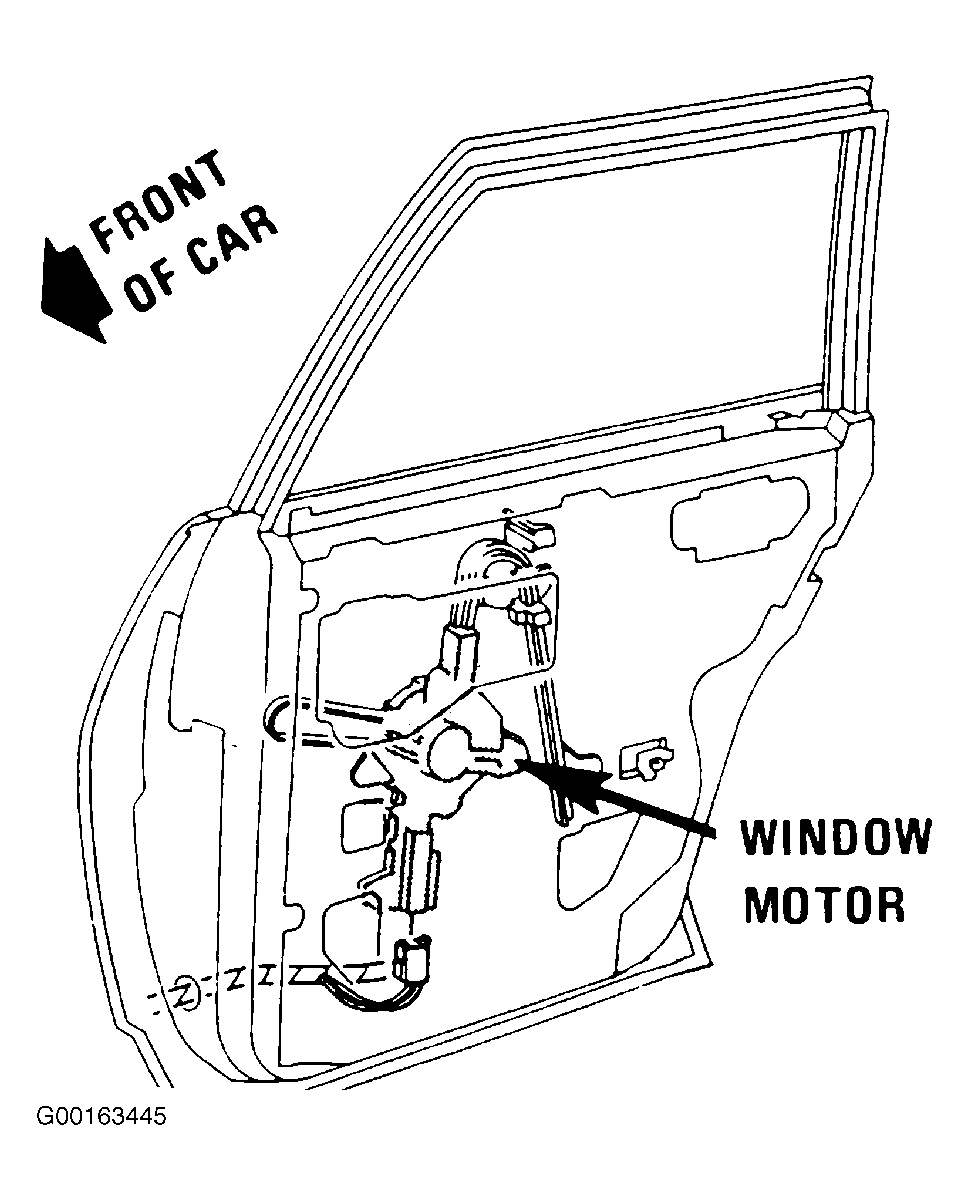

In center front of respective doors. See Fig 4 |
| C200 (56 Cavities) |
Behind right side Of instrument panel near nhroud. See Fig 3 |
| C308 (6 Cavities) |
Near base of left hand center pillar. See Fig 5 |
| C309 (6 Cavities) |
Near base of right hand center pillar. See Fig 5 |
| C310 (6 Cavities) |
Near base of left hand center pillar. See Fig 5 |
| C311 (6 Cavities) |
Near base of right hand center pillar. See Fig 5 |
| G301 |
Behind left side of instrument panel near shroud.See Fig 6 |
| P500 |
In front of left front door, near shroud. See Fig 1 |
| P600 |
In front of right front door, near shroud. See Fig 1 |
| P700 |

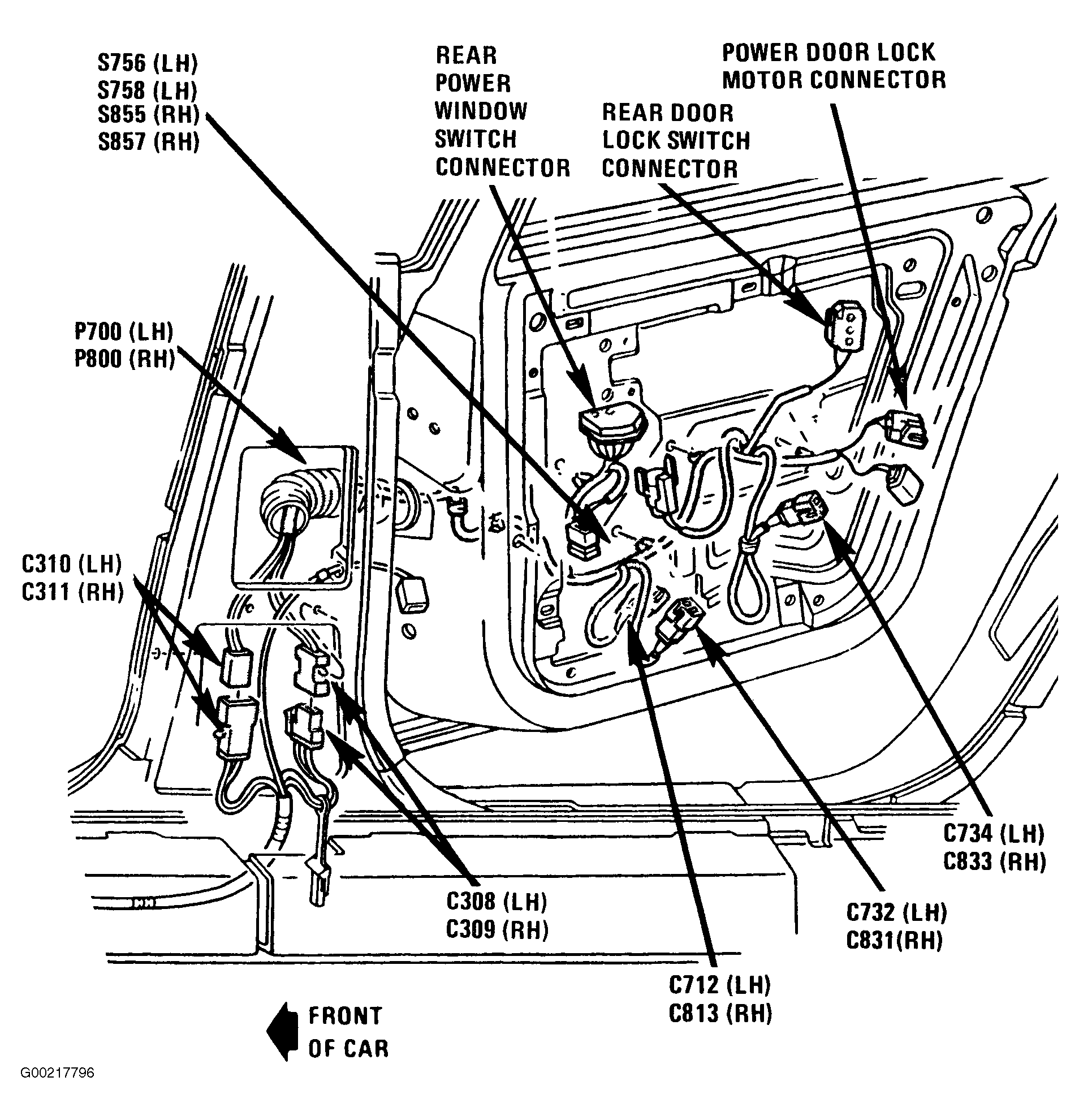

Left hand center pillar, in front of left rear door. See Fig 5 |
| P800 |
Right hand center pillar, in front of right rear door. See Fig 5 |
| S205 |
Dash harness, behind RH side of instrument Panel in end of dash harness channel See Fig 3 |
| S317 |
Body main harness, front of LH front door sill. See Fig 6 |
| S398 |

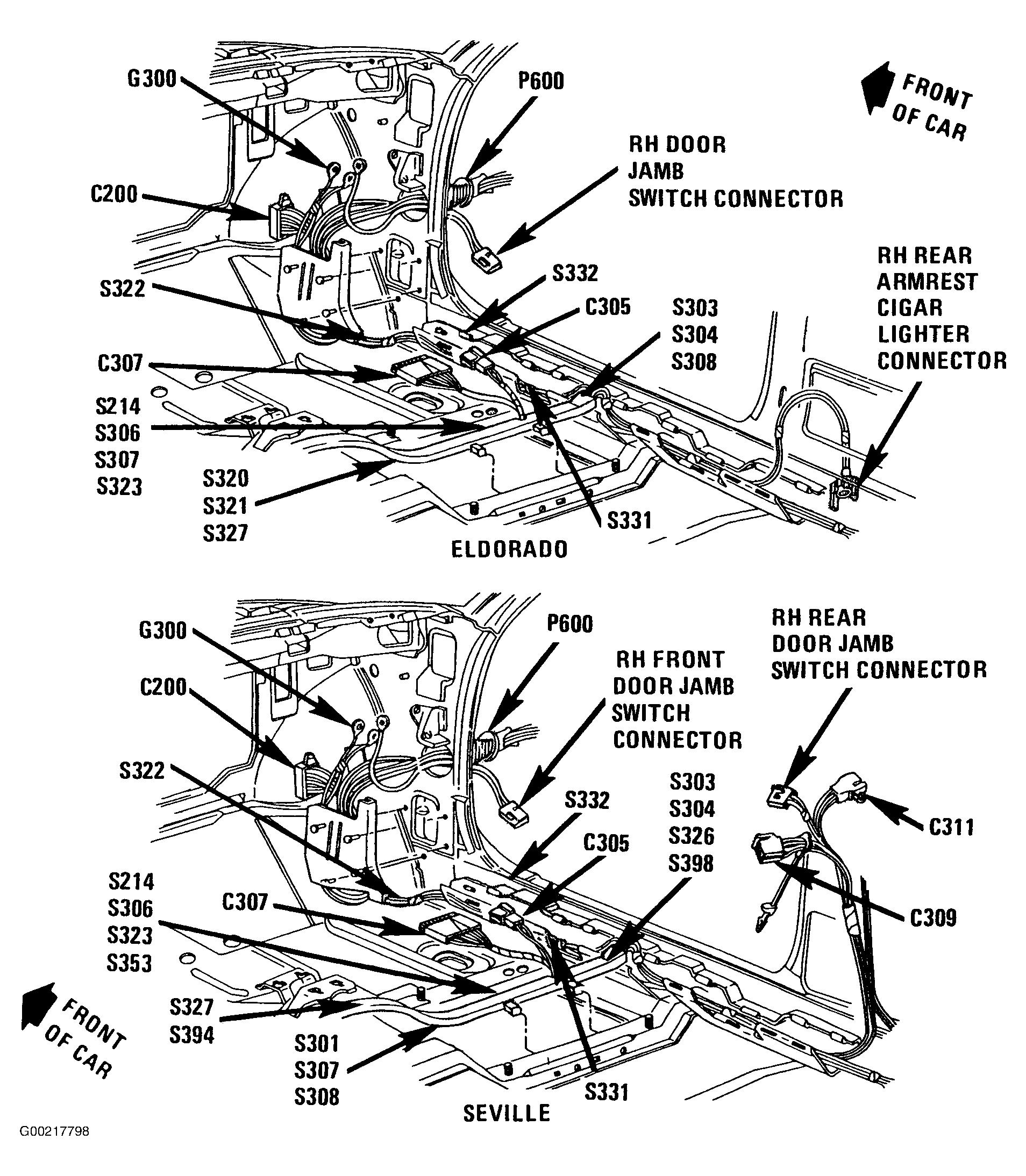

Body main harness, below RH front seat, at RH end of conduit. See Fig 7 |
| S526 |
Body main harness, in LH front door, ten inches from power window switch. See Fig 1 |
