Test B

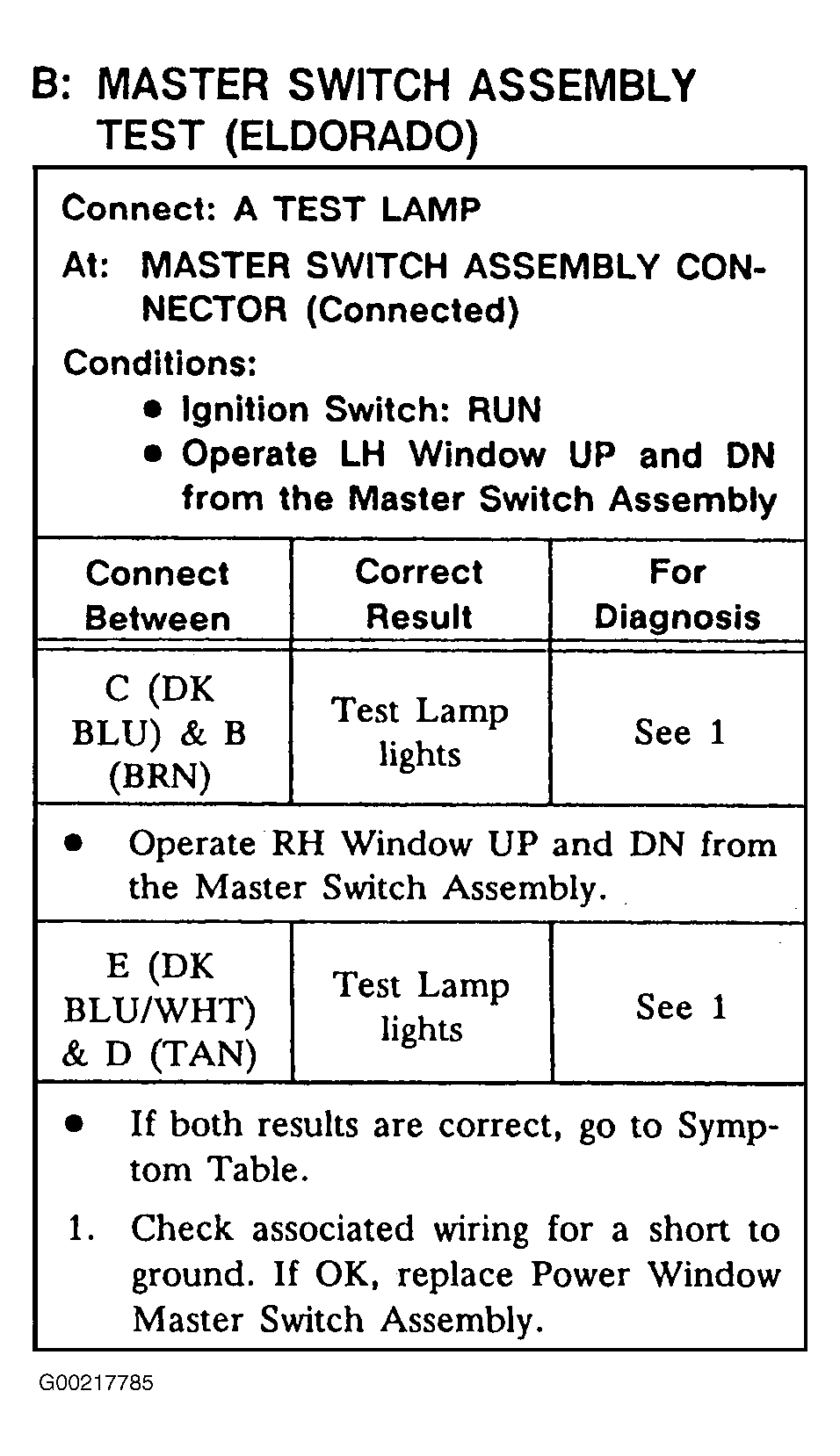

Fig 1: Testing Master Switch Assembly (Eldorado)
G00217785Courtesy of GENERAL MOTORS CORP.

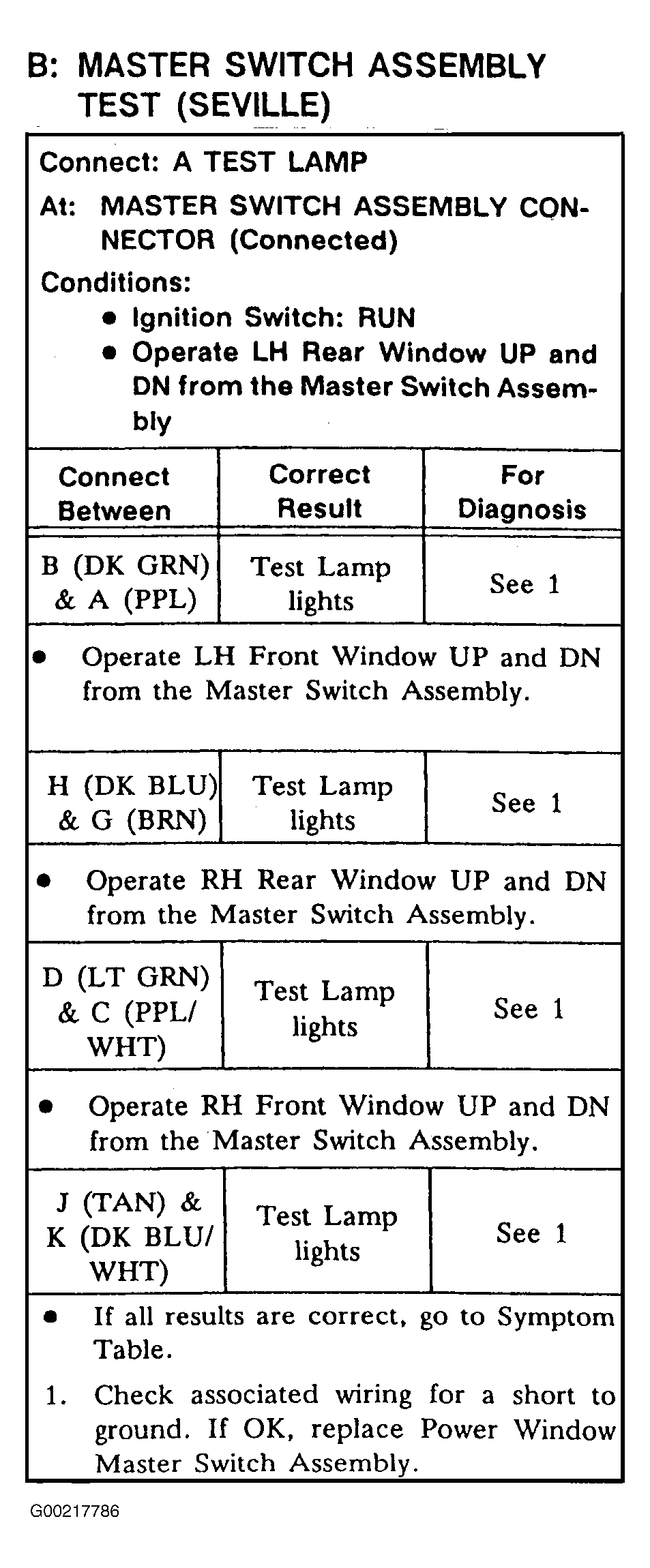

Fig 2: Testing Master Switch Assembly (Seville)
G00217786Courtesy of GENERAL MOTORS CORP.
