Mode F2

TROUBLE CODES mode displays ABS malfunction codes. TECH 1 will display any error codes and brief description of code number displayed. If no codes are stored, TECH 1 will display NO ABS CODES.

TECH 1 will respond to a clear codes command by indicating ABS CODES CLEARED or CODE CLEAR FAIL.

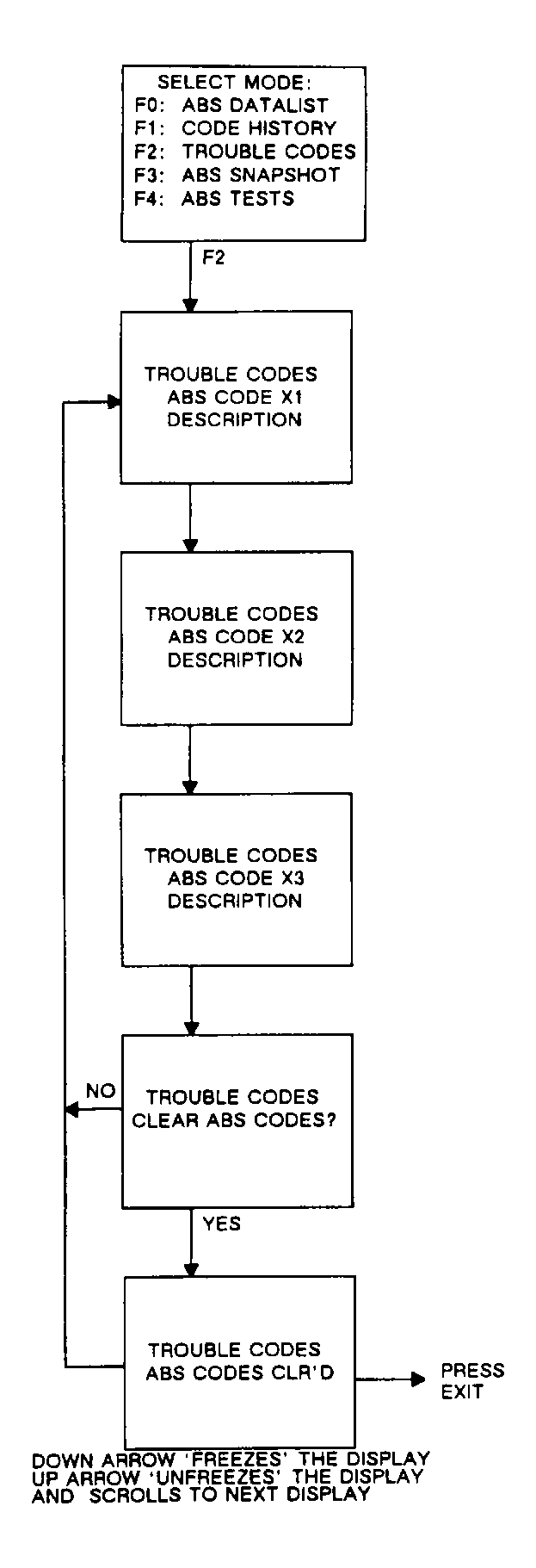

Fig 1: TECH 1 Trouble Codes Mode
G90D08314Courtesy of GENERAL MOTORS CORP.
