Note On Intermittents

With engine running, manipulate related connectors and wiring. If intermittent is created, code will set. Disconnect and reconnect distributor connector to ensure it is properly latched.

Fig 1: PCM Code EO41, Schematic, No Cam Sensor Signal

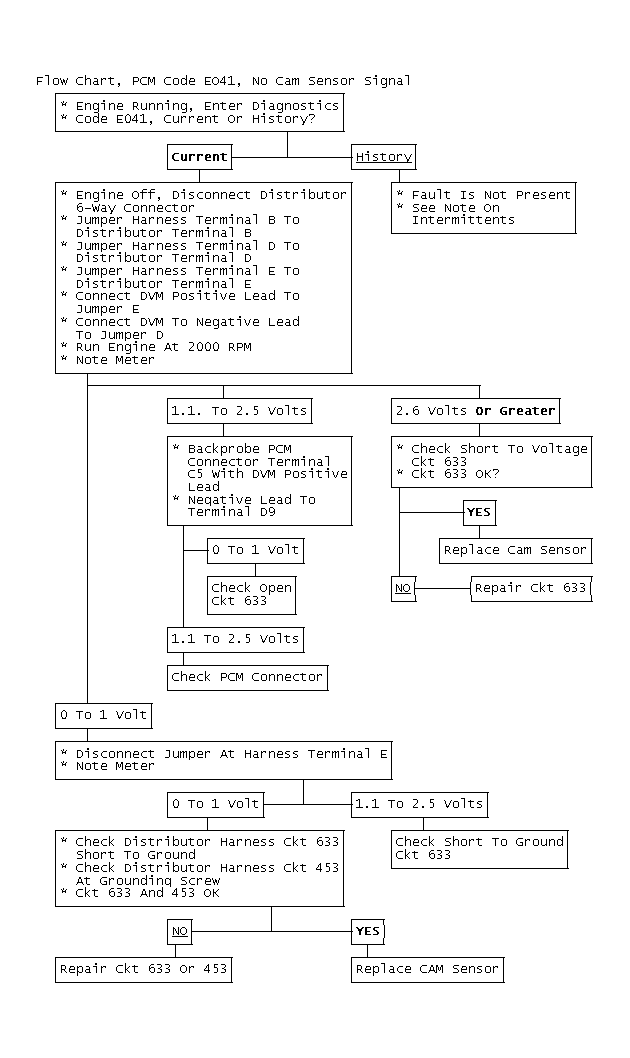

Fig 2: Flow Chart, PCM Code EO41, No Cam Sensor Signal
