Home >> Cadillac >> 1991 >> Seville V8-300 4.9L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Locks >> With Keyless Entry >> Less Remote Control

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Less Remote Control

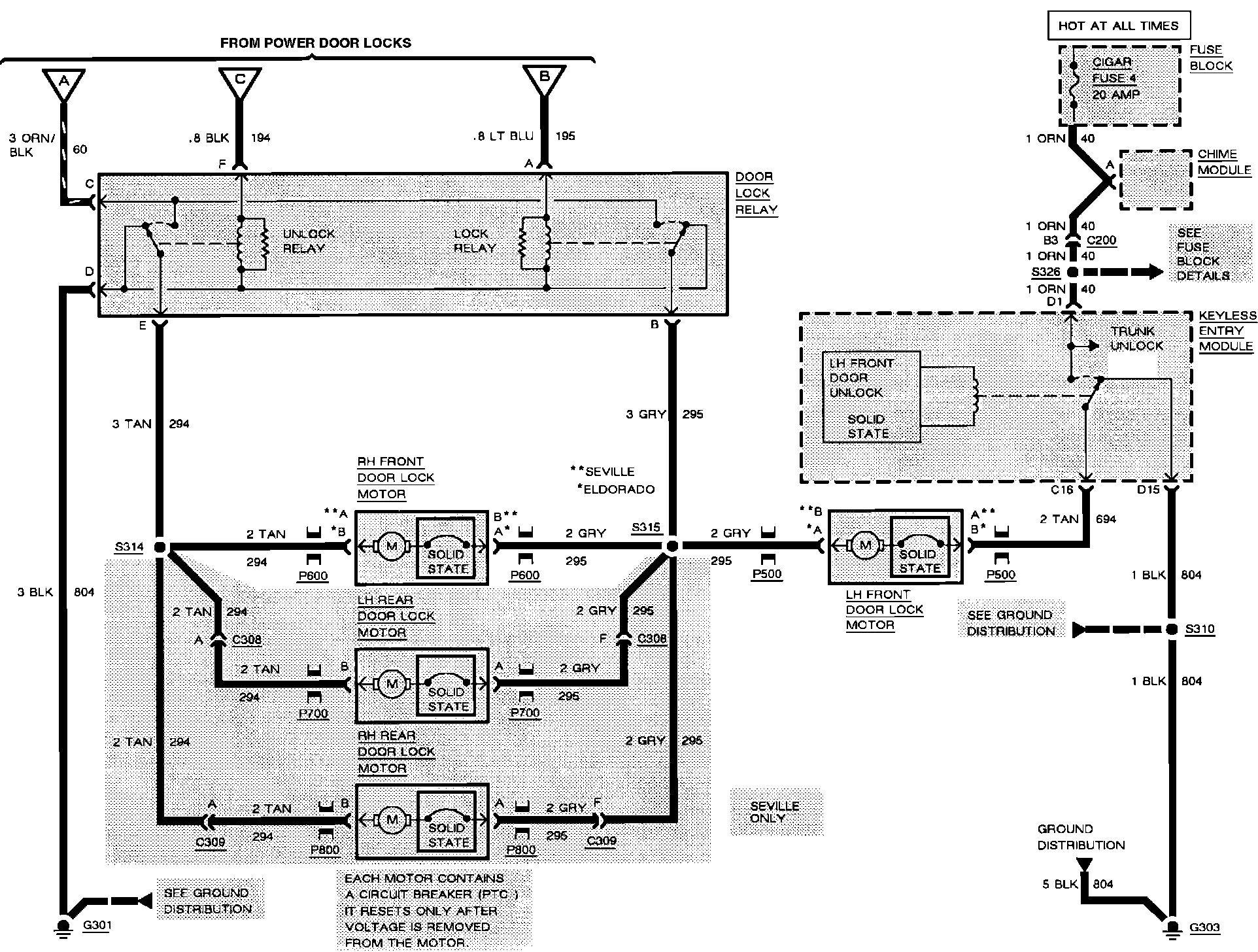

Power Door Locks. With Keyless Entry:
