Vehicle Speed Sensor: Locations

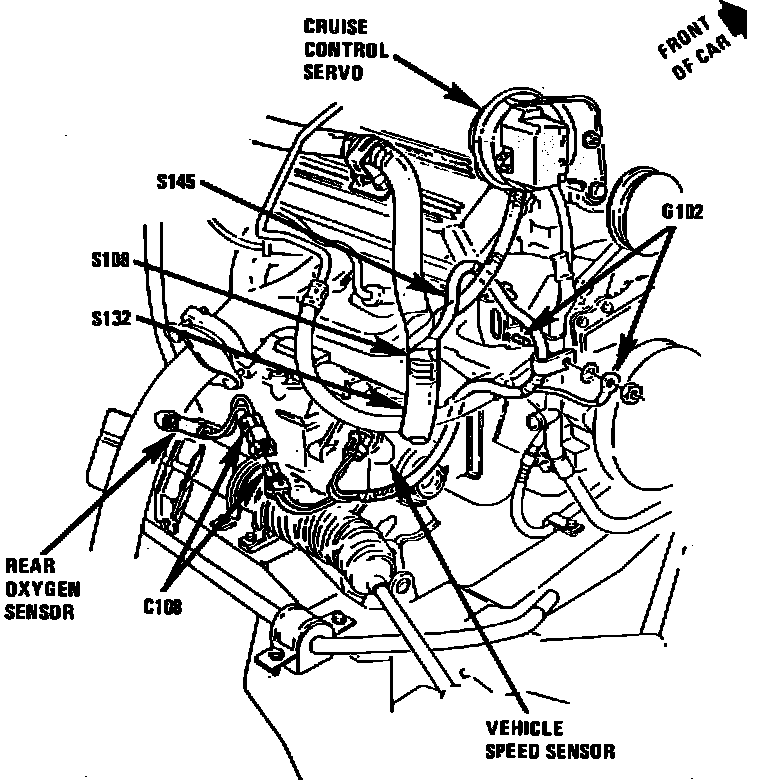

Engine Compartment Component Location.:




RH Rear Of Engine.:




Rear Of Engine, RH End Of Transaxle

Applicable to: 1991 Eldorado/Seville
