Diagnostic Testing

For diagnostic procedures, see Fig 1.

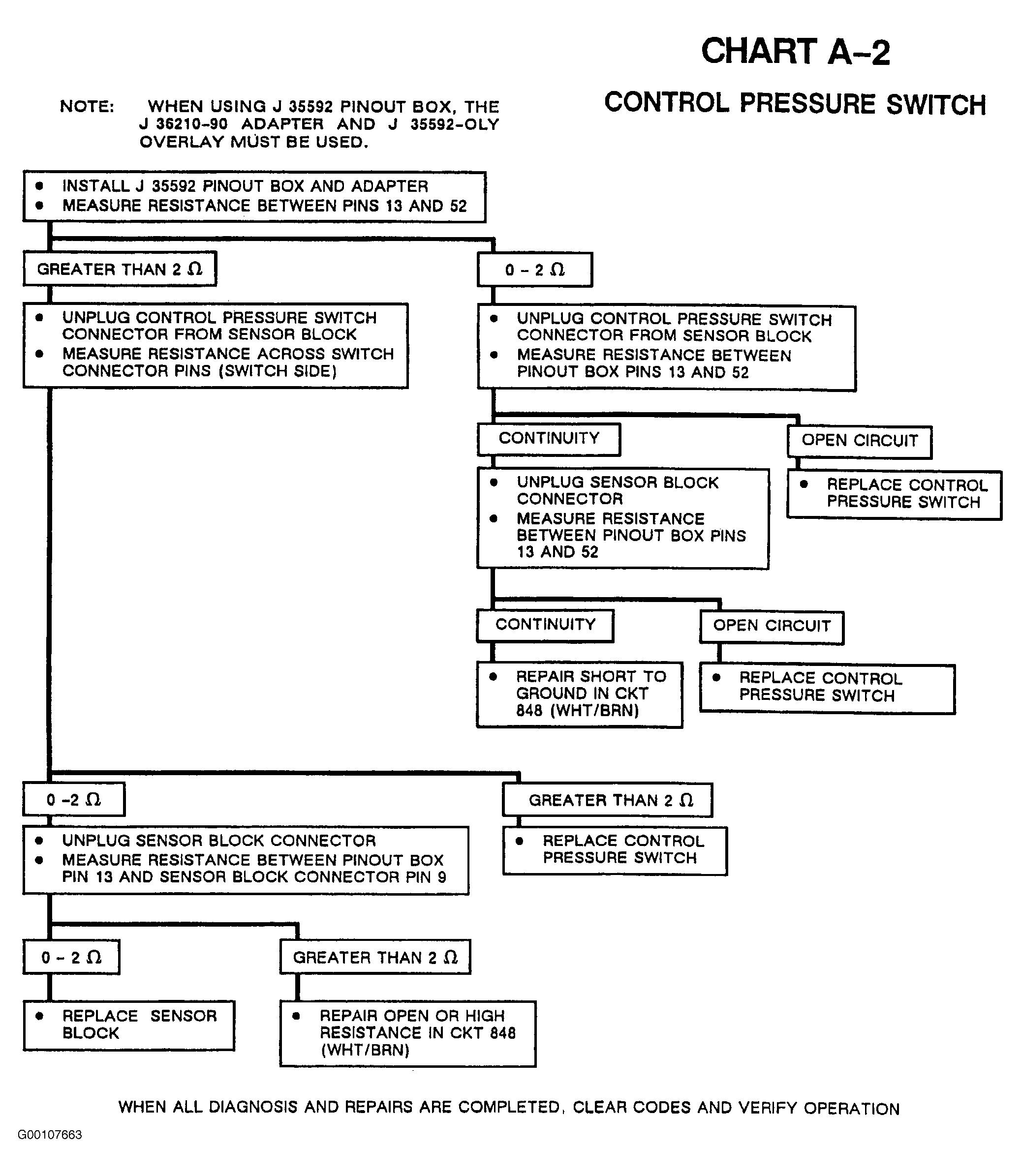

Fig 1: Chart A-2: Control Pressure Switch Diagnostic Flow Chart

Courtesy of GENERAL MOTORS CORP.
