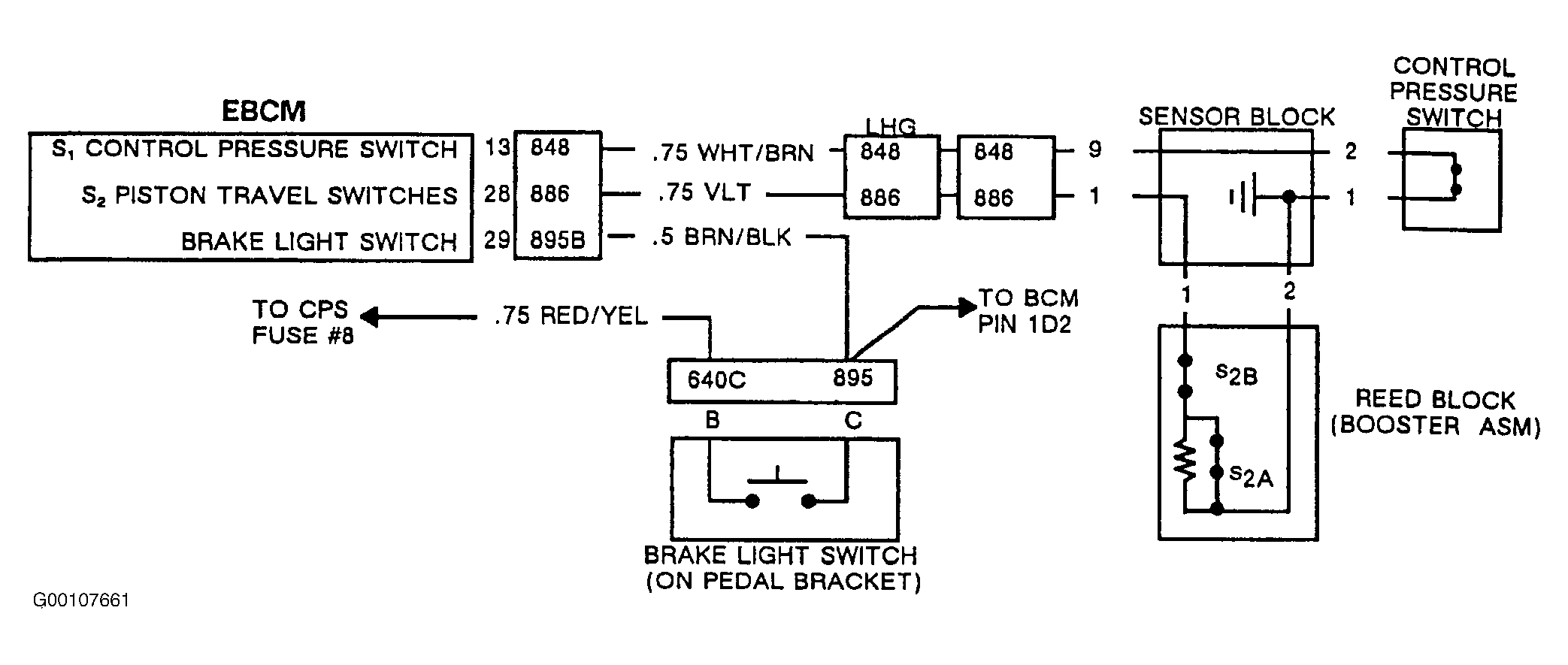

Chart A-2: Control Pressure Switch: Notes

The EBTM monitors every brake apply for a proper sequence of events in the hydraulic unit. The following switches are used to verify each apply. For circuit identification, see Figure.
