Wiring Diagrams

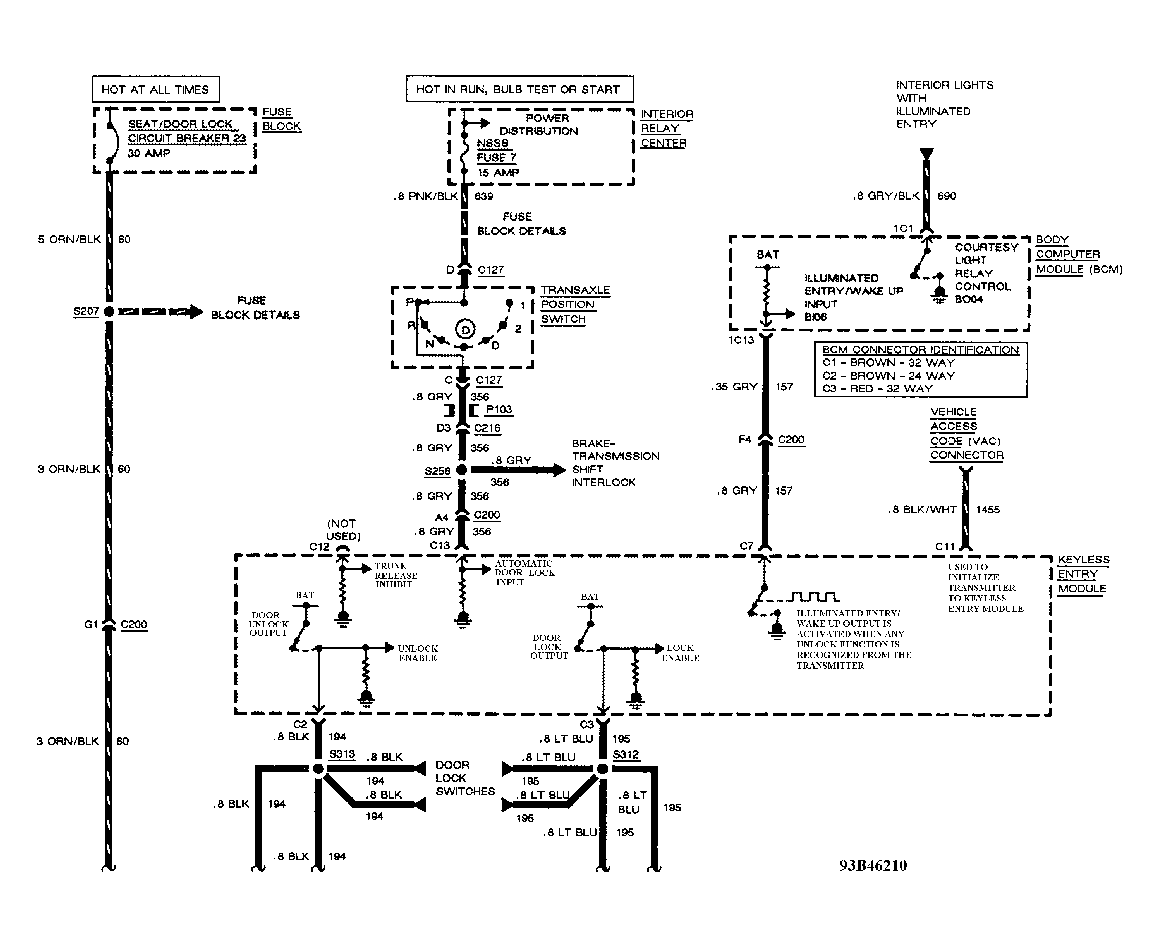

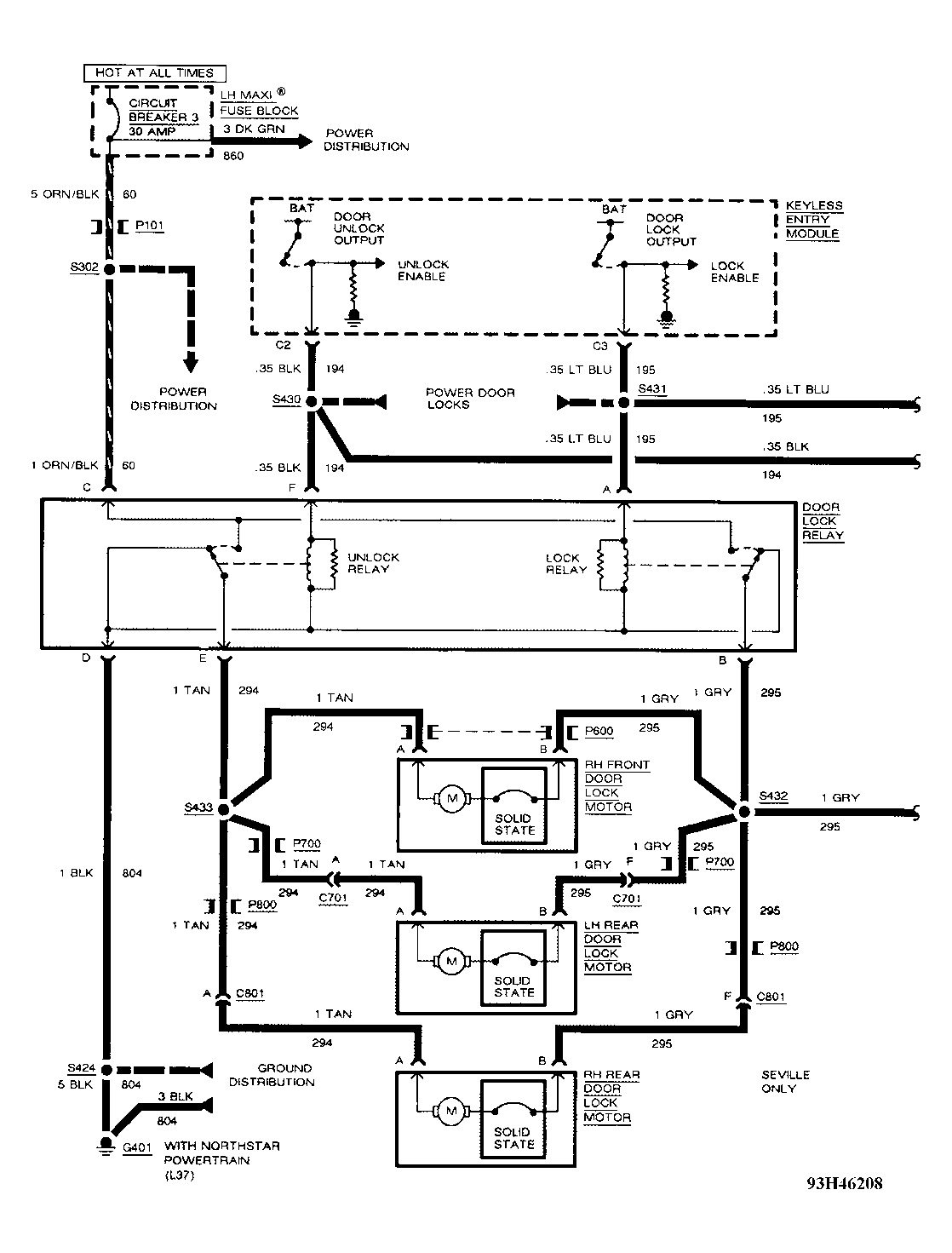

Fig 1: Keyless Entry Wiring Diagram (Eldorado & Seville - 1 Of 7)

Courtesy of GENERAL MOTORS CORP.

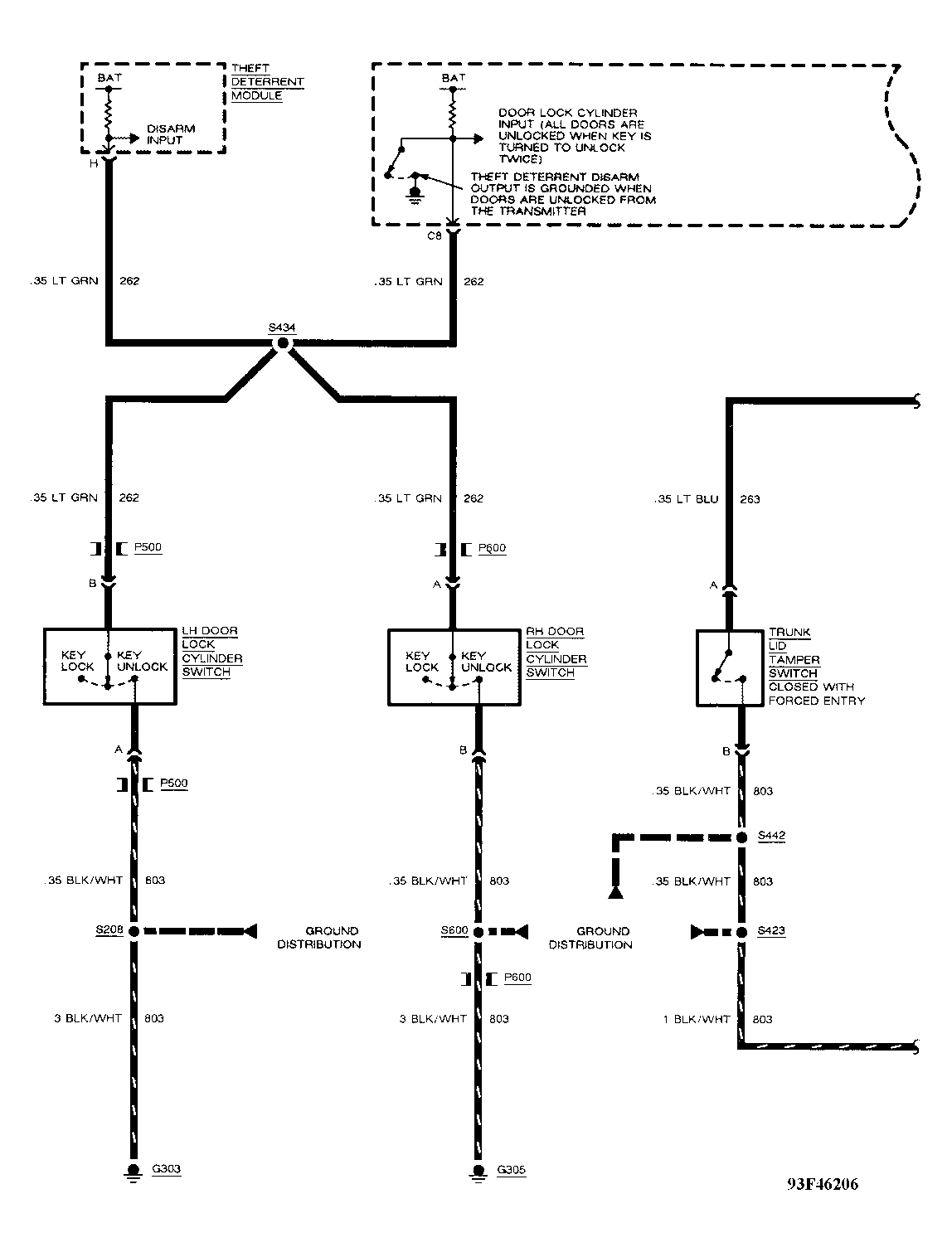

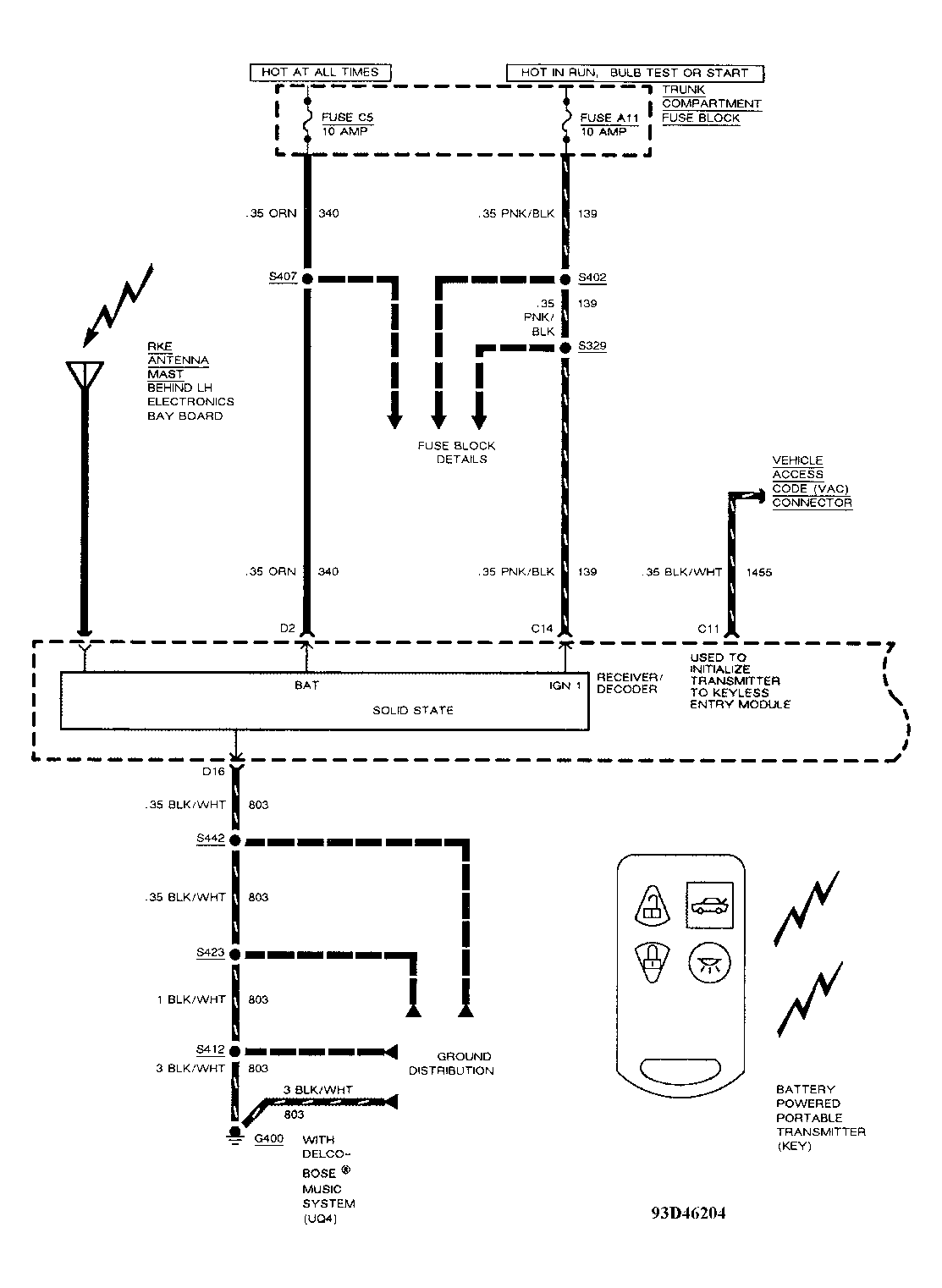

Fig 2: Keyless Entry Wiring Diagram (Eldorado & Seville - 2 Of 7)

Courtesy of GENERAL MOTORS CORP.

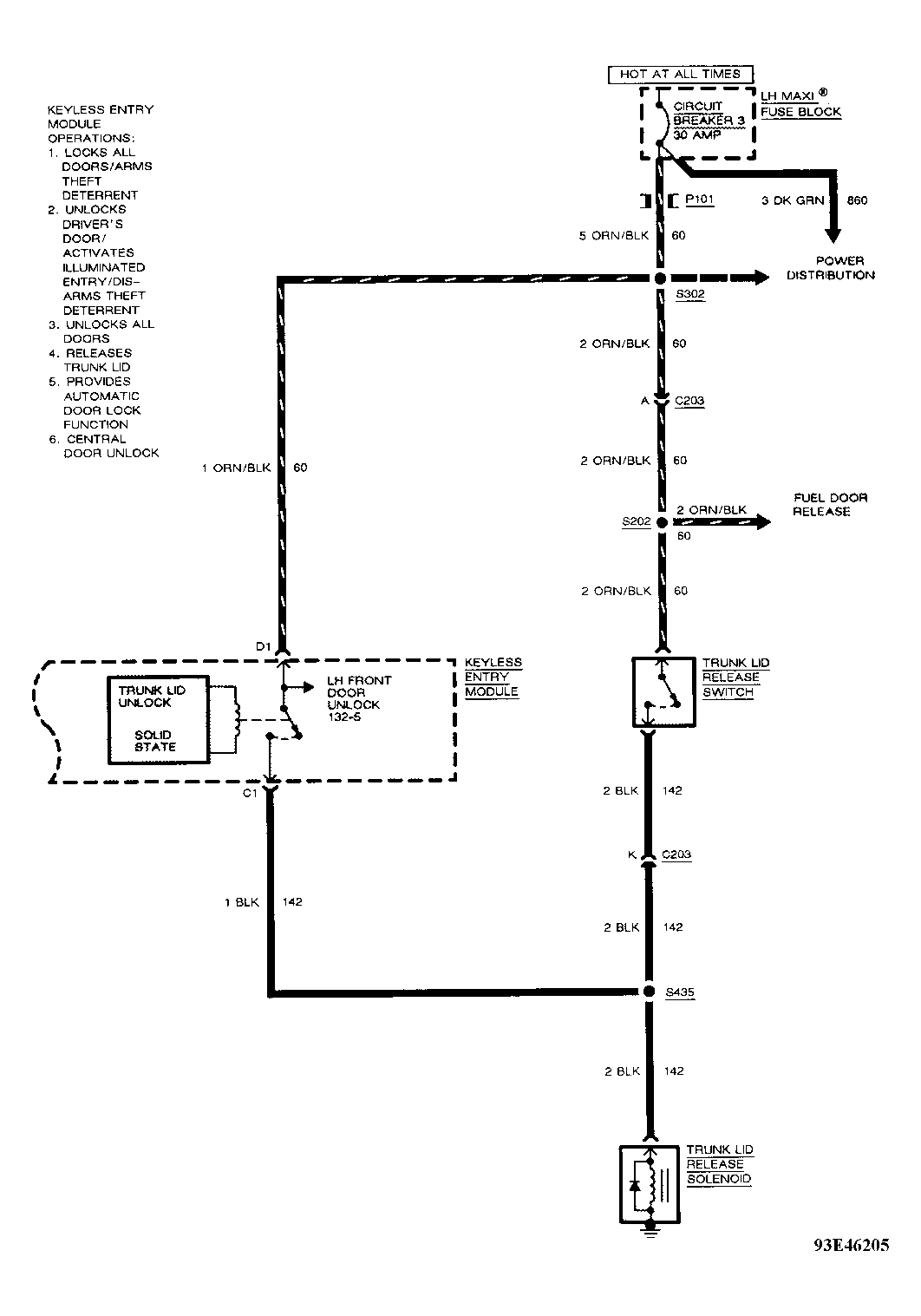

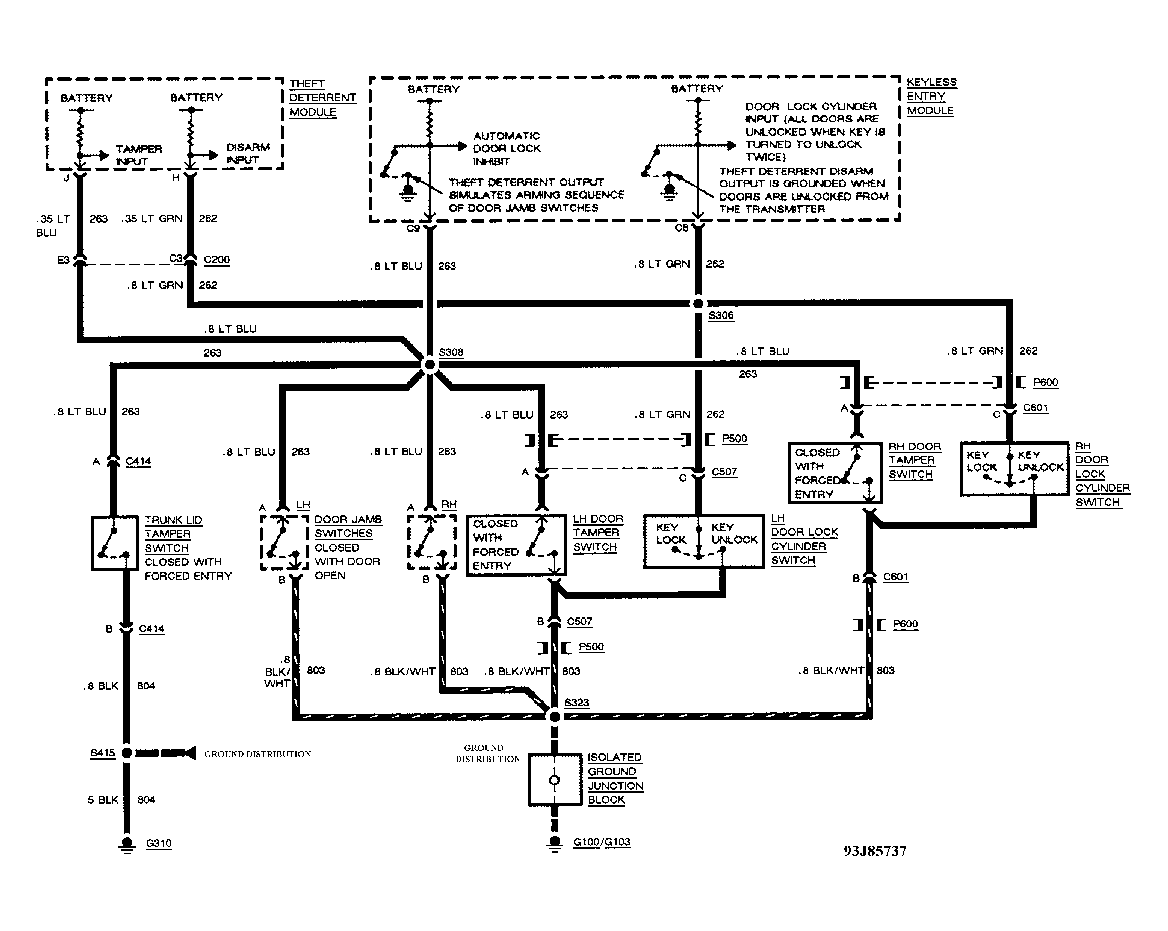

Fig 3: Keyless Entry Wiring Diagram (Eldorado & Seville - 3 Of 7)

Courtesy of GENERAL MOTORS CORP.

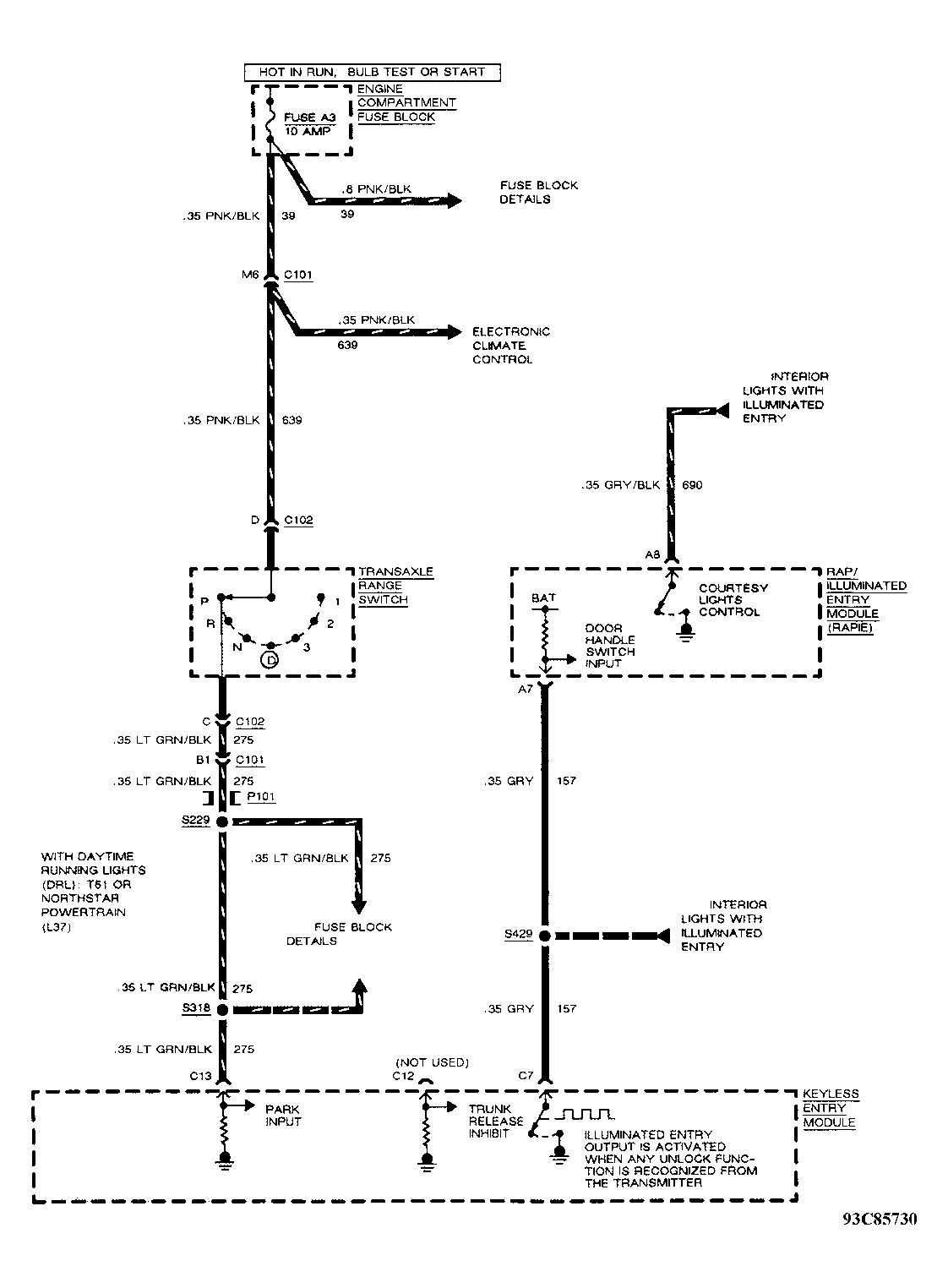

Fig 4: Keyless Entry Wiring Diagram (Eldorado & Seville - 4 Of 7)

Courtesy of GENERAL MOTORS CORP.

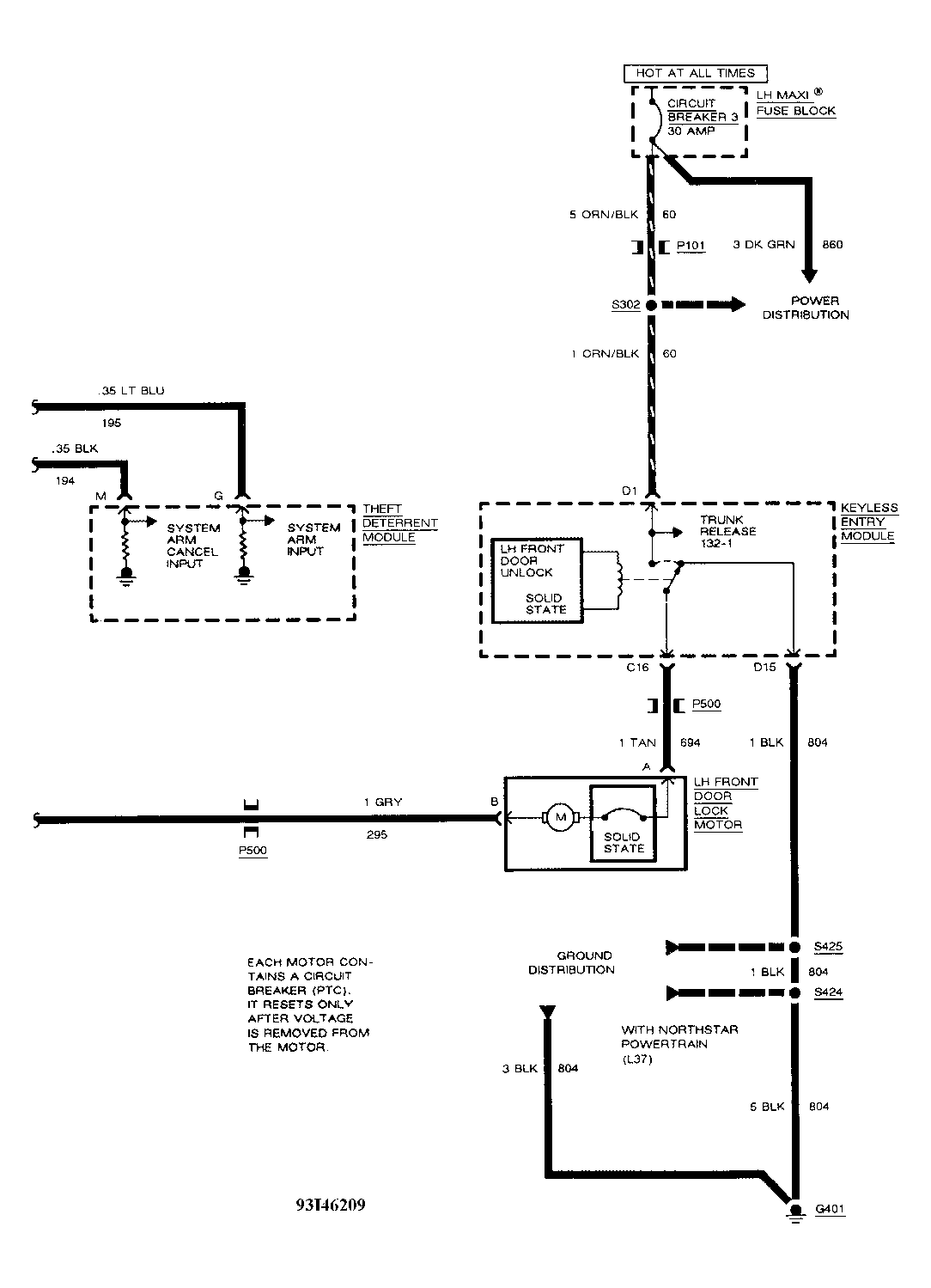

Fig 5: Keyless Entry Wiring Diagram (Eldorado & Seville - 5 Of 7)

Courtesy of GENERAL MOTORS CORP.

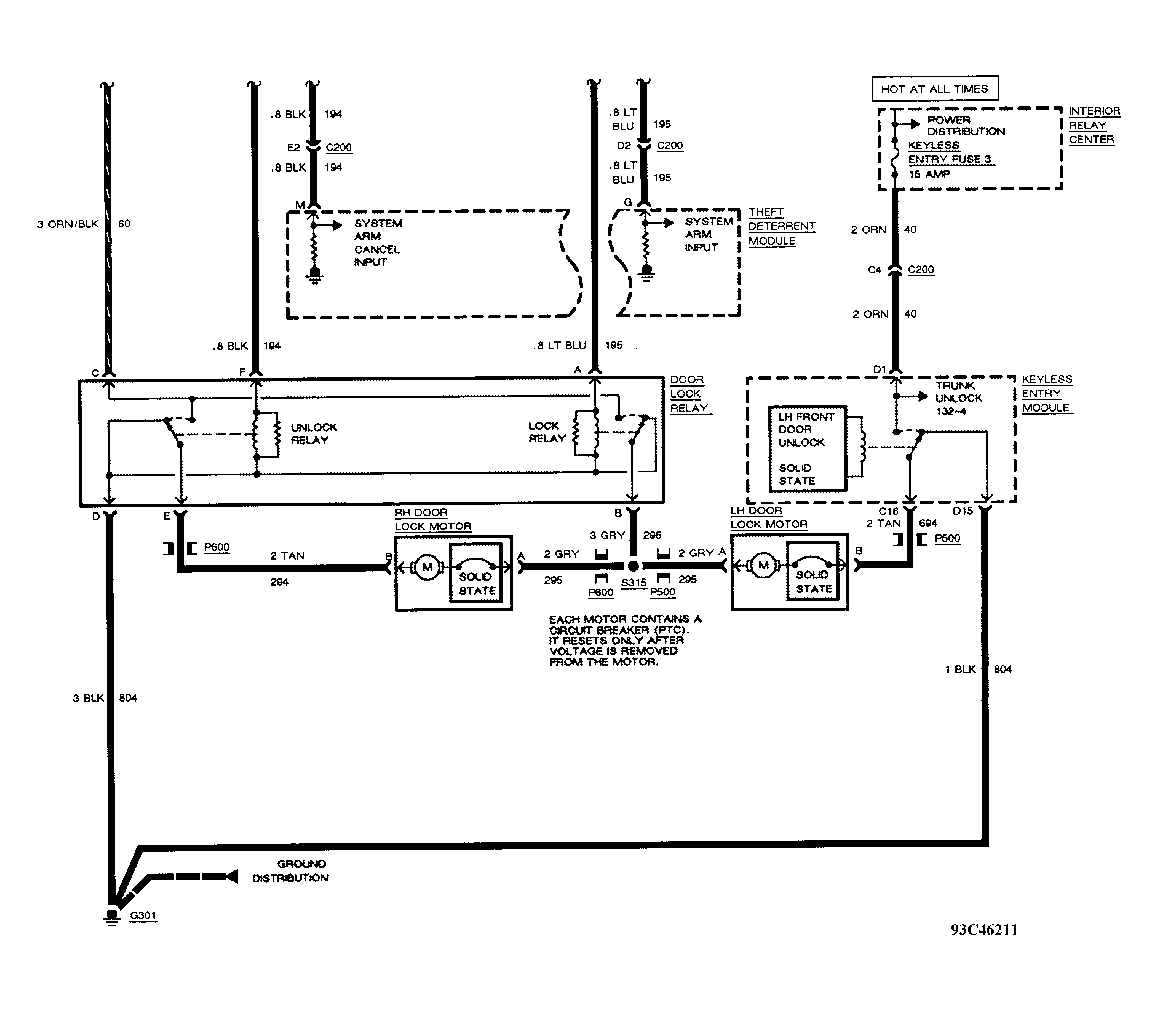

Fig 6: Keyless Entry Wiring Diagram (Eldorado & Seville - 6 Of 7)

Courtesy of GENERAL MOTORS CORP.

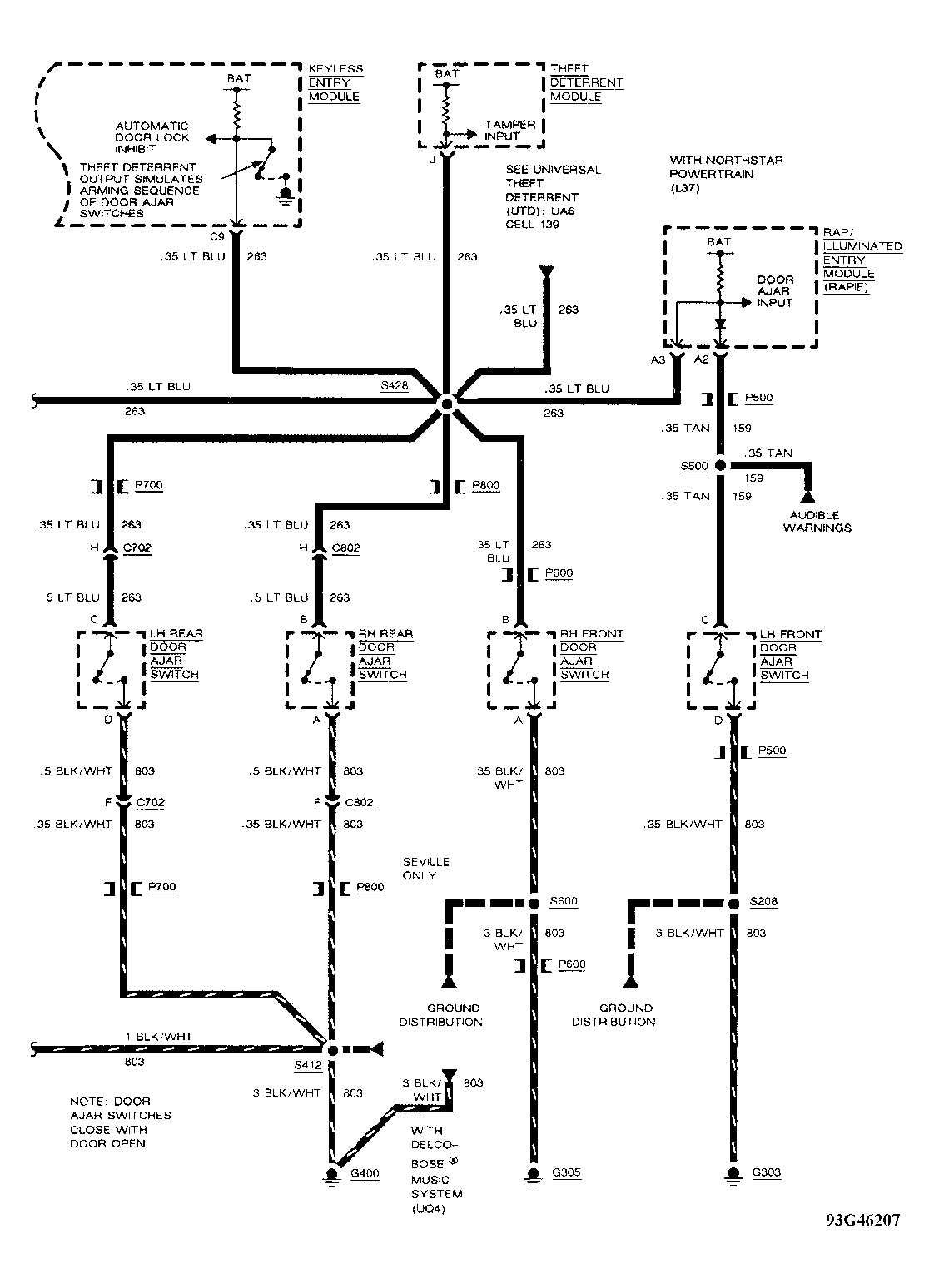

Fig 7: Keyless Entry Wiring Diagram (Eldorado & Seville - 7 Of 7)

Courtesy of GENERAL MOTORS CORP.

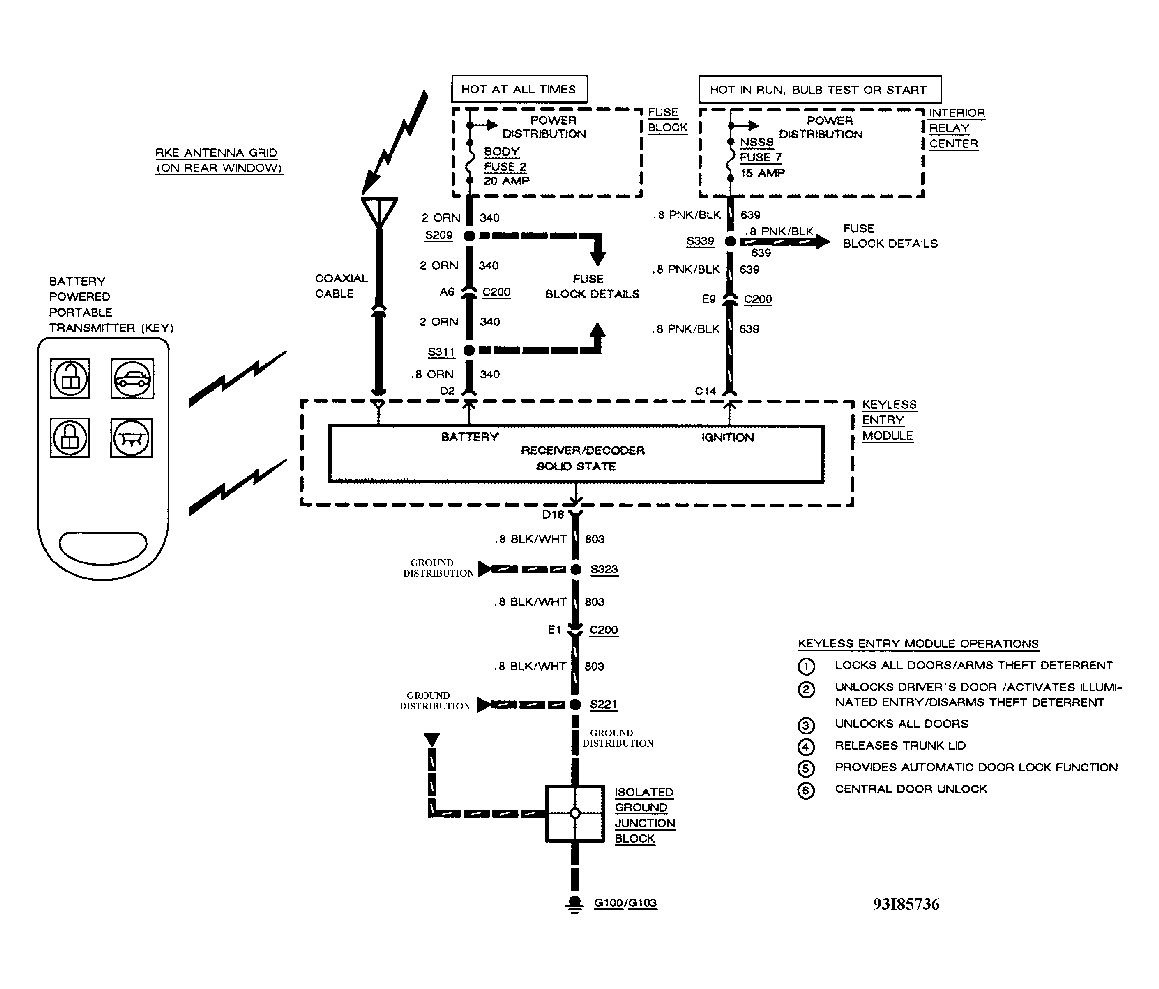

Fig 8: Keyless Entry Wiring Diagram (Riviera - 1 Of 5)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Keyless Entry Wiring Diagram (Riviera - 2 Of 5)

Courtesy of GENERAL MOTORS CORP.

Fig 10: Keyless Entry Wiring Diagram (Riviera - 3 Of 5)

Courtesy of GENERAL MOTORS CORP.

Fig 11: Keyless Entry Wiring Diagram (Riviera - 4 Of 5)

Courtesy of GENERAL MOTORS CORP.

Fig 12: Keyless Entry Wiring Diagram (Riviera - 5 Of 5)
