Automatic Tests

Select AUTO TEST. Press ENTER when ready. Valves can be heard and felt cycling from hydraulic control unit; have assistant verify that pump motor turned on. Go to diagnostic charts if codes are set.

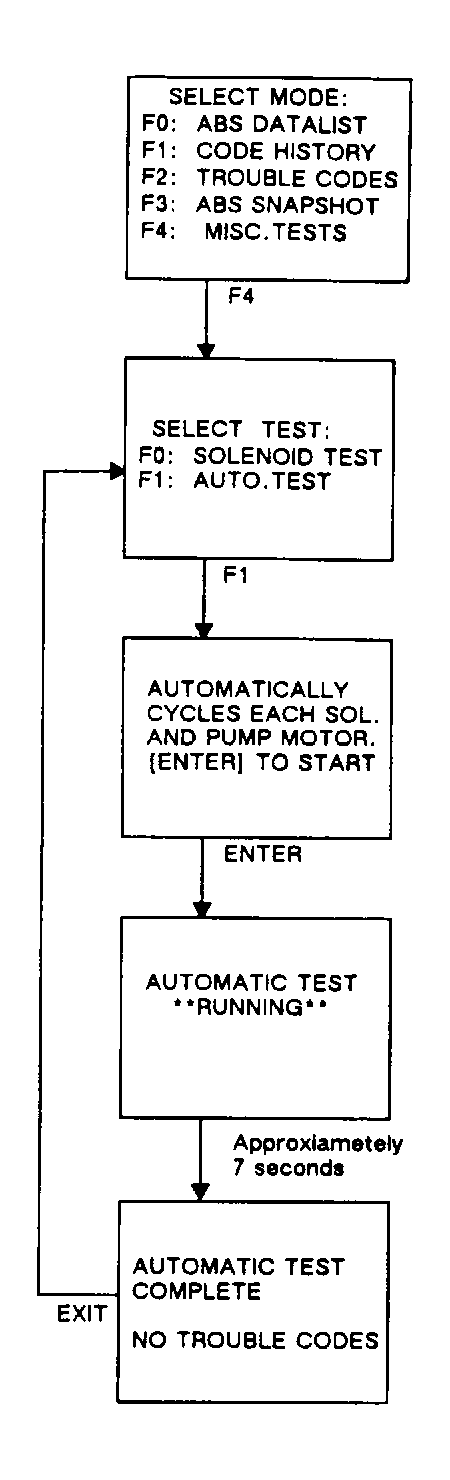

Fig 1: TECH 1 Automatic Test Mode

Courtesy of GENERAL MOTORS CORP.
