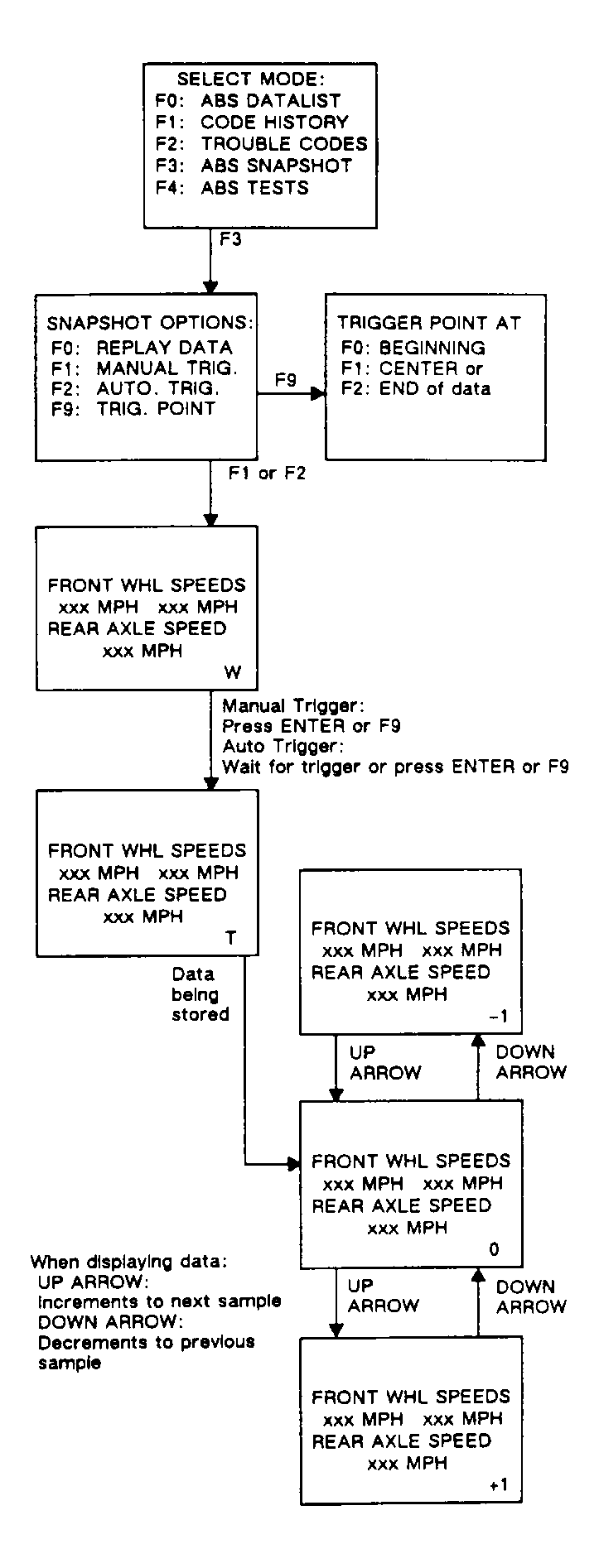

Mode F3
ABS SNAPSHOT mode will help isolate intermittent problems by capturing data before and after condition.
By selecting Manual Trigger, TECH 1 will wait for ENTER to be pressed before storing speed sensor information. All stored information can be displayed and examined for conditions which might indicate a problem.
By selecting Automatic Trigger, TECH 1 will capture data which deviates from normal conditions but alone may not set a code, such as driving over bumpy roads or over railroad tracks. Condition may be caused by loose connections or intermittent wiring problems. While TECH 1 is waiting for a trigger, the ENTER or F9 key may also be used to force a trigger.
