Manifold Pressure/Vacuum Sensor: Service and Repair

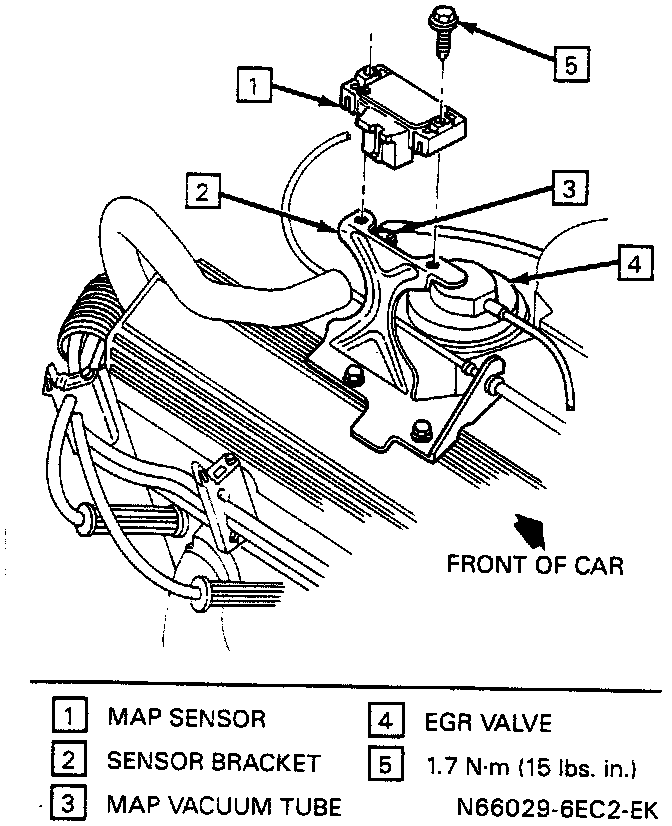

MAP Sensor Service:

REMOVE OR DISCONNECT
- MAP sensor electrical connector.
- MAP sensor vacuum hose.
- Screws securing MAP sensor to the MAP bracket.

INSTALL OR CONNECT
- MAP sensor to the MAP bracket with two attaching screws. Torque to 1.7 Nm (15 in lb).
- MAP sensor vacuum hose.
- Electrical connector.

LOCATION
Top rear of engine.
