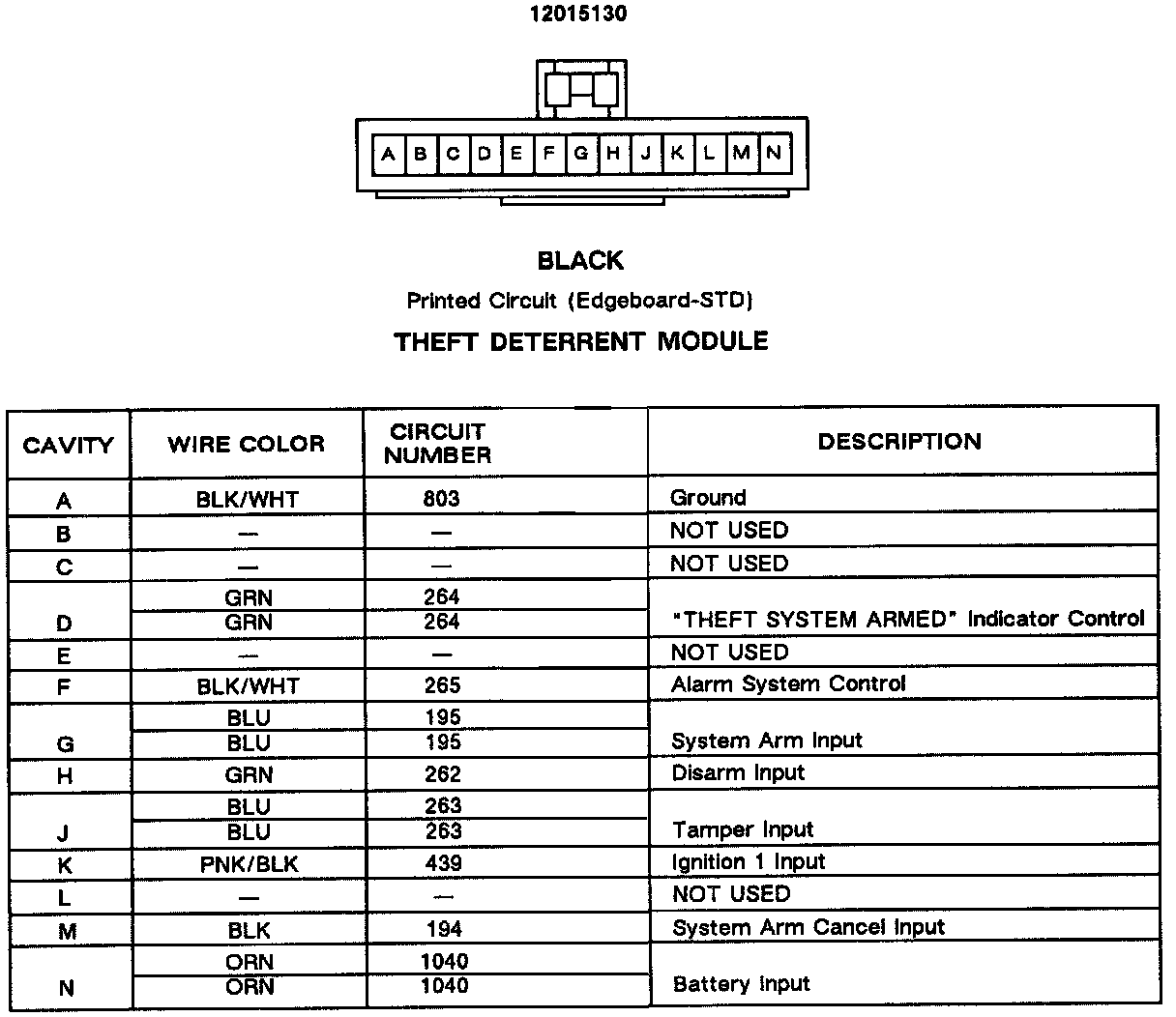

Theft Deterrent Module

Harness Connector Faces: Stowage Compartment RH Micro Rely Center Part 2 Of 2:
