Removal & Installation

Remove climate control panel/driver information center assembly. See COMBO-PANEL (CLIMATE CONTROL DRIVER INFORMATION CENTER) in INSTRUMENT PANEL & GAUGES article in ACCESSORIES & EQUIPMENT. Remove BCM bracket. Disconnect and remove BCM. See Fig 1 . To install, reverse removal procedure.

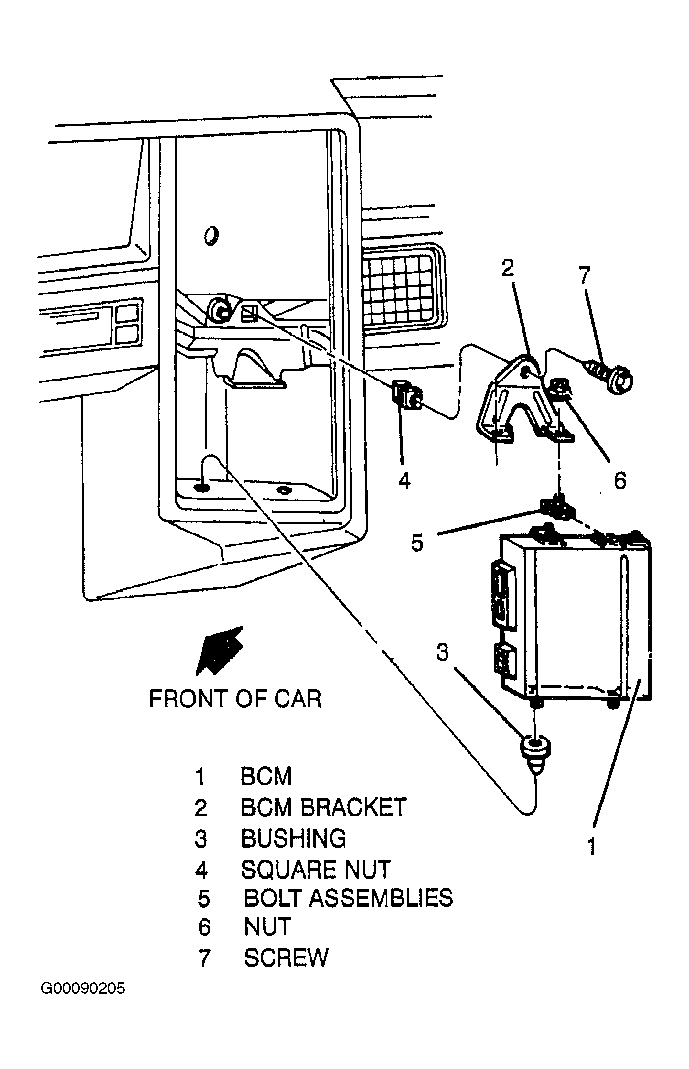

Fig 1: Removing Body Control Module
G00090205Courtesy of GENERAL MOTORS CORP.
