Abs Visual Inspection

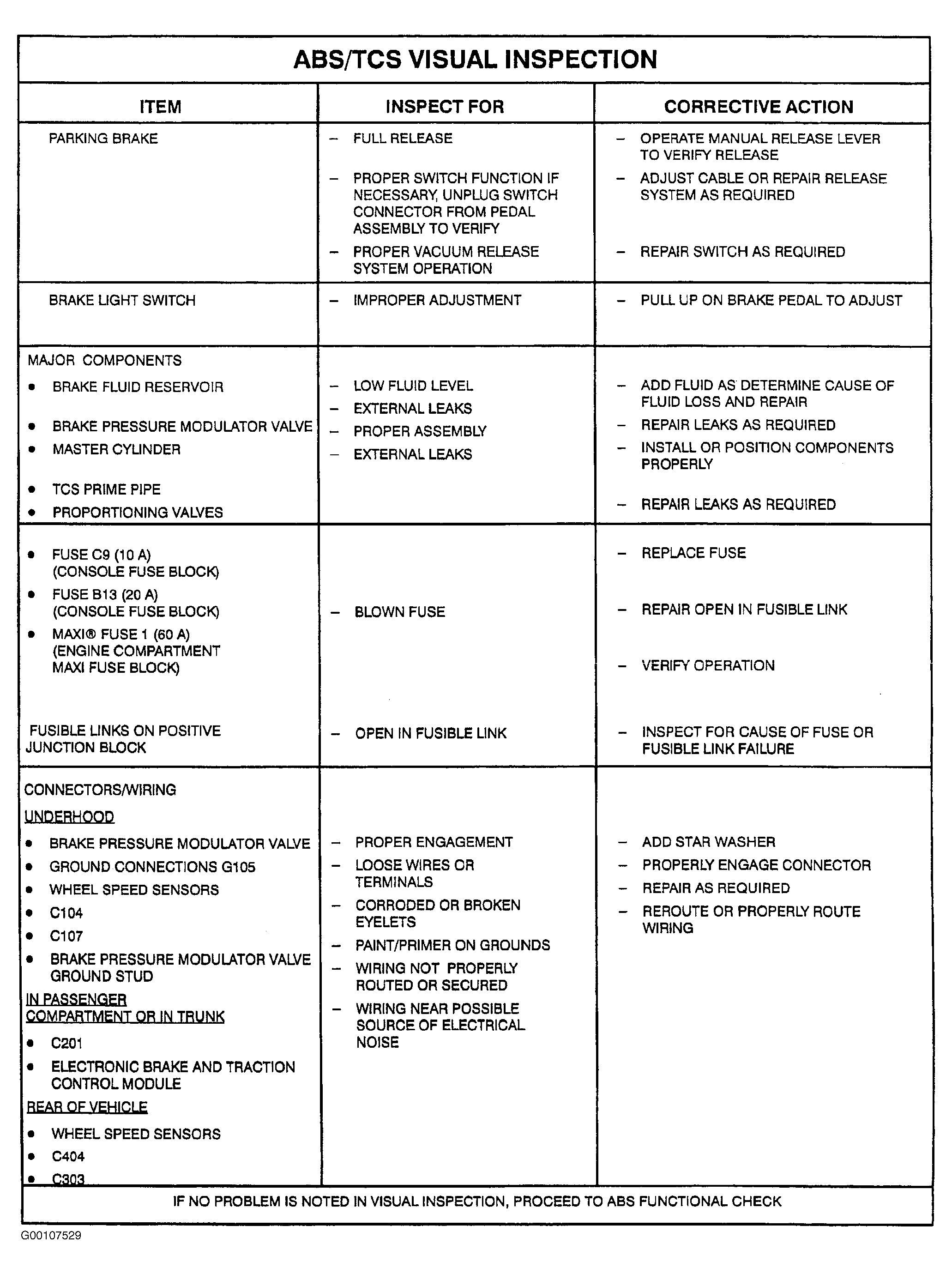

The ABS/TCS Visual Inspection consists of an inspection of easily accessible components which could cause an apparent anti-lock or traction control system malfunction. See Fig 1. A thorough visual inspection may quickly identify the cause of a malfunction and eliminate the need for additional diagnostic procedures.
