Keyless Entry Module: Removal

  1. Disconnect negative battery cable.
  2. Remove glove box module. See GLOVE BOX MODULE  .
  3. Remove screws holding module. See Fig 1 .
  4. Disconnect electrical connectors.

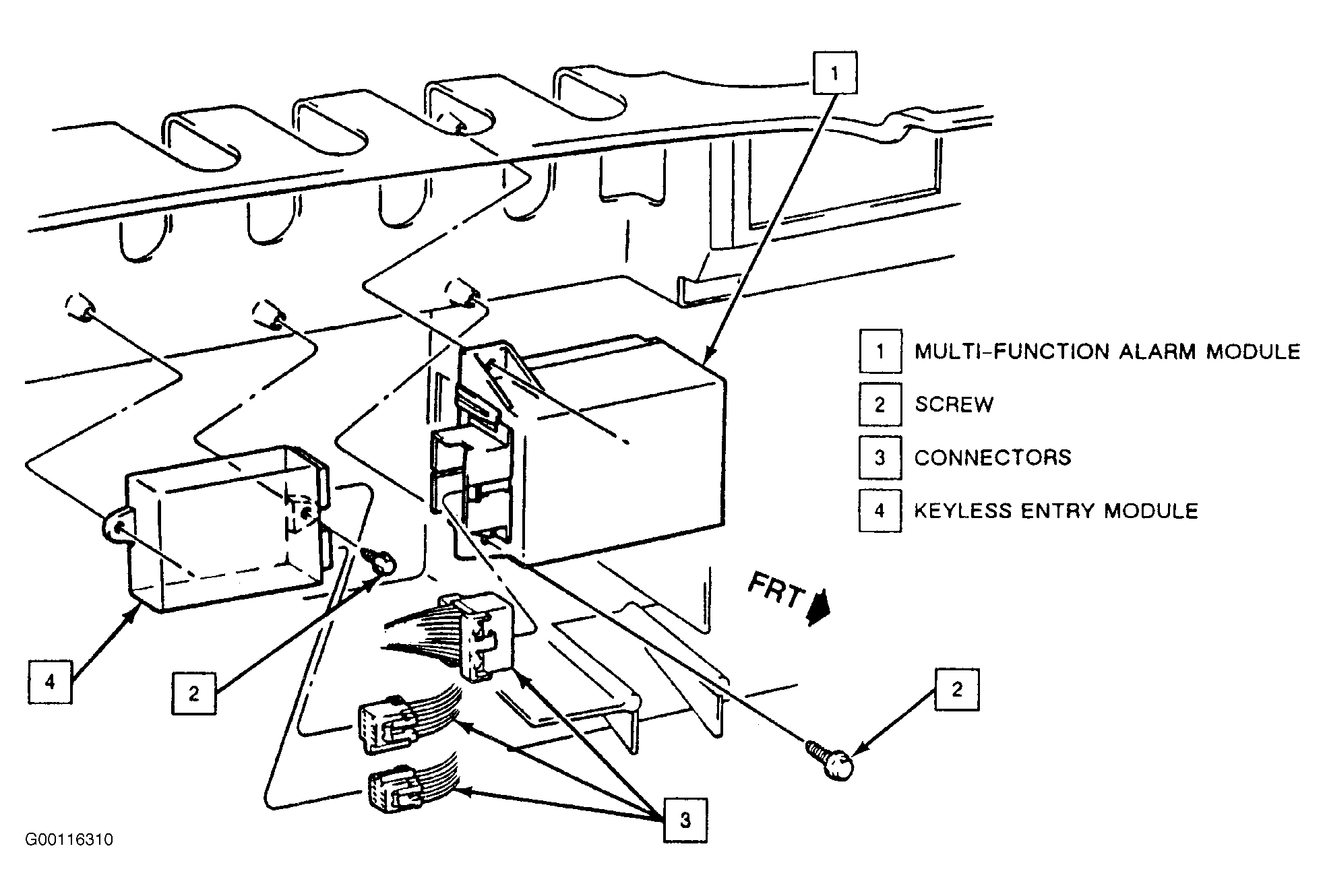

Fig 1: Removing Keyless Entry Module
G00116310Courtesy of GENERAL MOTORS CORP.
