Pcm Code P028 - Transaxle Pressure Switch/Circuit Problem

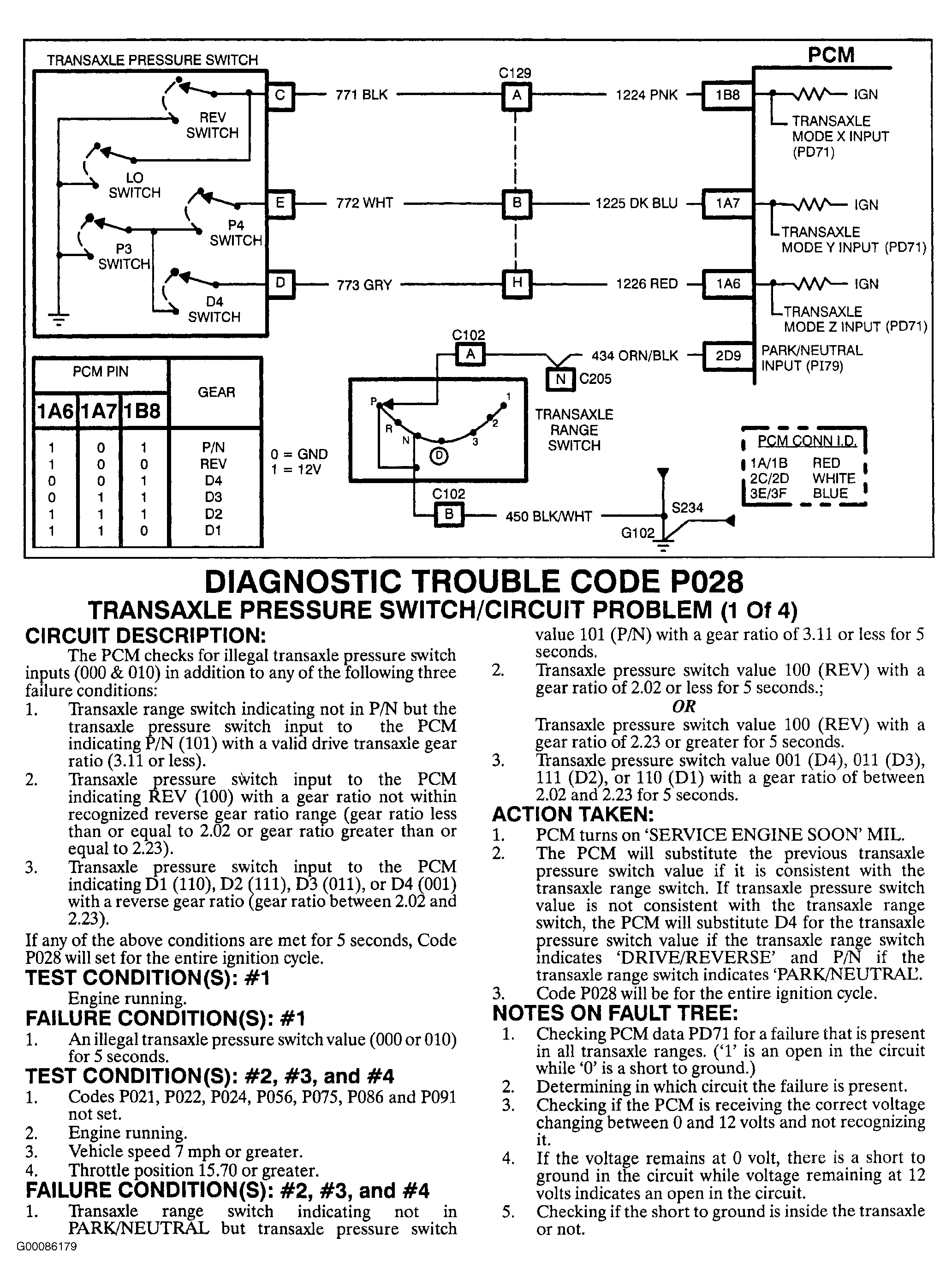

Fig 1: PCM Code P028 Schematic - (1 Of 4)

Courtesy of GENERAL MOTORS CORP.

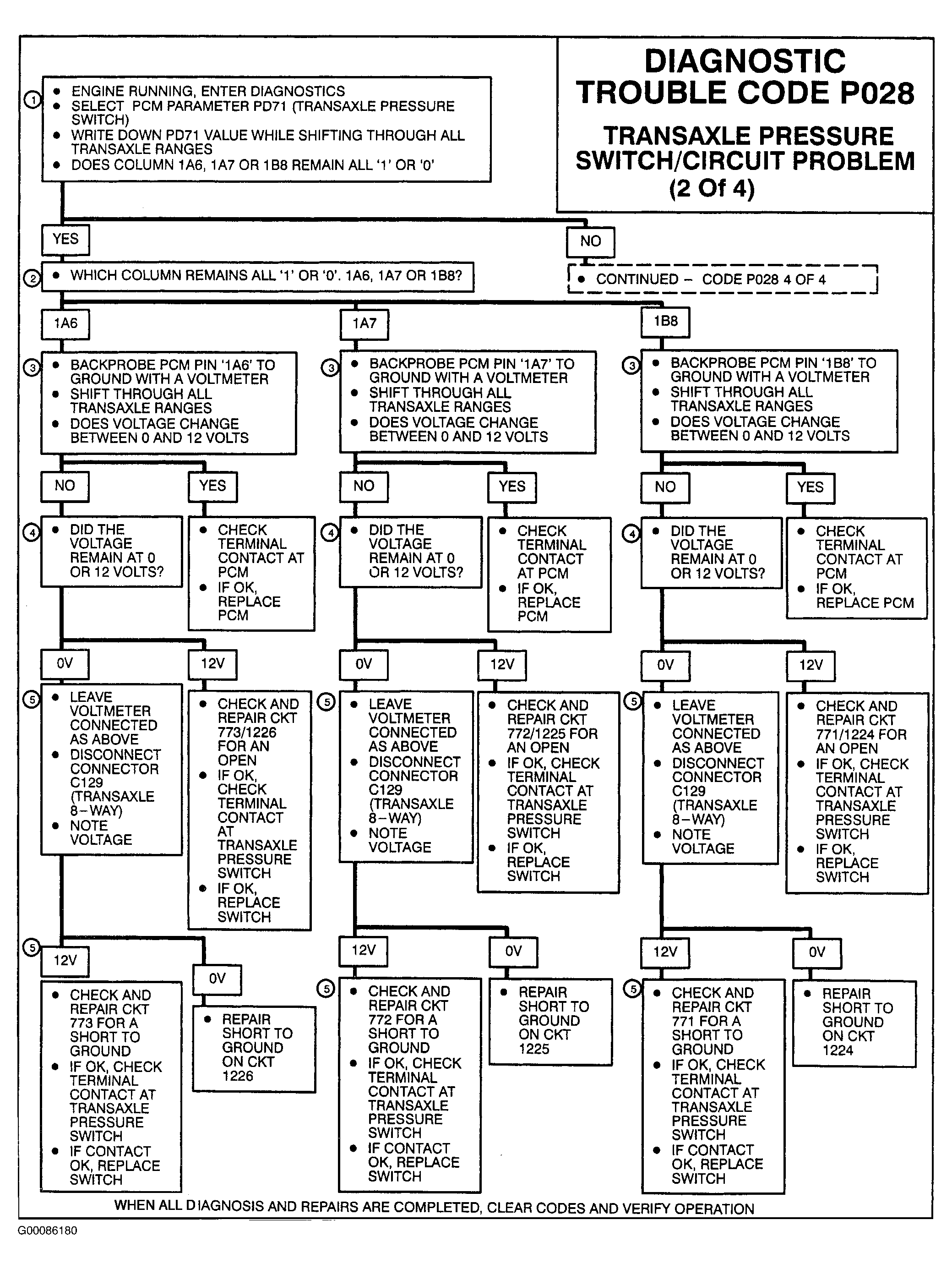

Fig 2: PCM Code P028 Flow Chart - (2 Of 4)

Courtesy of GENERAL MOTORS CORP.

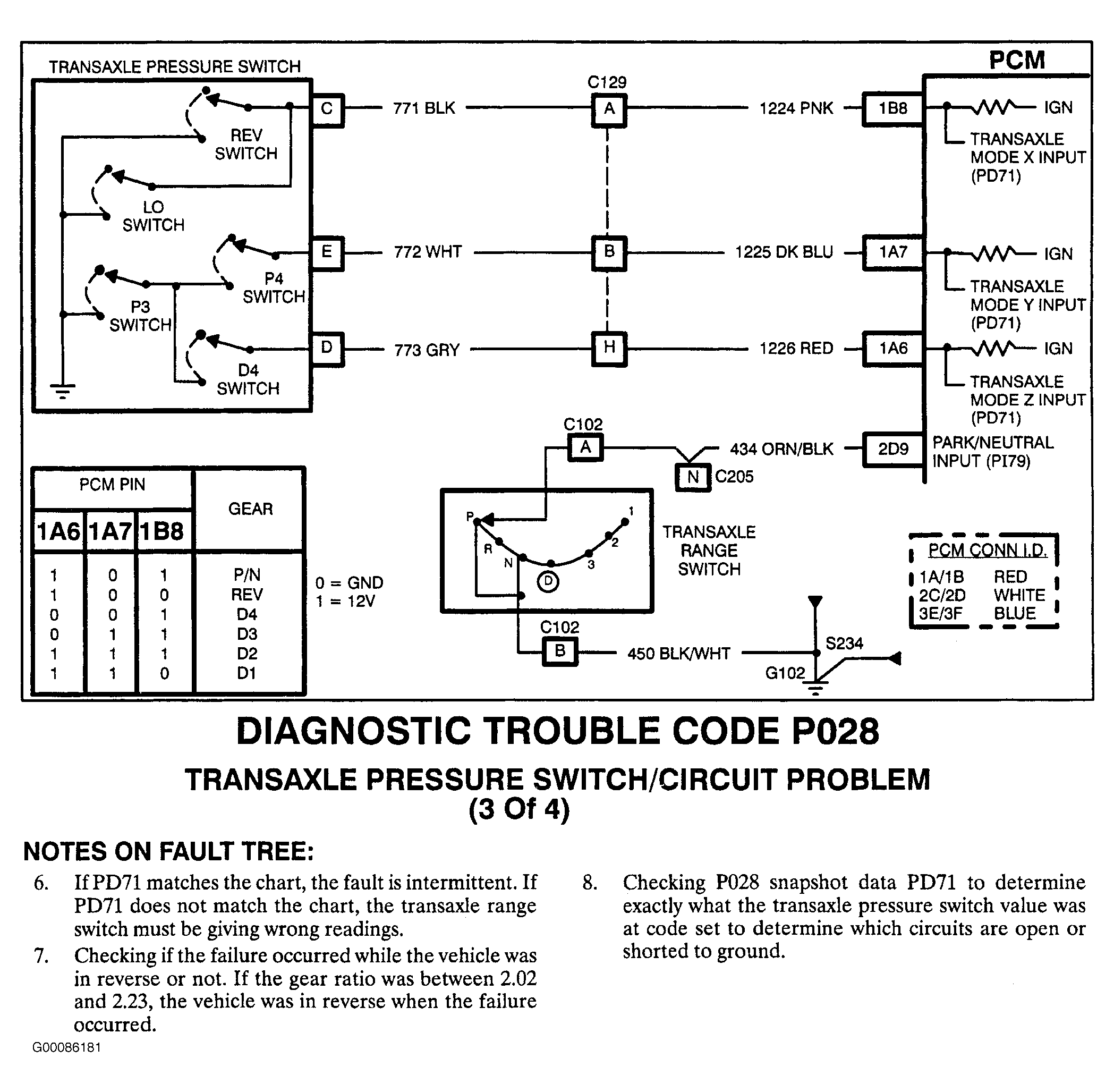

Fig 3: PCM Code P028 Schematic (3 Of 4)

Courtesy of GENERAL MOTORS CORP.

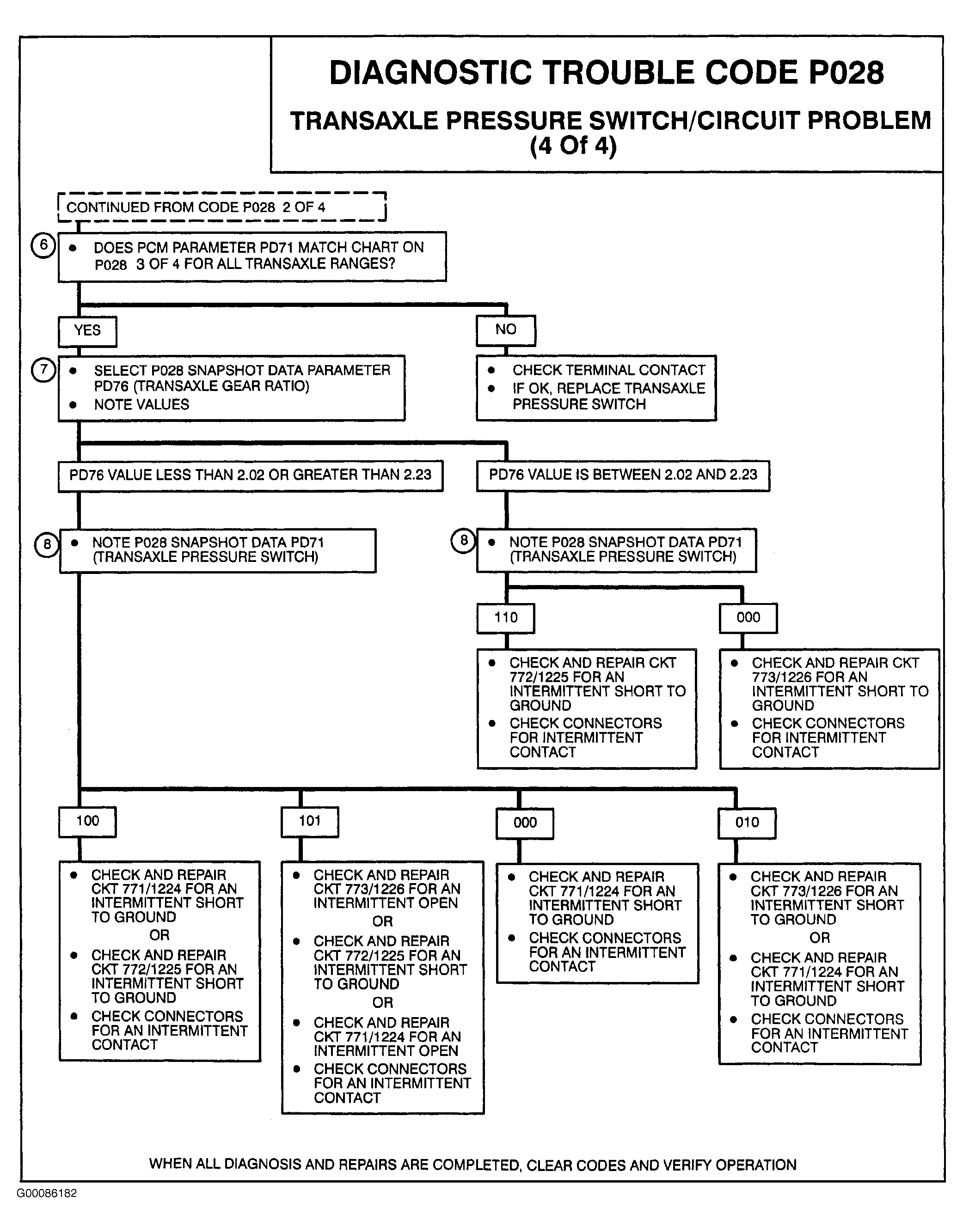

Fig 4: PCM Code P028 Flow Chart (4 Of 4)

Courtesy of GENERAL MOTORS CORP.
