Pcm Code P063 - Vehicle Speed & Set Speed Difference Too High: Action

PCM disengages cruise control.

Fig 1: PCM Code P063 Schematic - Vehicle Speed & Set Speed Difference Too High
G93B40338Courtesy of GENERAL MOTORS CORP.

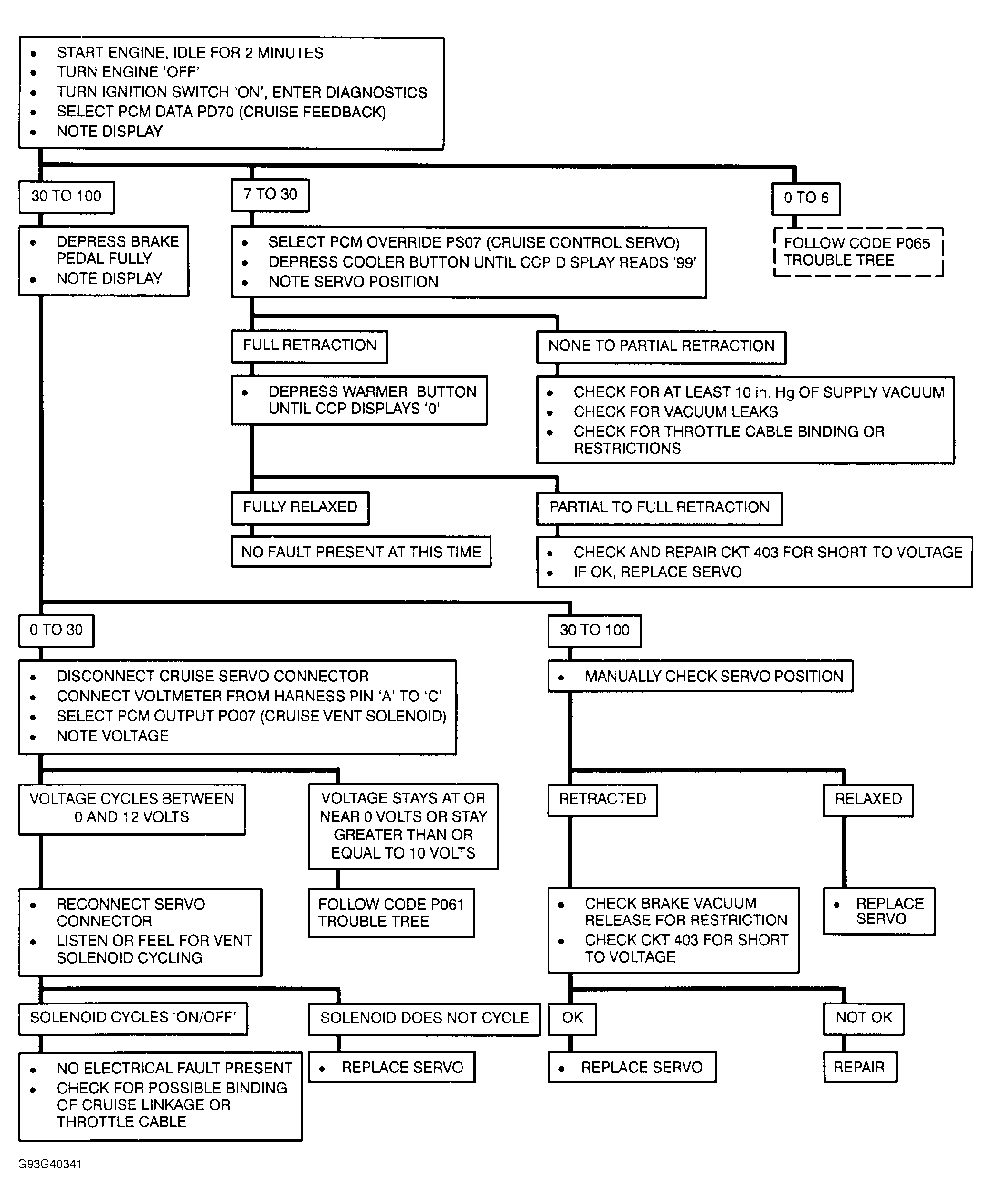

Fig 2: PCM Code P063 Flow Chart - Vehicle Speed & Set Speed Difference Too High
G93G40341Courtesy of GENERAL MOTORS CORP.
