Pcm Code P106 - Stop Lamp Switch Input Circuit Problem

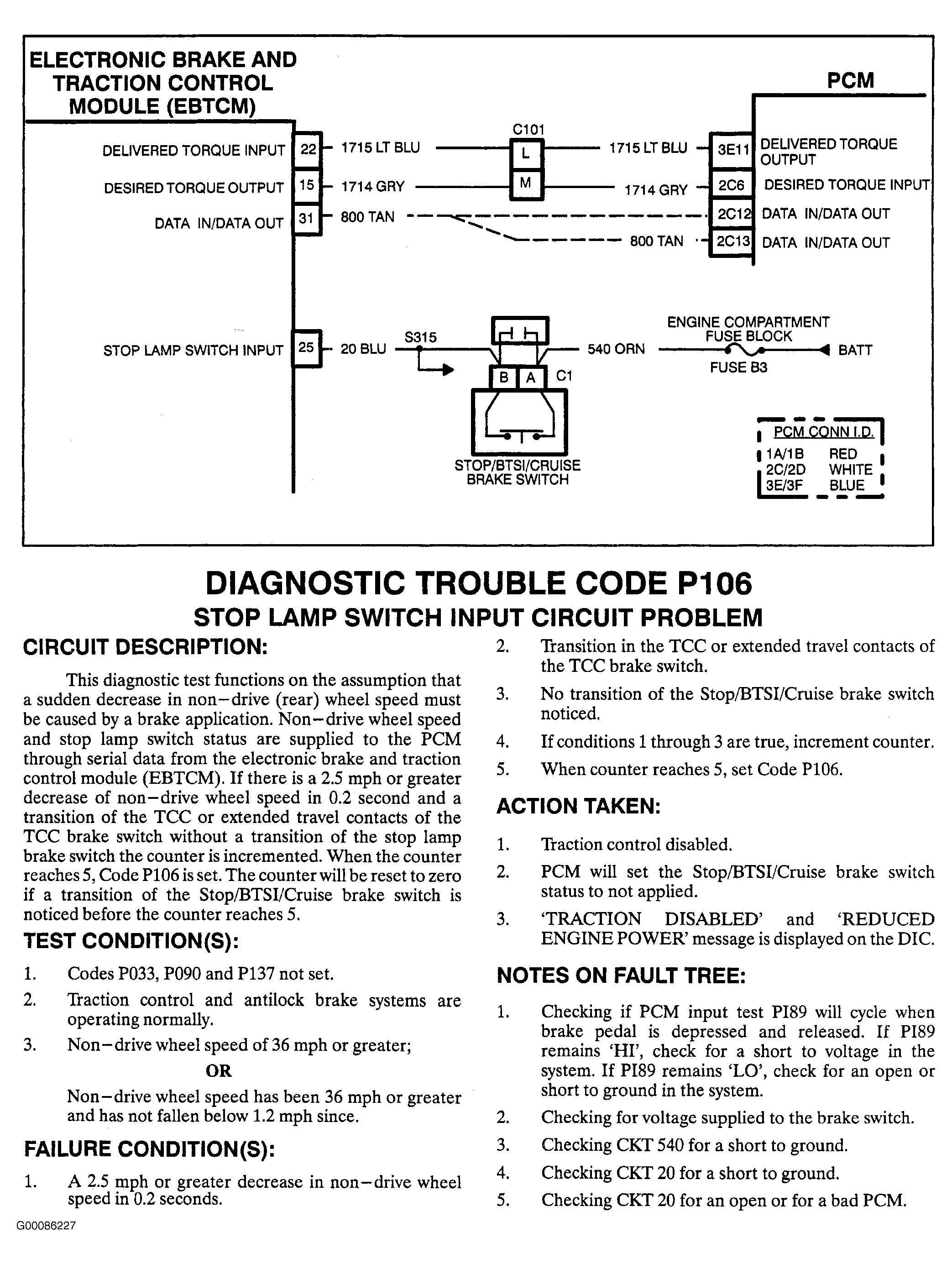

Fig 1: PCM Code P106 Schematic - (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

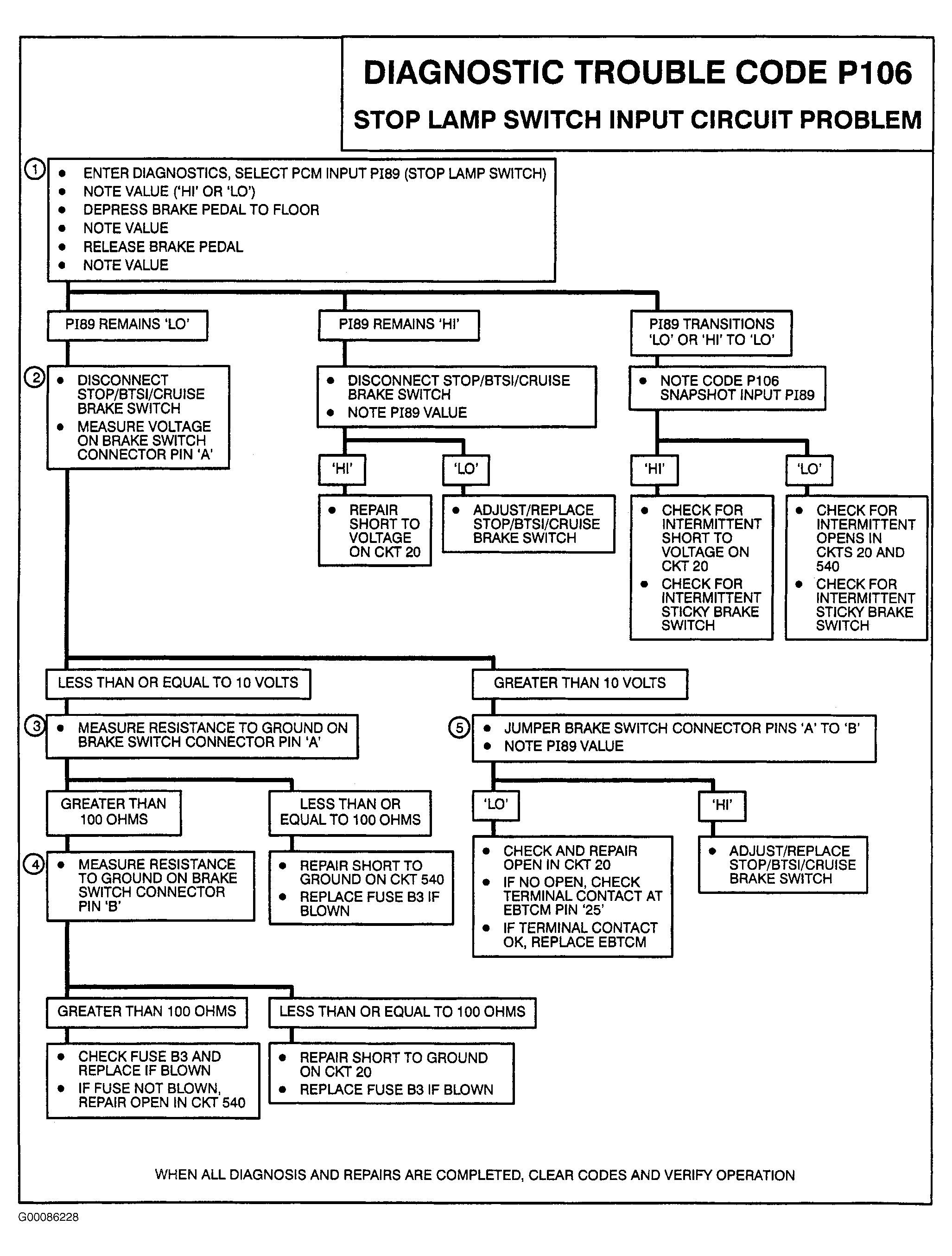

Fig 2: PCM Code P106 Flow Chart - (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
