Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Module | Behind rear seat area. | |
| Air Bag System | ||
| Inflator Module | On center of steering wheel. | |
| Resistor Module | Behind left side of dash, left of steering column. | |
| Sensor Module | Behind left side of dash, left of steering column. | |
| Catalytic Converter Temperature Alarm Module/Speaker | Under right side of dash, above kick panel. | |
| Chime Module | Under right side of dash, above glove box. | |
| DRL/Twilight Sentinel Module | Behind left side of dash. | |
| Diagnostic Energy Reserve Module (DERM) | Behind left side of dash, on brake pedal support bracket. | |
| Elec. Brake/Traction Control Module | Behind rear seat, in luggage compartment. | |

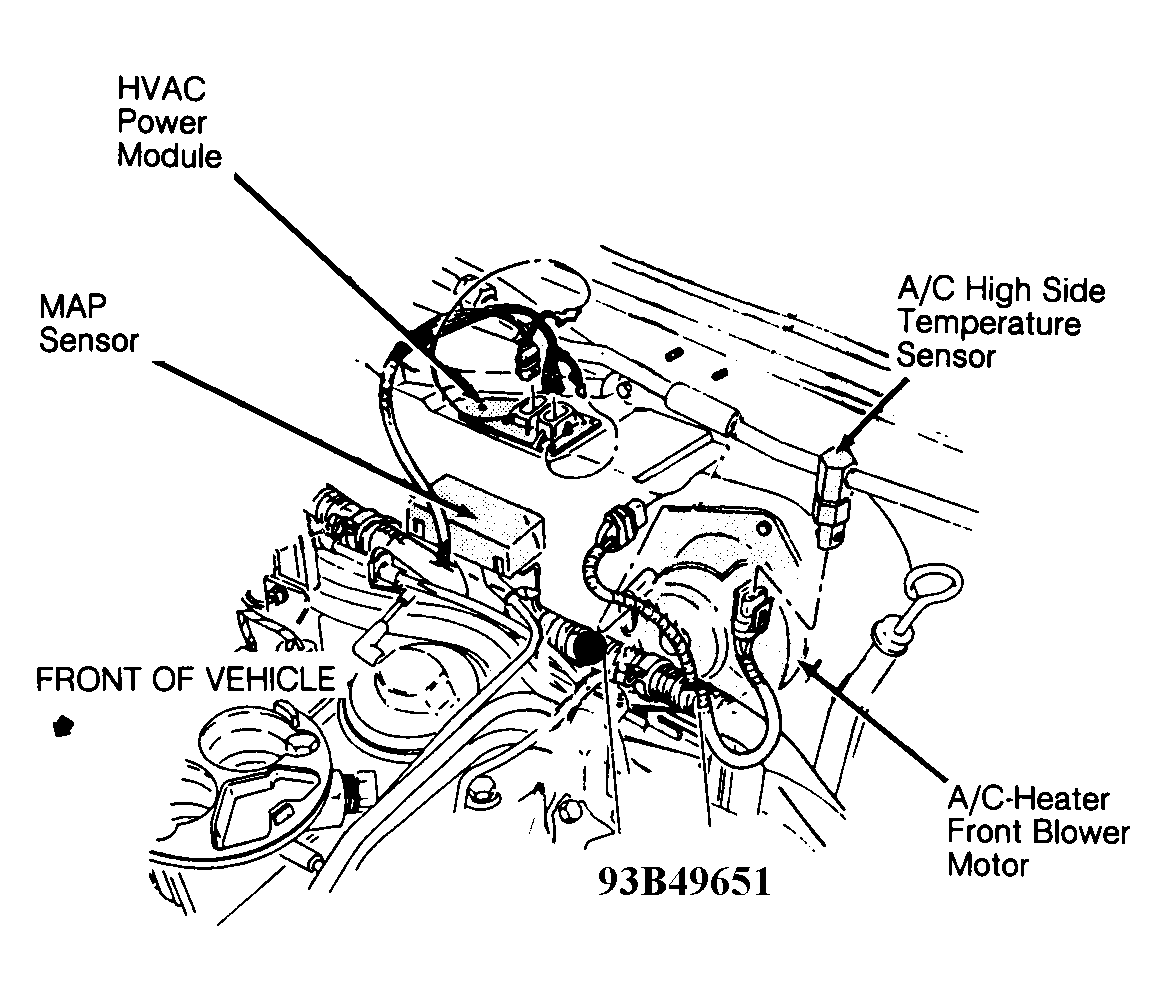

| HVAC Power Module | On center of firewall. See Figure . | |
| HVAC Programmer | Behind right side of dash, near PCM. | |
| Hazard Module | Behind left side of dash, left of steering column. | |
| Headlight Washer Module | Taped to wiring harness, 1" from rear edge of left rocker panel channel. | |
| Heated Seat Relay Modules | Under respective front seats. | |

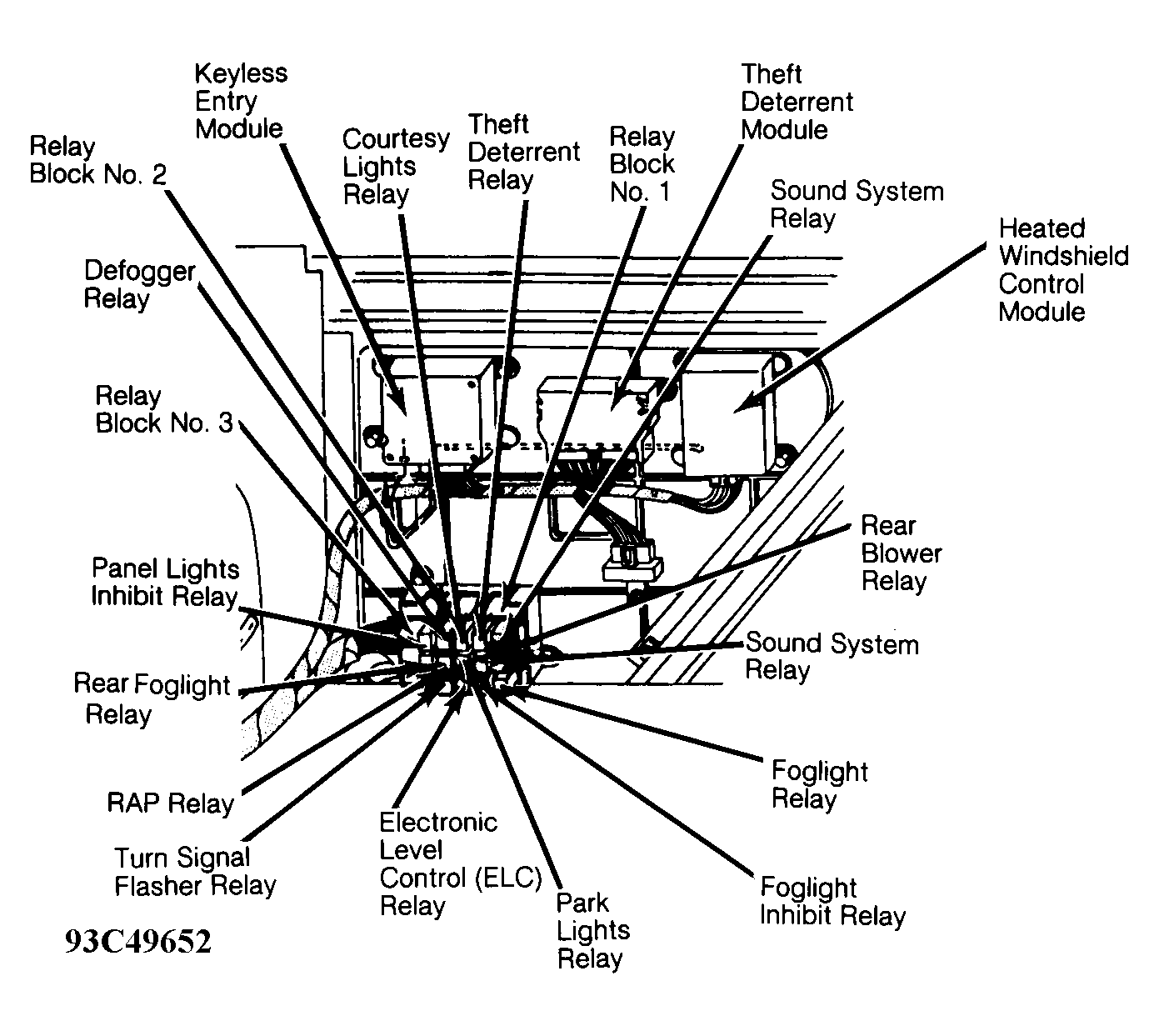

| Heated Windshield Control Module | On left side of luggage compartment. See Figure . | |
| Ignition Control Module | On top right rear of engine. | |
| Keyless Entry Module | On left side of luggage compartment. See Figure . | |
| PASS-Key Decoder Module | On right side of luggage compartment. | |
| Power Window (Express Down) Module | In left door window switch unit. | |
| Powertrain Control Module (PCM) | Above right kick panel. See Figure . | |
| Overspeed Alert Module | Under right side of dash, above kick panel. | |
| RAP/Illuminated Entry Module | On right side of luggage compartment. | |
| Road Sensing Suspension Module | On right side of luggage compartment. | |
| Speed Sensitive Suspension Module | On right side of luggage compartment. | |
| Sun Roof Control Module | On right side of windshield header. | |
| Theft Deterrent Module | On left side of luggage compartment. See Figure . | |
| Turn Signal Flasher Module | Behind left side of dash, left of steering column. | |
| Wiper/Washer Motor Module | On left side of firewall, in engine compartment. | |
